Roughing plane

Application area:

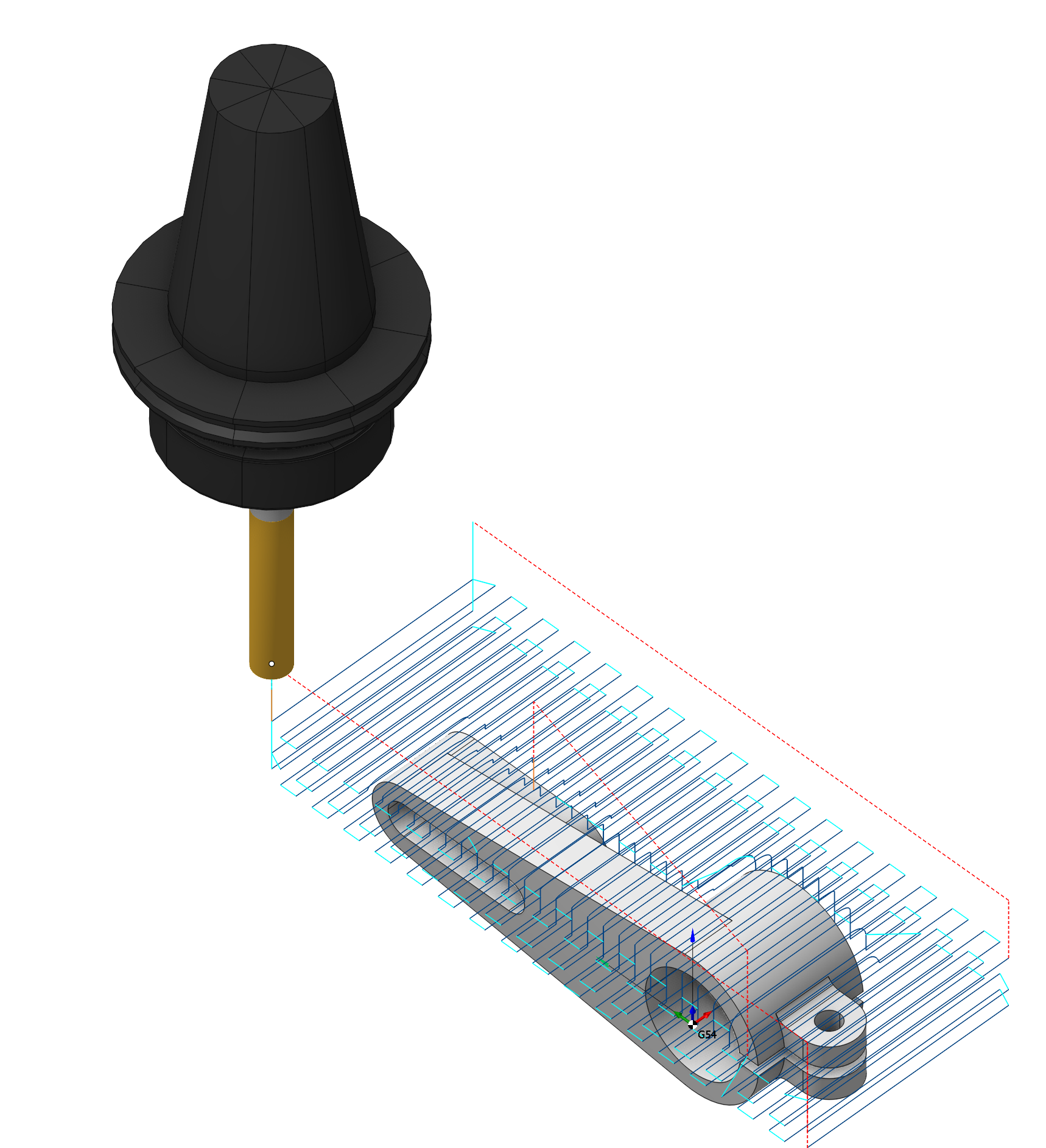

The machining results of the plane roughing operation are usually closer to the source model when compared to the waterline strategy using similar parameters. This operation is used for machining models with significant differences to the defined workpiece model prior to rough machining, and for milling soft materials.

Setup:

The Setup tab is used to configure the primary parameters of the project. This can involve the positioning of the part on the equipment, the coordinate system of the part, and more. Details

Job assignment:

Faces. Select various surfaces of the part as the working task. The system will calculate the trajectory based on the chosen surfaces. Details

Pocket. A typical prismatic or turn-milling part consists of many simple shapes.To simplify this task, we can recognize the parts elements in a 3d model and automatically convert them to basic job assignment items, such as job zones and machining levels. Details

Job Zone. Job zones are used to define the part areas that have to be machined by roughing and finishing milling operations. Details

Restrict Zone. In addition to Job Zones in system you can use Restrict Zones to specify the workpiece areas that have not to be machined in the current operation. Details

Top Level. Specifying the top level by model elements. Details

Bottom Level. Specifying the bottom level by model elements. Details

Properties. Displays the properties of an element. It is possible to add the stock. You can also call this menu by double clicking on an item in the list.

Delete. Removes an item from the list.

Restrictions. It allows you to restrict areas that should not be machined. Details

Strategy:

Step.

The maximum allowed width of cut. This parameter group works similarly to the Plane finishing operation. Details

Depth of cut.

Material removed in one pass along the tool axis between the Top and Bottom levels.

Click here to expand..

Descent. The option allows limiting the downward movement of the tool. Such restrictions are particularly relevant if the tool, due to the specifics of its cutting part or because of the poor machinability of the workpiece, can only engage with the material at a limited angle.

Without checking. The downward movement of the tool inside the material is not being controlled. As a result, the finished part contains imperfections solely due to the geometry of the tool.

Max angle. The tool's movement within the material downwards is performed at an angle no greater than the specified value.

MA - Max angle

Clear shadow. Additionally, the remaining material in the grooves is further processed. This is achieved through reciprocating movements along the path while simultaneously cutting at a specified angle.

Go up only. The tool's downward movement inside the material is completely eliminated. The material remaining in the grooves is not further processed. This method is advisable for convex details. Parts with grooves or pockets require subsequent refinement.

Machining levels.

It defines the range along tool axis for the machining. This parameter group works similarly to the Waterline roughing operation. Details

Milling type

Сan be assigned in almost all operations, except for the curve machining operations. This allows the user to control the required milling type (climb or conventional) during the toolpath calculation process. This parameter group works similarly to the Waterline roughing operation. Details

Corners smoothing.

When there is a sudden change of the tool direction, the milling control performs deceleration before starting the turn, and then accelerates again. This fact can lead to vibrations and high tool and milling machine wear. The problem can be solved if the toolpath has very few or no breaks. For this reason, in the system there is the toolpath smoothing function using the defined radius for machining inner or outer corners of the model.

Trimming.

Allows for the skipping of surfaces not intended for machining and allows for the extension of the toolpath. Some parameter group works similarly to the Plane finishing operation. Details

Parameters:

This tab contains the main parameters for controlling the part, workpiece, fixture and other items, which allow you to change the trajectory. Details

Links/Leads:

In the Links/Leads tab, you define the parameters for rapid movements. These movements include tool approach from the tool change position, engage to the start of the working stroke, retraction after the final cutting motion, transitions between working passes, and return to the tool change point. You can configure the sequence of movements along the coordinates, the trajectory of these motions, and the magnitude of displacements.

Click here to expand..

Сonsists of:

Approach/Return. This group of parameters manages the tool movements from the tool change position to the start of the engage toolpathes, and back. Details.

Safe motions. Defines the type of Safety Surface and the distance from the workpiece to it. This surface facilitates transitions between the processed surfaces or tool paths, and the first stage of approach or return occurs toward it. Details.

Advanced links settings. This group of parameters specifies the features of trajectory formation for primarily five-axis operations, considering optimal movements of rotational axes. Details.

Links. Defines the rules governing Entry/Exit links and links between work moves. Details.

Leads. Allows you to add additional engage and retract to the working moves using their feed. Details.

Distances. Distances required to switch feeds Details.

Feeds/Speeds:

Using this dialogue the user can define the spindle rotation speed; the rapid feed value and the feed values for different areas of the toolpath. Spindle rotation speed can be defined as either the rotations per minute or the cutting speed. The defining value will be underlined. The second value will be recalculated relative to the defining value, with regard to the tool diameter. Details

Transformations:

Parameter's kit of operation, which allow to execute converting of coordinates for calculated within operation the trajectory of the tool. Details

Part:

A Part is a group of geometrical elements that defines the space to check for gouges. Details

Workpiece:

A workpiece model of an operation defines the material to be machined. Details

Fixtures:

As the Fixtures the fixing aids such as chucks, grips, clamps, etc., and the restriction areas of any other nature are usually specified. Details
