Turn take over

Application area:

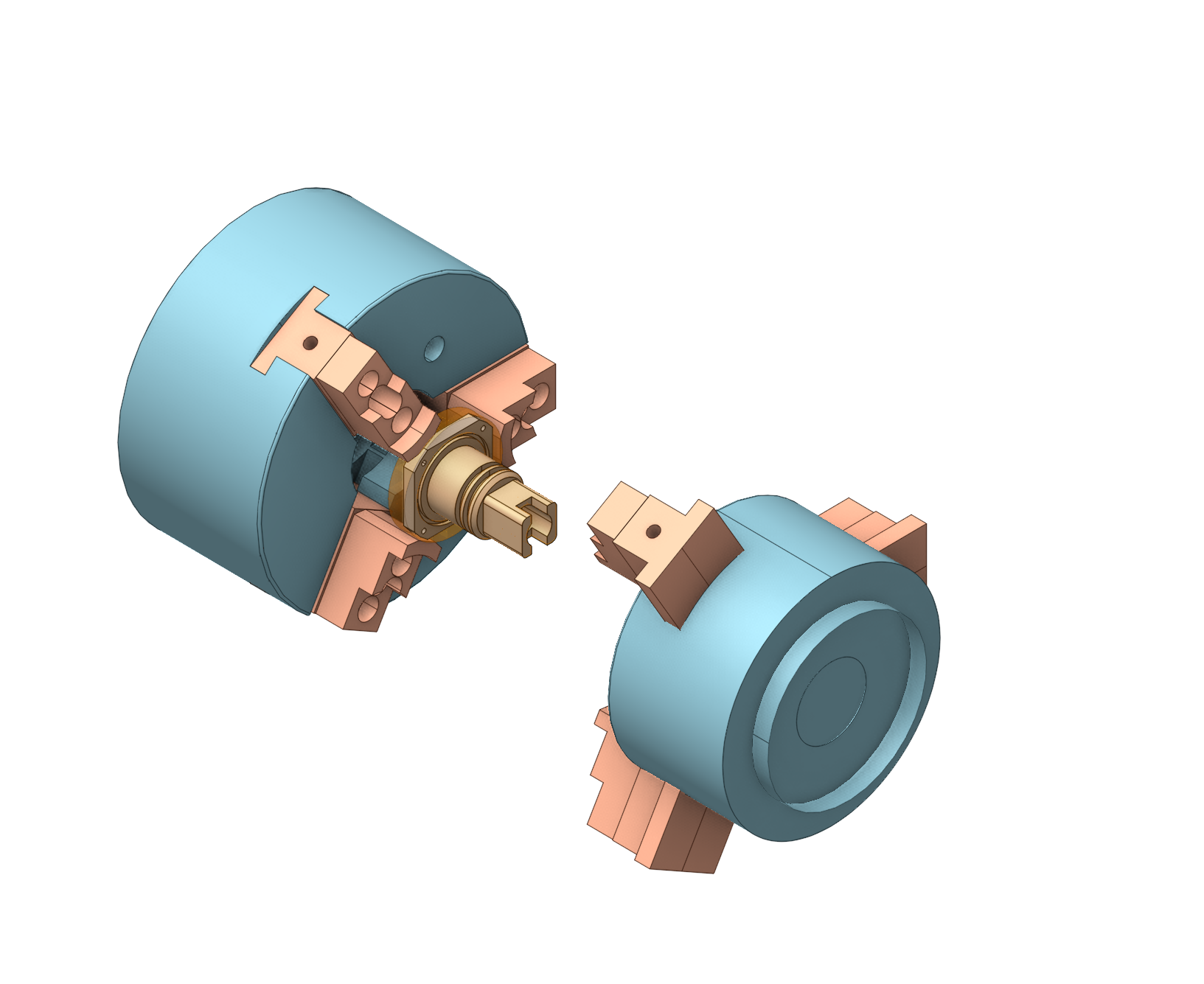

Turn take over is the special kind of pick and place operation designed to use in the lathe or swiss-lathe project template. The main difference of the Turn take over operation from the simple pick and place (Details) is that it takes Workpiece connector and Setup CS automatically from the next part of the project. Also the set of operation parameters is adapted specifically for the lathe or swiss-lathe type of machining.

Setup:

The Setup tab is used to configure the primary parameters of the project. This can involve the positioning of the part on the equipment, the coordinate system of the part, and more. See mor

Strategy:

Pick feed distance.

The length of the movement which is done using the engage feed before picking the part.

Click here to expand..

Return feed distance.

Length of the spindle movement on "Retract" feed after picking the part.

Click here to expand..

Use canned cycle.

Output the operation as a cycle.

Integrate with

Takeover operation will be synchronized with the selected Lathe part-off operation

Physic output.

"Multigoto" or "Goto" commands and coordinates are generated to move the machine axes

Initial clamp(IC)/Final clamp(FC)

The clamping device that initially holds the part. Special CLData commands for clamping/unclamping the device are output automatically

Click here to expand..

IC- Initial clamp FC - Final clamp

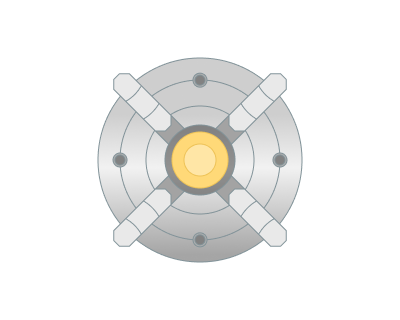

Clamped position. Clamp axis position which corresponds to the Clamped state of the device

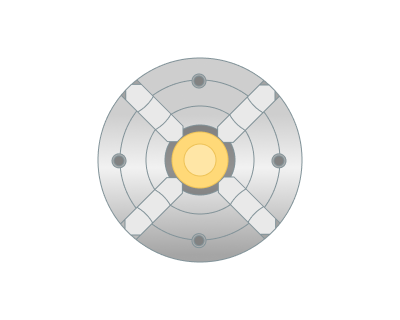

Unclamped position. Clamp axis position which corresponds to the (fully) Unclamped state of the device
