ENCY 3 User Manual
  • ENCY 3 User Manual
v3.1.20
Search Results for

    Show / Hide Table of Contents
    • Introduction to ENCY
      • System requirements
      • Configurations and options
      • Standard package
      • Program installation and launch
      • System files
      • Technical support
    • Brief and to the point
      • Ideology of ENCY
      • Fast familiarization with the system
      • What's new in ENCY 3.0
    • General information
      • Home Page
        • Project library
      • System's main window
        • Application Toolbar
          • Smart Snap
          • Measurement and analysis
          • Autosaves and Project snapshots
          • Project library
          • Machine setup (project template)
          • AI assistant
          • Version info window
        • Graphic window and visualization control
          • Standard views
          • Objects selection mode
          • Window zoom
          • Interactive rotate
          • Interactive pan
          • Interactive zoom in and out
          • Zoom extents
          • Undo view
          • Redo view
          • Section plane
          • Rotation Mode
          • Gimbals
          • Interactive linear axis ruler
        • Work modes
        • Selection filter
        • Visibility panel
        • Geometrical coordinate systems
          • Creation of the coordinate system via dialogue window
          • Smart LCS creation
          • Creation of the coordinate system by the origin point and two leading vectors
          • Creation of the coordinate system by the current view direction
          • Changing properties of an existing coordinate system
        • Machine axes control panel
          • Interactive Machine
        • Graph of the machine axes window
        • Holder occlusion check utility
        • Utilities button of main panel
        • Help button of main panel
        • Process indicator
        • Application events notifications
        • Multiproject interface
      • System settings window
        • Folders tab
        • Measurement units tab
        • Visualization tab
        • Colors tab
        • Import tab
        • Additional tab
        • Machining tab
        • Online features tab
        • Extensions tab
        • PLM connections tab
      • Exchange files
        • Projects files
        • Importable files
        • DXF export
        • Postprocessor tuning files
        • NC program files
        • Interpreter files
        • Machine schema files
        • Encrypted containers .stfc
        • Machine setup files
      • Updating
      • Container manager
      • Licence manager
      • System logs
      • Work with a team in the cloud
    • Geometrical model preparation
      • Geometrical model structure
        • Geometrical objects types
          • Faces, meshes, curves and points
          • Groups (folders)
          • Active folder
          • PMI
        • Geometrical model structure window
        • Object selection
        • Intellectual object selection
        • Geometrical model structure editing
          • Creating a new group
          • Geometrical model structure updating
          • Working with the exchange buffer
      • Geometrical objects import
        • Importing objects from IGES files
          • Requirements for IGES-file
          • Types of importable objects
          • Recommendations on how to adjust IGES-export module in your modeling program
        • Importing objects from STEP files
        • Importing objects from DXF files
        • Importing objects from PostScript files
          • Installing the GhostScript Library
        • Importing objects from STL files
        • Importing objects from PLY files
        • Importing objects from AMF files
        • Importing objects from VRML files
        • Importing objects from 3dm files (Rhinoceros™)
        • Importing objects from Parasolid™ files
        • Importing objects from SolidWorks™ files
        • Importing objects from SolidEdge™ files
        • Importing objects from SGM files
        • Importing objects with CAM system addins
        • Importing objects from 5DC files
        • Addins for CAM system
          • Addin Manager
          • Addin's list
            • Autodesk Inventor™ toolbar & import addin
            • CADbro™ toolbar
            • FreeCAD™ toolbar & import addin
            • Alibre Design™ toolbar & import addin
            • IronCAD™ toolbar
            • NX™ toolbar & import addin
            • Rhinoceros toolbar & import addin
            • SolidEdge™ toolbar & import addin
            • SOLIDWORKS™ toolbar & import addin
            • SpaceClaim™ toolbar & import addin
            • ZW3D™ toolbar & import addin
            • Onshape™ connector
            • CAXA 3D™ toolbar
            • KeyCreator™ toolbar
            • SolidCAM™ toolbar & import addin
          • Associativity for Addin`s
      • Editing geometrical model
        • Geometrical object properties
          • General tab
          • Visual tab
          • Machining tab
          • Parameters tab
        • Changing visual properties
        • Delete
        • Spatial transformations
        • Inversion
        • Surfaces boundary projection
        • Join curves
        • Surface triangulation
        • Creating text
        • Intersect
        • Sew Faces
        • Export of 3D Model
        • Patch hole
        • Extract isolines
        • Simplifying geometrical model
        • Working with splines
        • Extend surface
      • 2D Geometry sketcher
        • Building and editing elements
        • Line
        • Arc
          • Two points and radius
          • Center, starting point and angle
          • By three tangents
          • Edit arc
        • Circle
          • Build Circle with Center and radius. Edit circle
          • Circle by three tangents
        • Rectangle
          • By two points
          • By side and height
          • By center and point
          • Edit rectangle
        • Contour
          • Build by elements
          • By zone or border
          • Edit contour
          • Spline
          • Archimedean spiral
          • Function profile
        • Chamfer and Rounding
        • Dimension
          • Linear dimension
          • Radial dimension
          • Angular dimension
        • Offset
        • Annotations
        • Trim function
        • Split object
        • Additional functions
          • Copy
          • Shift
          • Rotate
          • Mirror
        • Named block
          • Block parameterization
        • Constraints
          • Editing links in a block
        • Drawing example
        • Example of building a drawing using constrains
        • Planes
      • Design (3D Geometry)
        • Main window
        • Design in 2D mode
        • Design in 3D mode
        • Direct Modeling
      • Nesting
    • Creating machining technology
      • Common principles of technology creation
        • Selection of a machine and its parameters definition
        • Defining machining sequence
        • Creating new operation
        • Executing operation
        • Generating NC code
        • Machining report
        • Standard machining sequences
        • Operations setup
          • Geometrical parameters of an operation
          • Defining part, workpiece and fixtures
          • User operations
          • Operation status panel
          • Conversion of arbitrary toolpath to 6D Contour operation
        • Tool path template
          • Macro commands in the tool path template
        • Auxiliary operation
        • Collision Detection in Background Simulation
          • List of Operation Statuses
        • Editing of the Collisions Ignore List
        • Toolpath recalculation control
        • User defaults in inspector
      • Structure of the machining mode
        • Machine setup panel
          • 3D Tool Compensation
        • Setup panel
          • Positioning of part at machine (Workpiece setup)
          • Workpiece coordinate system (G54 - G59)
          • Operation local coordinate system
          • Tool orientation
        • Job assignment
          • Base surface
          • Faces
          • Curve
          • Job zones
          • Top and bottom levels
          • Pocket feature
          • Restrict zones
          • Tabs
          • Job assignment for engraving and pocketing operations
          • Job assignment for hole machining operation
            • Defining holes by coordinates
            • Defining holes by using a geometrical point object
            • Automatic hole recognition
            • Creating hole pattern
            • Holes sorting
          • Recognize features
          • Restrictions
        • Operation parameters
          • Check Holder (Avoid collisions)
          • Layer time
          • Power
          • Use new calculation method for Rotary roughing/finishing
          • Weaving
        • Links/Leads
          • Approach/Return
            • Approach and return rules
              • Approach/return rules edit window
              • Machine's approach/return list
            • Tool change position
          • Safe Motions
          • Advanced Links Settings
          • Links
            • Links based on the Roughing waterline
            • Links for 3D/5D advanced operations
            • Links for 3D operations
            • Links for countouring operations
            • Links in сladding operations
            • Links in drilling operations
          • Leads
            • Leads based on the Roughing waterline
            • Leads based on the Face Milling
            • Leads for 3D operations
            • Leads for 3D/5D advanced operations
            • Leads for countouring operations
            • Leads for сladding operations
          • Distances
            • Distance for 3D operations
            • Distances based on the Face Milling
            • Distances based on the Roughing waterline
            • Distances for 3D/5D advanced operations
            • Distances in drilling operations
          • Allow plunges
        • Transformation
          • Cylindrical interpolation
          • Polar interpolation
        • Feeds/Speeds
          • Corner control
          • Feeds/Speeds (Calculate)
        • Holes (Drill points)
        • Fixtures
      • Structure group of operations
        • Setup stage
        • Part (group)
        • Copy of part
        • Multiply Group
      • Sequencing mode
      • List of types of machining operations
      • Basic technology terms
        • Group
        • Part
        • Workpiece
        • Machining result
        • Tool
          • Mill tool
          • Lathe tool
          • Tool overhang
        • Stock
        • Relief Angle
        • Lateral Angle
        • Adaptive Step (Selection step by scallop height)
        • Frontal angle
        • Machining methods in drive operations
        • Trohoidal machining (Equidistant legacy)
        • Tool magazine
        • Tool compensation in mill operations
      • Mill machining
        • Types of machining operations
        • Holes
          • Hole machining
          • FBM Mill
            • FBM Machining Procedure
            • FBM Procedure Library UI
            • Feature Tree UI
            • Assigning procedures to features UI
            • Procedure Editing UI
            • Operations generation parameters
            • FBM Mill operation parameters
        • 2D
          • Pocketing
          • Engraving
          • 2D contouring
        • Basic
          • Face milling
          • Roughing waterline
            • Plunge roughing
          • Finishing waterline
          • Roughing plane
          • 2.5D contouring
          • Flat land
          • 3D contouring
        • Advanced
          • Combo finish
          • Surfacing
          • Scallop
          • Helical
          • Morph
          • Undercut waterline
          • Swarf
          • 5D Roughing waterline
          • 5D by meshes
          • 6D Contouring
            • Parameters of Drive Faces
            • Parameters of Curves
            • 5-axis milling of the ruled surfaces by the flank of the mill
            • Feeds control feature
            • Using custom vectors feature
          • Contour polishing
        • Rotary
          • Rotary waterline
          • Rotary roughing
          • Rotary finishing
          • Morph 4D
          • 4D Surfacing
          • 4D Contouring
        • Turbomachinery Milling
          • Impeller Machining
          • Blade Machining
        • Rest machining
          • Corners cleanup
          • Pencil
          • Chamfering
        • High performance cutting (HPC)
        • Operations setup
          • Using design and machining features in Job Assignment
            • Creating operations for selected features
            • Spline curves drawing
          • Job assignment for the 2.5D machining operations
          • Milling by axis count
            • Operations for 2/2.5-axes milling
              • 2.5D machining operations
            • Operations for the 3-axes milling
            • Operations for 4-axes and 5-axes milling
              • 4-axis milling with engraving and pocketing operations
              • 5 axis machining
              • Indexed 5-axes milling
              • Rotary machining using cylindrical interpolation
              • 5 axis tool path conversion
              • Axes map for 5-axis machines
        • Adaptive
        • Pocketing strategies
      • Lathe machining
        • Types of lathe machining operations
        • Lathe machining operations
          • Lathe facing
          • OD Roughing and ID Roughing
          • OD Finishing and ID Finishing
          • OD Grooving, ID Grooving and Face grooving
          • OD Threading and ID Threading
          • Profile Threading
          • Lathe part-off
          • Lathe hole machining
          • OD Adaptive turning
          • Part-off with takeover
        • Lathe cycles
          • Profile cycle
          • Offset Roughing
          • Offset cycle (ISO G73)
          • Roughing
          • Roughing cycle
          • Facing
          • Grooving cycle
          • Slotting cycle
          • Thread cycles
            • Standard form thread
            • Threading cycle types
          • Zigzag cycle
          • 4-axis turning
          • Parting-off cycle
          • Peck groving/drillling cycle
        • Operations setup
          • Job assignment of the lathe operations
            • Job assignment element parameters
            • Contour editing modes
          • Cutting conditions of lathe operations
          • Job assignment for hole machining operation
            • Defining holes by coordinates
            • Defining holes by using a geometrical point object
            • Automatic hole recognition
            • Creating hole pattern
      • Mill-turn Machining
        • Lathe-milling machines types
        • Setting-up tooling
        • Positioning of part
        • Tool change position
        • Positioning of tool
        • Obligatory testings before the final generation
        • Counter spindle machining
        • U-axis turning
      • Machining on cutting machines
        • Jet cutting
        • 4D Jet cutting
        • Jet cutting 5D
        • Operations setup
          • Jet cutting job assignment
          • Job assignment of EDM and Jet cutting 4D operations
            • 2D job assignment item properties
            • 4D job assignment item properties
            • Synchronization lines
            • Approaches/returns
            • Bridges
            • Multiselect feature
            • Wire EDM feature
          • Machining conditions of EDM and Jet cutting 4D operations
          • Strategy of EDM and Jet cutting 4D operations
      • Knife cutting
        • Cutting tool - "knife"
        • 2D knife cutting
        • 6D Knife cutting
        • Knife corner retraction
      • Wire EDM machining
        • Wire EDM machining operations
          • Wire EDM 2d Contouring
          • Wire EDM 4d Contouring
          • Wire EDM coreless pocketing
            • Pocketing parameters
            • Wire thread points
        • Operations setup
          • Job assignment of EDM and Jet cutting 4D operations
            • 2D job assignment item properties
            • 4D job assignment item properties
            • Approaches/returns
            • Bridges
            • Multiselect feature
            • Synchronization lines
            • Wire EDM feature
          • Machining conditions of EDM and Jet cutting 4D operations
          • Strategy of EDM and Jet cutting 4D operations
      • Machining on industrial robots
        • Setting the coordinate system of the tool and the workpiece
        • Programming the robot's 6th axis
        • Programming the rails position
        • Programming the rotary table
        • Robot axes map
        • Programming robot's transitions (obsolete method)
          • The planning of the links
      • Multi Task Machining
        • Submachine definition in the machine schemas
        • Swiss lathes programming
        • Automatic insertion of wait labels
      • Move part operations
        • Machine requirements for part moving operations
        • Clamp devices control
        • Pick-and-place
          • Point Pick-and-Place
        • Turn take over
          • Phase synchronization in Turn take over
        • Sub spindle working
        • Bar feeding
      • Welding
        • Point welding
        • Welding 5D and Welding 6D
      • Additive manufacturing
        • Area cladding
        • Curve cladding
        • Cladding 3D
        • Cladding 5D operation
        • Planar slicing
        • Non-planar slicing
        • Direct cladding
      • Disc tool machining
        • Disc tool
        • Disc cutting 2D
        • Disc cutting 6D
        • Disc roughing
      • Probing
        • Creating own probing cycles (templates)
        • Types of measuring cycles
        • Use of prepared measuring cycles
        • Probing templates window
      • Spray painting
      • Legacy operations
        • 2.5D chamfer machining operation
        • 2.5D cover machining operation
        • 2.5D pocketing operation
        • 2.5D wall machining operation
        • Combined operation (waterline-drive)
        • Drive finishing operation
        • Drive roughing operation
        • Saw operation
        • Finishing plane
        • Optimized plane
        • Complex
    • Simulation
      • Tool path motion
        • The structure of the tool path
        • The list of the basic CL-data commands
        • The selection of the CL-data commands from the graphical view
        • Tool path editing
        • Tool path spatial transformations
      • Controlling simulation process
        • Tool motion controlling
        • Tool path errors detected by simulation
        • Feed rates optimization
        • Assigning workpiece parameters
        • Turbo simulation mode
        • Export simulation result as model
        • Delete chips function
      • Simulation of machining by NC program
        • G-code based program simulation
        • Creating your own interpreter
      • Painting simulation
      • Solid Simulation
    • Machining tool features
      • Tools window
        • Manage libraries
        • Milling tool editing
        • Turn tool editing
        • Mill holder selection window
      • Project tool list
      • Creating shaped tools
      • Holders (*.osd) window
      • Machining tools import API
      • Tool assemblies
        • Adapting a machine for advanced tools mode.
        • Component libraries
        • Building a tool assembly
    • Extension and integration possibilities
      • Scripts in ENCY
        • Brief Scripts in ENCY
        • Scripts IDE
        • Application Programming Interface
        • Scripted operation
        • Operation with scripted events
        • Scripted ENCY launch
      • PLMIntegrations
        • Authorizing an External System in the CAM Main Window
        • Importing a Geometry Model from an External System
        • Installing and Configuring PLM Integration Modules
        • Loading and Saving Machines to an External System
        • Loading and Saving Postprocessors to an External System
        • Loading and Saving Tools to an External System
        • Opening and Saving Projects to an External System
      • Extensions of the CAM system
        • Installing extensions from a file
        • Installing extensions using the command line
      • Macro
        • Recording a macro
        • Editing steps
        • Saving a macro
        • Running a macro
        • Editing the code
      • Extension Store
    • Program's licensed modules
      • Adaptive
      • Robot +
      • Robot Mill
      • Advanced multi axis control
      • Operations
        • Sawing
        • 5D cutting
        • Welding
        • Cladding
        • Knife
        • G-code based, G-code based lathe
          • Job assignment for G-code based operation, G-code based lathe operation
            • Keyboard shortcuts for working with NC text
          • Rapid feed
      • Operations which requires adaptation
        • Heat Treatment
        • Welding
        • Cladding
        • Jet Cutting
      • Teamcenter Integration Module
    • Appendix
      • Operations matrix
      • CAM system features matrix
      • List of interpreters
      • Getting trial license
      • Bug report best practice
      • Troubleshooting with authorization in the license manager
      • Additional software and installation changes

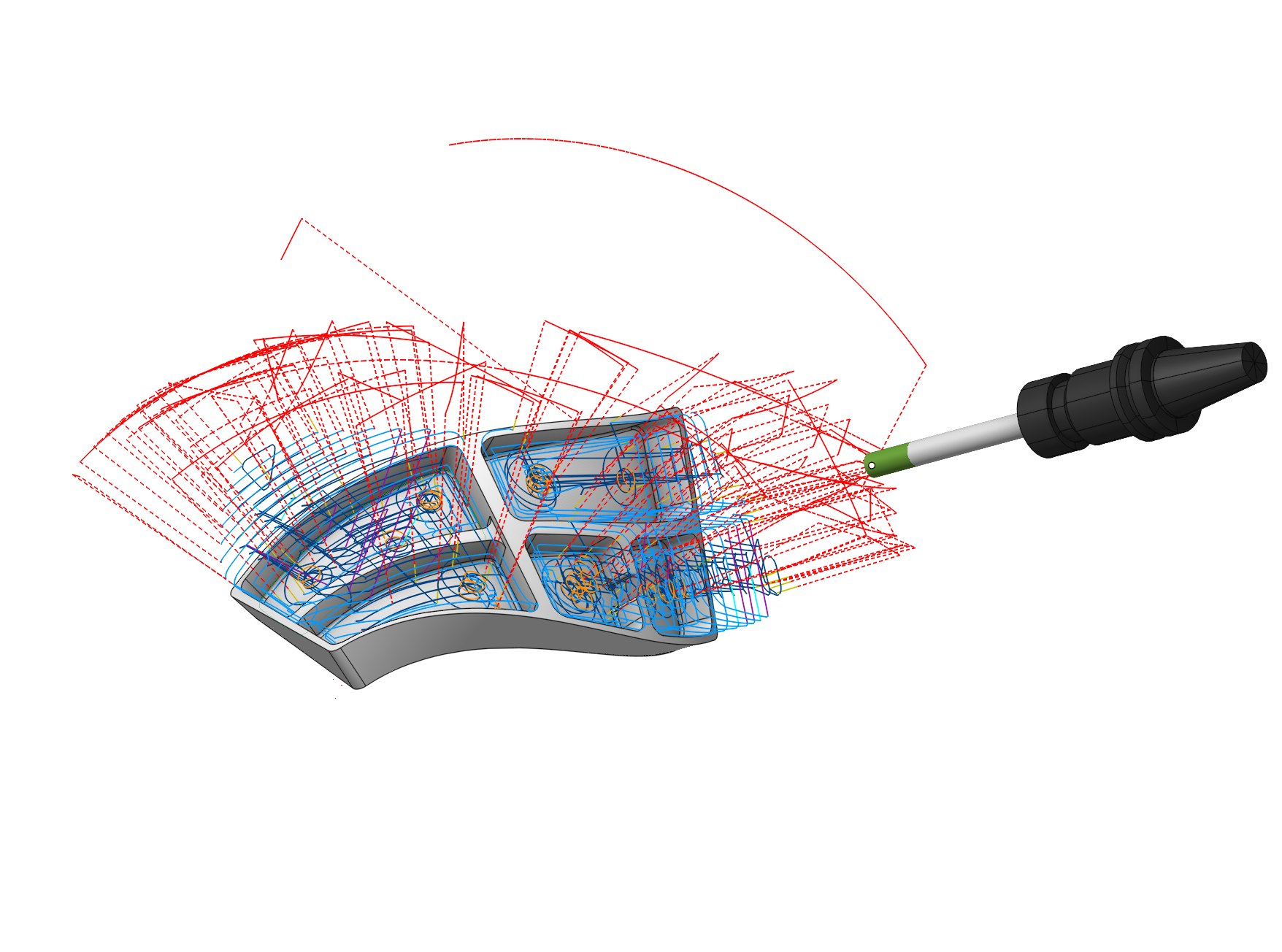

    5D Roughing waterline

    images/download/attachments/157864544/image2024-3-18_12-36-4.png

    Application area:

    Specialized processing for pockets with curved bottoms, based on the Waterline operation.

    Job assignment:

    Floor surfaces. Control surface. Typically defined by the pocket bottom.

    Job Zone curve. Job zones are used to define the part areas that have to be machined by roughing and finishing milling operations. In this operation, only a closed work zone is applicable. Details

    Properties. Displays the properties of an element. It is possible to add the stock. You can also call this menu by double clicking on an item in the list.

    Delete. Removes an item from the list.

    Restrictions. It allows you to restrict areas that should not be machined. Details

    Strategy:

    Strategy.

    This parameter allows the user to achieve a toolpath that appears adaptive or equidistant when performing pocketing operations. This parameter group works similarly to the Waterline roughing operation. Details

    Machining levels.

    It defines the range along tool axis for the machining.

    Click here to expand..

    Auto top level. If the flag is set, the upper level is automatically calculated based on the blank.

    images/download/attachments/157864544/Auto_top_level_%28on%295D.png

    Some parameter group works similarly to the Waterline roughing operation. Details

    Face side.

    Determines the machining direction from the bottom surface of the pocket.

    Click here to expand..

    Front. The tool can only process from the side with the positive direction of the surface normal vector.

    images/download/attachments/157864544/Face_side_%28Front%29.png

    Back. The tool can only perform processing from the side opposite to the surface normal vector.

    images/download/attachments/157864544/Face_side_%28Back%29.png

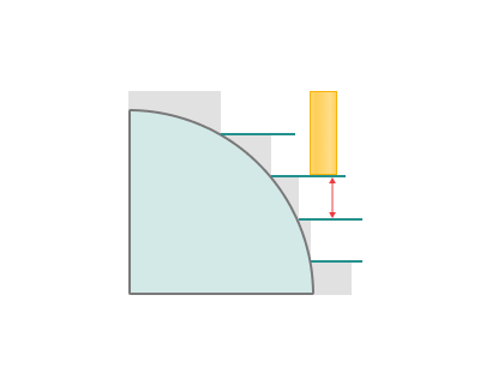

    Depth Step.

    Material removed in one pass along the tool axis between the Top and Bottom levels.

    Click here to expand..

    images/download/attachments/157864544/image2023-12-19_15-34-39.png

    Milling type.

    Сan be assigned in almost all operations, except for the curve machining operations. This allows the user to control the required milling type (climb or conventional) during the toolpath calculation process. This parameter group works similarly to the Waterline roughing operation. Details

    Parameters:

    This tab contains the main parameters for controlling the part, workpiece, fixture and other items, which allow you to change the trajectory. Details

    Links/Leads:

    In the Links/Leads tab, you define the parameters for rapid movements. These movements include tool approach from the tool change position, engage to the start of the working stroke, retraction after the final cutting motion, transitions between working passes, and return to the tool change point. You can configure the sequence of movements along the coordinates, the trajectory of these motions, and the magnitude of displacements.

    Click here to expand..

    Сonsists of:

    Approach/Return. This group of parameters manages the tool movements from the tool change position to the start of the engage toolpathes, and back. Details.

    Safe motions. Defines the type of Safety Surface and the distance from the workpiece to it. This surface facilitates transitions between the processed surfaces or tool paths, and the first stage of approach or return occurs toward it. Details.

    Links. Defines the rules governing Entry/Exit links and links between work moves. Details.

    Allow plunges. Enabling plunges allows machining of closed pockets. When CAM software encounters a closed pocket that can not be machined from the outside, it forms a Plunge move Details.

    Distances. Distances required to switch feeds Details.

    Feeds/Speeds:

    Using this dialogue the user can define the spindle rotation speed; the rapid feed value and the feed values for different areas of the toolpath. Spindle rotation speed can be defined as either the rotations per minute or the cutting speed. The defining value will be underlined. The second value will be recalculated relative to the defining value, with regard to the tool diameter. Details

    Transformations:

    Parameter's kit of operation, which allow to execute converting of coordinates for calculated within operation the trajectory of the tool. Details

    Part:

    A Part is a group of geometrical elements that defines the space to check for gouges. Details

    Workpiece:

    A workpiece model of an operation defines the material to be machined. Details

    Fixtures:

    As the Fixtures the fixing aids such as chucks, grips, clamps, etc., and the restriction areas of any other nature are usually specified. Details
