Internal rectangle probing parameters

images/download/attachments/148776094/image2022-4-5_18-44-27.png images/download/attachments/148776094/image2022-4-5_18-44-49.png

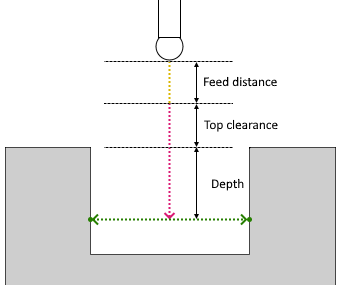

Internal rectangle probing consist of the following steps:

  1. I f the <Top clearance> parameter is checked:

    1. T he tool moves to the distance specified in the < Feed distance > and approaches the starting point of the <Top clearance> position. The movement is executed at "Approach feed";

    2. T he tool moves to the distance specified in the <Top clearance > plus < Depth > value and approaches the center of sides (starting point of cycle) . The movement is executed at "Long link feed" ;

  2. I f the <Top clearance> parameter is unchecked:

    1. T he tool moves to the distance specified in the <Feed distance > and approaches the center of sides (starting point of cycle) according to depth . Moving at "Approach feed" ;

  3. The tool approaches the first touch point (m oving at "Work feed" ) along its inverted <Target vector> and then returns (m oving at "Long link feed" ) to the center point. This action is repeated 3 times for each touch points;

  4. I f the <Top clearance> parameter is checked: t he tool moves up a distance equal to the < Top clearance > value + < Depth > value. Moving at "Long link feed" ;

  5. T he tool retracts a distance to the <Feed distance > position. Moving at "Return feed" .

Parameters:

CLDArray

Type

Description

CmdPrm.Int[-1]

Integer

Probing cycle type: Internal rectangle probing value = 6

CmdPrm.Int[-2]

Integer

SubCode of cycle specified in " SubCode for postprocessor " property on the <Job Assignment> tab

CmdPrm.Flt[-50]

Double

Feed distance, distance to start position of cycle

CmdPrm.Flt[-51]

Double

Depth, distance from top side to center of touch points

CmdPrm.Flt[-53]

Double

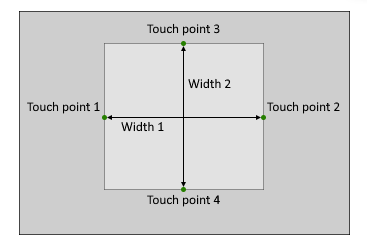

Width 1, distance from Touch point 1 to Touch point 2

CmdPrm.Flt[-54]

Double

Width 2, distance from Touch point 3 to Touch point 4

CmdPrm.Flt[-55]

Double

Top clearance, distance from top side

CmdPrm.Flt[-100]

Double

First touch point value along X-axis

CmdPrm. Flt [-101]

Double

First t ouch point value along Y-axis

CmdPrm. Flt [-102]

Double

First t ouch point value along Z-axis

CmdPrm.Flt[-103]

Double

First target vector value along X-axis

CmdPrm. Flt [-104]

Double

First target vector value along Y-axis

CmdPrm. Flt [-105]

Double

First target vector value along Z-axis

CmdPrm.Flt[-106]

Double

Second touch point value along X-axis

CmdPrm. Flt [-107]

Double

Second t ouch point value along Y-axis

CmdPrm. Flt [-108]

Double

Second t ouch point value along Z-axis

CmdPrm.Flt[-109]

Double

Second target vector value along X-axis

CmdPrm. Flt [-110]

Double

Second target vector value along Y-axis

CmdPrm. Flt [-111]

Double

Second target vector value along Z-axis

CmdPrm.Flt[-112]

Double

Third touch point value along X-axis

CmdPrm. Flt [-113]

Double

Third t ouch point value along Y-axis

CmdPrm. Flt [-114]

Double

Third t ouch point value along Z-axis

CmdPrm.Flt[-115]

Double

Third target vector value along X-axis

CmdPrm. Flt [-116]

Double

Third target vector value along Y-axis

CmdPrm. Flt [-117]

Double

Third target vector value along Z-axis

CmdPrm.Flt[-118]

Double

Fourth touch point value along X-axis

CmdPrm. Flt [-119]

Double

Fourth t ouch point value along Y-axis

CmdPrm. Flt [-120]

Double

Fourth t ouch point value along Z-axis

CmdPrm.Flt[-121]

Double

Fourth target vector value along X-axis

CmdPrm. Flt [-122]

Double

Fourth target vector value along Y-axis

CmdPrm. Flt [-123]

Double

Fourth target vector value along Z-axis

CmdPrm.Flt[-200]

Double

First original touch point value along X-axis specified in the Job Assignment

CmdPrm. Flt [-201]

Double

First original touch point value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-202]

Double

First original touch point value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-203]

Double

First original target vector value along X-axis specified in the Job Assignment

CmdPrm. Flt [-204]

Double

First original target vector value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-205]

Double

First original target vector value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-206]

Double

Second original touch point value along X-axis specified in the Job Assignment

CmdPrm. Flt [-207]

Double

Second original touch point value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-208]

Double

Second original touch point value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-209]

Double

Second original target vector value along X-axis specified in the Job Assignment

CmdPrm. Flt [-210]

Double

Second original target vector value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-211]

Double

Second original target vector value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-212]

Double

Third original touch point value along X-axis specified in the Job Assignment

CmdPrm. Flt [-213]

Double

Third original touch point value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-214]

Double

Third original touch point value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-215]

Double

Third original target vector value along X-axis specified in the Job Assignment

CmdPrm. Flt [-216]

Double

Third original target vector value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-217]

Double

Third original target vector value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-218]

Double

Fourth original touch point value along X-axis specified in the Job Assignment

CmdPrm. Flt [-219]

Double

Fourth original touch point value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-220]

Double

Fourth original touch point value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-221]

Double

Fourth original target vector value along X-axis specified in the Job Assignment

CmdPrm. Flt [-222]

Double

Fourth original target vector value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-223]

Double

Fourth original target vector value along Z-axis specified in the Job Assignment
