Internal rectangle probing protected parameters

images/download/attachments/148776098/image2022-4-5_19-21-28.png images/download/attachments/148776098/image2022-4-5_19-22-0.png

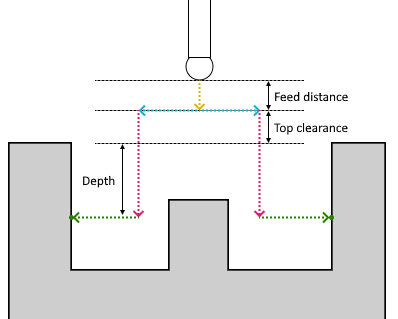

Internal rectangle probing protected consist of the following steps:

  1. The tool moves to the distance specified in the < Feed distance > and approaches the starting position of the cycle. The movement is executed at "Approach feed";

  2. The tool approaches a point remote from the first touch point along its <Target vector> at the <Side clearance 1> distance but elevated at the < Top clearance > value + < Depth > value . The movement is executed at "Long link feed" ;

  3. The tool is lowered by a distance equal to <Top clearance> value + <Depth> value . Moving at "Long link feed" ;

  4. T he tool approaches the first touch point (m oving at "Work feed" ) and then returns (m oving at "Long link feed" ) to previous position;

  5. The tool is lifted up by a distance equal to < Top clearance > value + < Depth > value . The movement is executed at "Long link feed" ;

  6. The tool returns to the starting position;

  7. Steps 2-6 are repeated 3 times for each touch points;

  8. The tool is lifted up by a distance equal to <Feed distance >.

Parameters:

CLDArray

Type

Description

CmdPrm.Int[-1]

Integer

Probing cycle type: Internal rectangle probing protected value = 7

CmdPrm.Int[-2]

Integer

SubCode of cycle specified in " SubCode for postprocessor " property on the <Job Assignment> tab

CmdPrm.Flt[-50]

Double

Feed distance, distance to start position of cycle

CmdPrm.Flt[-51]

Double

Depth, distance from top side to center of touch points

CmdPrm.Flt[-53]

Double

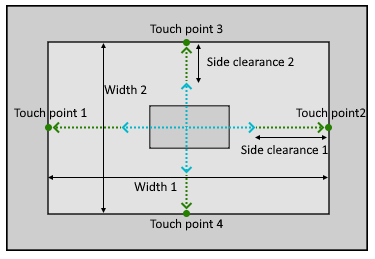

Width 1, distance from Touch point 1 to Touch point 2

CmdPrm.Flt[-54]

Double

Width 2, distance from Touch point 3 to Touch point 4

CmdPrm.Flt[-55]

Double

Top clearance, distance from top side

CmdPrm.Flt[-56]

Double

Side clearance 1, approach distance to touch poin t 1/ touch poin t 2

CmdPrm.Flt[-57]

Double

Side clearance 2, approach distance to touch poin t 3/ touch poin t 4

CmdPrm.Flt[-100]

Double

First touch point value along X-axis

CmdPrm. Flt [-101]

Double

First t ouch point value along Y-axis

CmdPrm. Flt [-102]

Double

First t ouch point value along Z-axis

CmdPrm.Flt[-103]

Double

First target vector value along X-axis

CmdPrm. Flt [-104]

Double

First target vector value along Y-axis

CmdPrm. Flt [-105]

Double

First target vector value along Z-axis

CmdPrm.Flt[-106]

Double

Second touch point value along X-axis

CmdPrm. Flt [-107]

Double

Second t ouch point value along Y-axis

CmdPrm. Flt [-108]

Double

Second t ouch point value along Z-axis

CmdPrm.Flt[-109]

Double

Second target vector value along X-axis

CmdPrm. Flt [-110]

Double

Second target vector value along Y-axis

CmdPrm. Flt [-111]

Double

Second target vector value along Z-axis

CmdPrm.Flt[-112]

Double

Third touch point value along X-axis

CmdPrm. Flt [-113]

Double

Third t ouch point value along Y-axis

CmdPrm. Flt [-114]

Double

Third t ouch point value along Z-axis

CmdPrm.Flt[-115]

Double

Third target vector value along X-axis

CmdPrm. Flt [-116]

Double

Third target vector value along Y-axis

CmdPrm. Flt [-117]

Double

Third target vector value along Z-axis

CmdPrm.Flt[-118]

Double

Fourth touch point value along X-axis

CmdPrm. Flt [-119]

Double

Fourth t ouch point value along Y-axis

CmdPrm. Flt [-120]

Double

Fourth t ouch point value along Z-axis

CmdPrm.Flt[-121]

Double

Fourth target vector value along X-axis

CmdPrm. Flt [-122]

Double

Fourth target vector value along Y-axis

CmdPrm. Flt [-123]

Double

Fourth target vector value along Z-axis

CmdPrm.Flt[-200]

Double

First original touch point value along X-axis specified in the Job Assignment

CmdPrm. Flt [-201]

Double

First original touch point value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-202]

Double

First original touch point value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-203]

Double

First original target vector value along X-axis specified in the Job Assignment

CmdPrm. Flt [-204]

Double

First original target vector value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-205]

Double

First original target vector value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-206]

Double

Second original touch point value along X-axis specified in the Job Assignment

CmdPrm. Flt [-207]

Double

Second original touch point value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-208]

Double

Second original touch point value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-209]

Double

Second original target vector value along X-axis specified in the Job Assignment

CmdPrm. Flt [-210]

Double

Second original target vector value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-211]

Double

Second original target vector value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-212]

Double

Third original touch point value along X-axis specified in the Job Assignment

CmdPrm. Flt [-213]

Double

Third original touch point value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-214]

Double

Third original touch point value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-215]

Double

Third original target vector value along X-axis specified in the Job Assignment

CmdPrm. Flt [-216]

Double

Third original target vector value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-217]

Double

Third original target vector value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-218]

Double

Fourth original touch point value along X-axis specified in the Job Assignment

CmdPrm. Flt [-219]

Double

Fourth original touch point value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-220]

Double

Fourth original touch point value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-221]

Double

Fourth original target vector value along X-axis specified in the Job Assignment

CmdPrm. Flt [-222]

Double

Fourth original target vector value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-223]

Double

Fourth original target vector value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-66]

Integer

Compensate dimensions, retrurn values: 0 - Off, 1 - On
