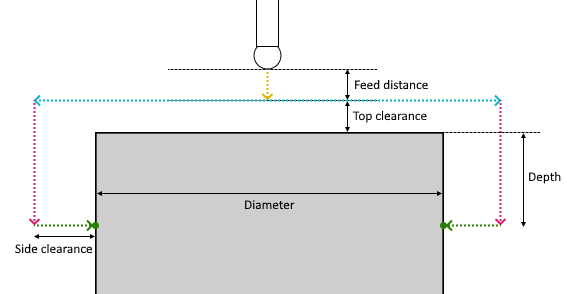

Boss probing parameters

images/download/attachments/148776091/image2022-4-5_18-29-48.png

Boss probing consist of the following steps:

  1. The tool moves the distance specified in the < Feed distance > and approaches the starting position of the cycle. The movement is executed at "Approach feed";

  2. The tool approaches a point remote from the first touch point along its <Target vector> at the <Side clearance> distance but elevated at the < Top clearance > value + < Depth > value . The movement is executed at "Long link feed" ;

  3. The tool is lowered by a distance equal to <Top clearance> value + <Depth> value . The movement is executed at "Long link feed" ;

  4. T he tool approaches the first touch point (m oving at "Work feed" ) and then returns (m oving at "Long link feed" ) to previous position;

  5. The tool is lifted up by a distance equal to < Top clearance > value + < Depth > value . The movement is executed at "Long link feed" ;

  6. The tool returns to the starting position;

  7. Steps 2-6 are repeated as many times as there are touch points for the cycle;

  8. The tool is lifted up by a distance equal to <Feed distance >.

Parameters:

CLDArray

Type

Description

CmdPrm.Int[-1]

Integer

Probing cycle type: Boss probing value = 5

CmdPrm.Int[-2]

Integer

SubCode of cycle specified in " SubCode for postprocessor " property on the <Job Assignment> tab

CmdPrm.Flt[-50]

Double

Feed distance, distance to start position of cycle

CmdPrm.Flt[-51]

Double

Depth, distance from top side to center of touch points

CmdPrm.Flt[-52]

Double

Diameter of measured boss

CmdPrm.Flt[-55]

Double

Top clearance, distance from top side

CmdPrm.Flt[-56]

Double

Side clearance, approach distance to touch poin t

CmdPrm.Int[-59]

Integer

Cycle variant. 0 - rectangular mode, 1 - angular mode

CmdPrm.Flt[-60]

Double

Start angle (for cycle variant = 1). Starting angle of touch points

CmdPrm.Flt[-61]

Double

Angular step (for cycle variant = 1). R adial distance between touch points

CmdPrm.Int[-62]

Integer

Step count (for cycle variant = 1). Count of touch points

CmdPrm.Flt[-100]

Double

First touch point value along X-axis

CmdPrm. Flt [-101]

Double

First t ouch point value along Y-axis

CmdPrm. Flt [-102]

Double

First t ouch point value along Z-axis

CmdPrm.Flt[-103]

Double

First target vector value along X-axis

CmdPrm. Flt [-104]

Double

First target vector value along Y-axis

CmdPrm. Flt [-105]

Double

First target vector value along Z-axis

CmdPrm.Flt[-100-((N-1)*6)]

Double

Other touch point value along X-axis. N - number of touch point

CmdPrm.Flt[-101-((N-1)*6)]

Double

Other touch point value along Y-axis. N - number of touch point

CmdPrm.Flt[-102-((N-1)*6)]

Double

Other touch point value along Z-axis. N - number of touch point

CmdPrm.Flt[-103-((N-1)*6)]

Double

Other target vector value along X-axis . N - number of touch point

CmdPrm.Flt[-104-((N-1)*6)]

Double

Other target vector value along Y-axis . N - number of touch point

CmdPrm.Flt[-105-((N-1)*6)]

Double

Other target vector value along Z-axis . N - number of touch point

CmdPrm.Flt[-200]

Double

Original first touch point value along X-axis specified in the Job Assignment

CmdPrm. Flt [-201]

Double

Original first touch point value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-202]

Double

Original first touch point value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-203]

Double

Original first target vector value along X-axis specified in the Job Assignment

CmdPrm. Flt [-204]

Double

Original first target vector value along Y-axis specified in the Job Assignment

CmdPrm. Flt [-205]

Double

Original first target vector value along Z-axis specified in the Job Assignment

CmdPrm.Flt[-200-((N-1)*6)]

Double

Other touch point value from original point along X-axis. N - number of touch point

CmdPrm.Flt[-201-((N-1)*6)]

Double

Other touch point value from original point along Y-axis. N - number of touch point

CmdPrm.Flt[-202-((N-1)*6)]

Double

Other touch point value from original point along Z-axis. N - number of touch point

CmdPrm.Flt[-203-((N-1)*6)]

Double

Other target vector value from original vector along X-axis . N - number of touch point

CmdPrm.Flt[-204-((N-1)*6)]

Double

Other target vector value from original vector along Y-axis . N - number of touch point

CmdPrm.Flt[-205-((N-1)*6)]

Double

Other target vector value from original vector along Z-axis . N - number of touch point

CmdPrm.Flt[-66]

Integer

Compensate dimensions, retrurn values: 0 - Off, 1 - On
