Importing a Geometry Model from an External System

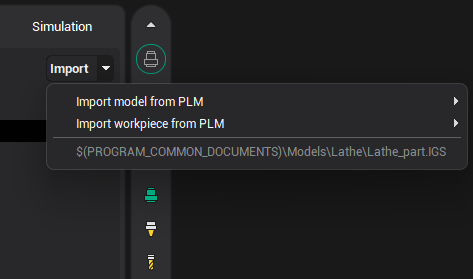

Geometry models of parts and workpieces can be imported directly from a PLM system using the Import button in the main window toolbar.
This button includes a small arrow that opens a drop-down menu with additional import options:

  • Import model from PLM

  • Import workpiece from PLM

Each option includes a submenu where you can select a configured PLM connection.

Note: The PLM-related options appears only if at least one PLM connection is configured.

images/download/attachments/142657868/31.png

Importing a Geometry Model from an External System

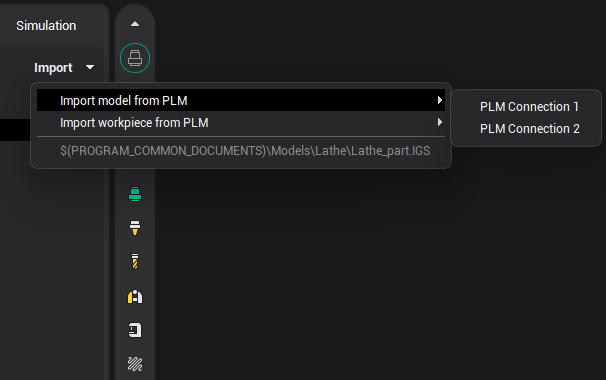

Click the arrow next to the Import button, then select Import model from PLM[connection name].

images/download/attachments/142657868/32.png

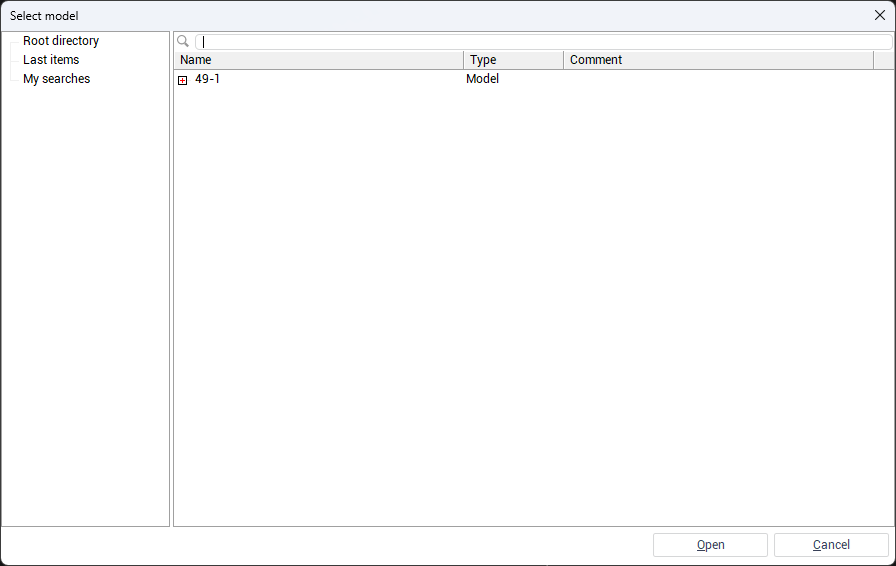

A window will open with a tree view of available geometry models in the external system. Select the desired model and click Open. The model will be imported into the current project.

images/download/attachments/142657868/33.png

Importing a Workpiece from an External System

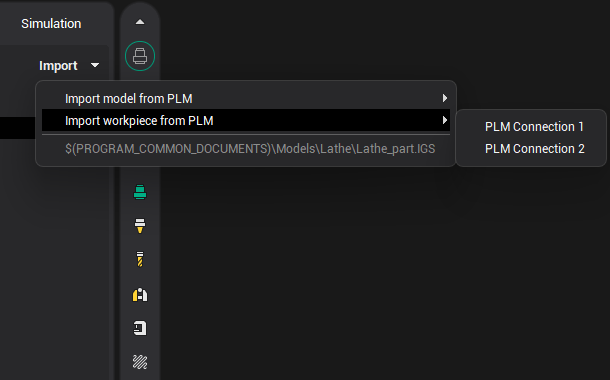

Click the arrow next to the Import button, then select Import workpiece from PLM[connection name].

images/download/attachments/142657868/34.png

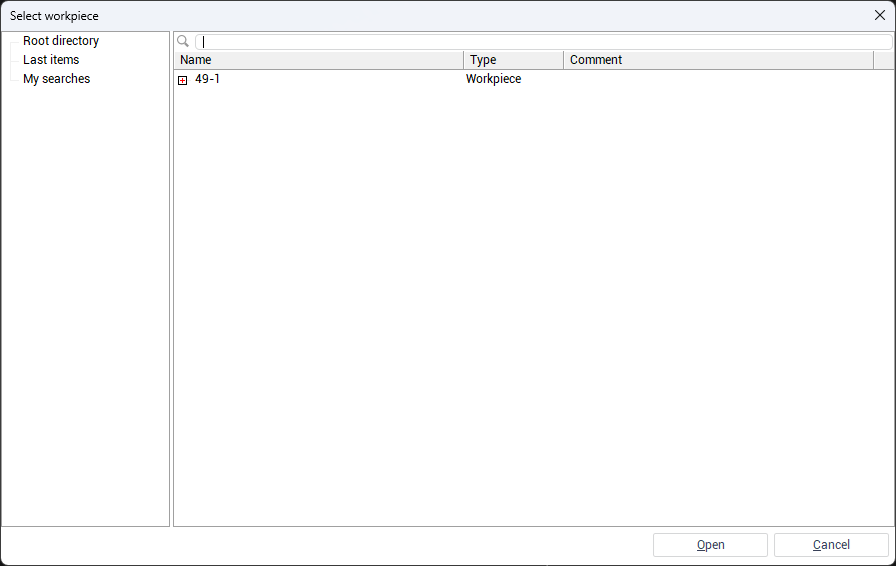

Browse the external system’s object structure to find the required workpiece, then click Open. The selected workpiece will be imported into the current project.

images/download/attachments/142657868/35.png
