Main panel

images/download/attachments/147780075/image2025-9-1_8-17-27.png

Application Area:

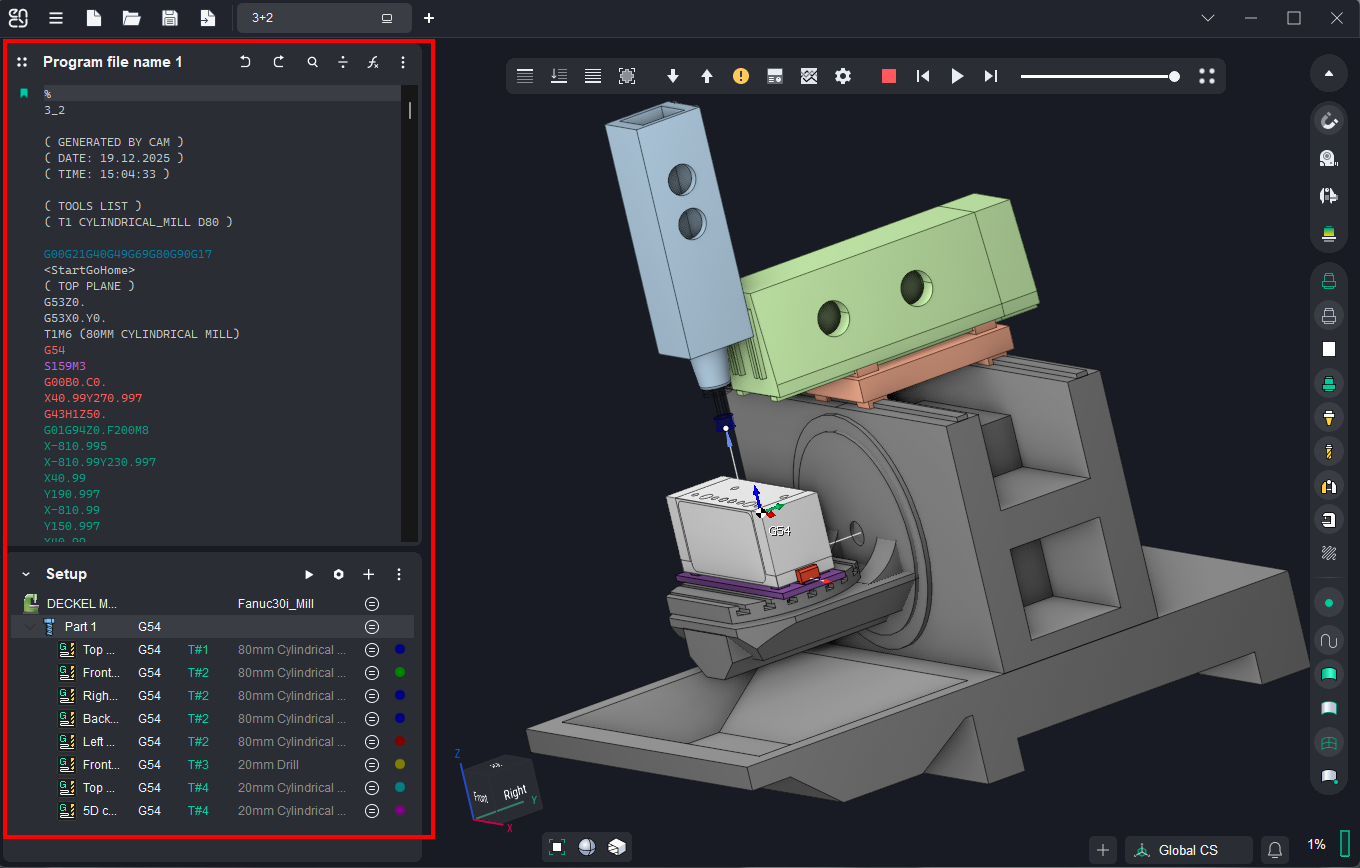

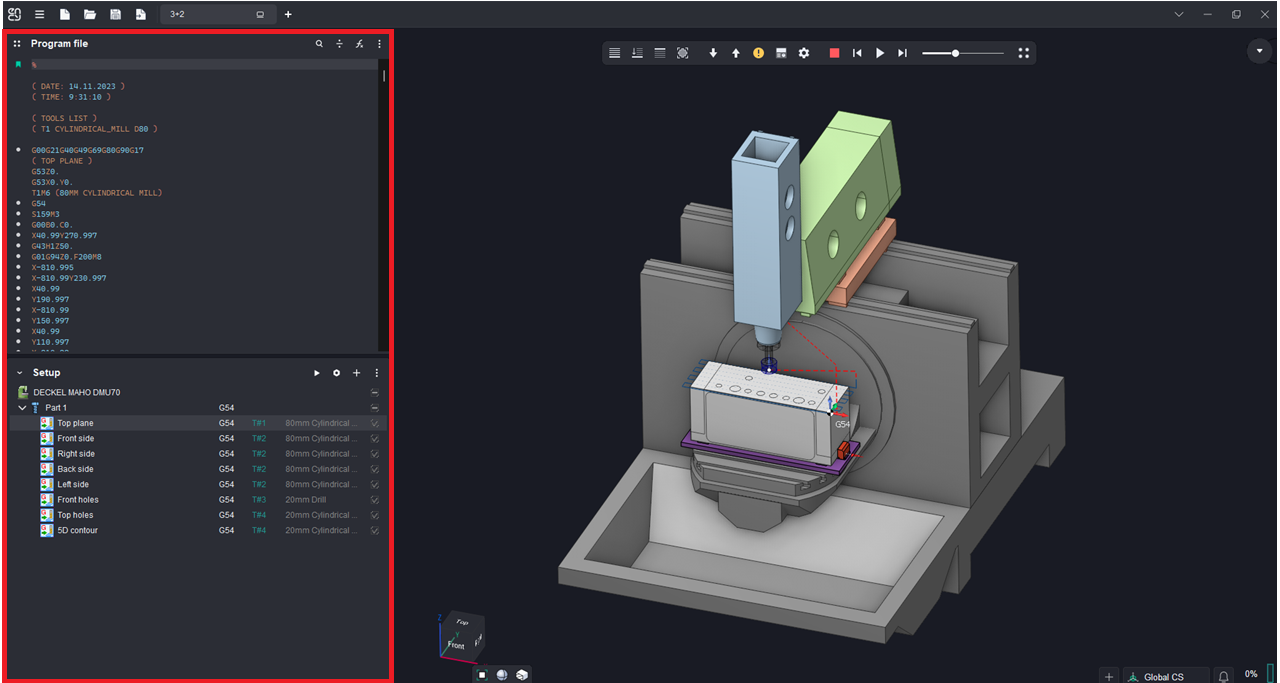

The Main Panel is comprised of two key components: a tree view that displays the operation hierarchy and a set of tools designed for interacting with and manipulating the text of the control program or individual operations. The Main Panel is bifurcated into two distinct sections: the NC Code Editor Panel (See more) and the Project Setup Panel (See more). The NC Code Editor Panel prominently features the complete text of the control program. This program’s underlying technology is meticulously structured and presented below in the Project Setup Panel, organized into key entities: part, setup, and various operations.
