Collision

If you are using inaccurate 3D models, CAM system can detect false-positive collisions between nodes. You can add these nodes to the ignore-list to prevent CAM system from detecting false-positive collisions.

Click button to open the parameters panel. Then go to the Collisions tab.

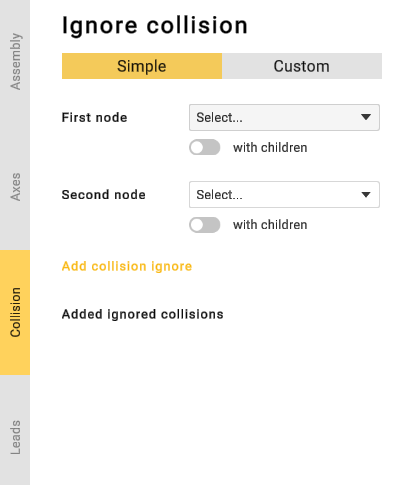

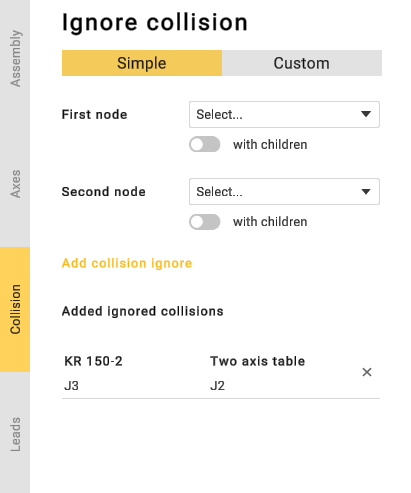

Select first and second nodes and click Add collisions button. Use with children toggle to add node's children to the ignore-list. Use button to delete a previously added collision from the ignore list.

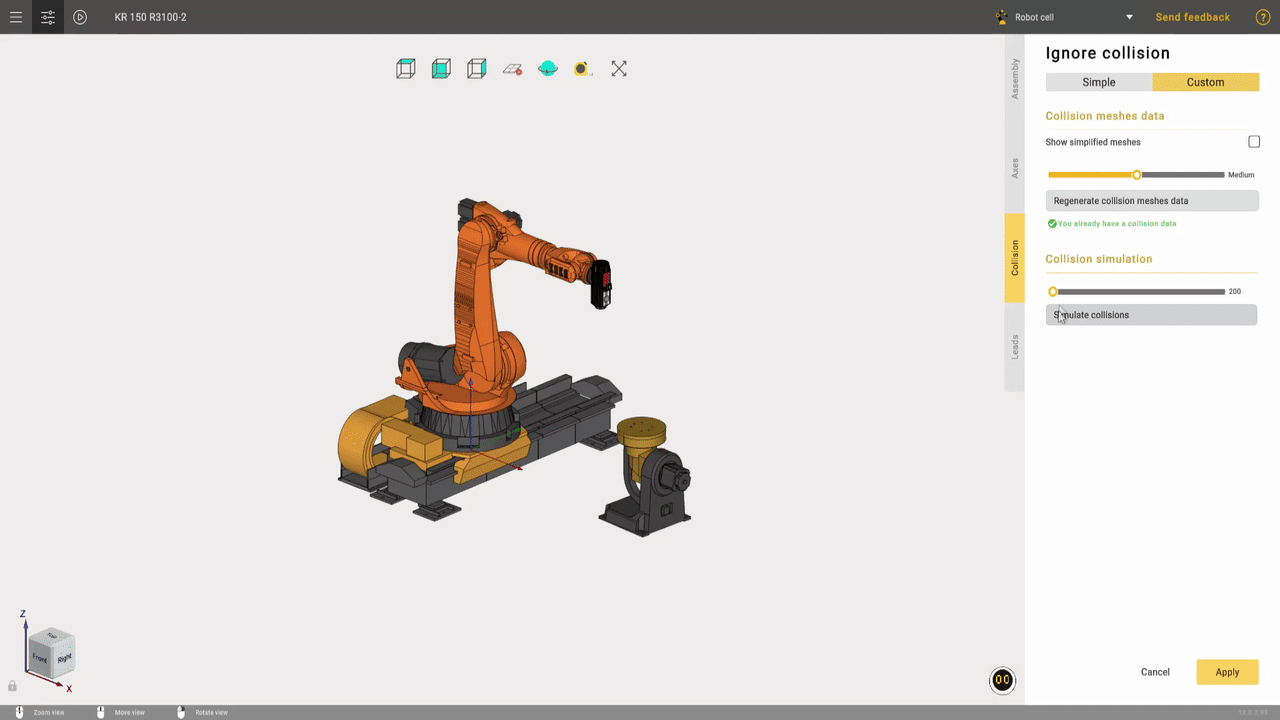

In the custom collision tab, you can manually compute collisions using user-defined parameters.
This section allows you to specify the mesh resolution for each mechanism node used by the collision-detection algorithm.

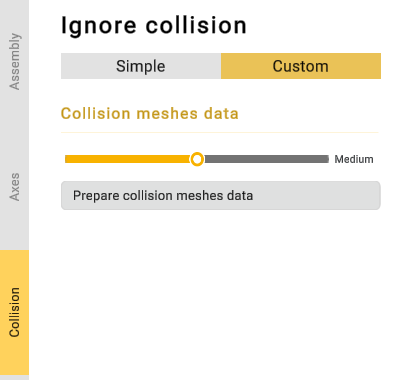

If you click “Prepare collision meshes data”, the application will calculate the number of mechanism positions required for collision detection.

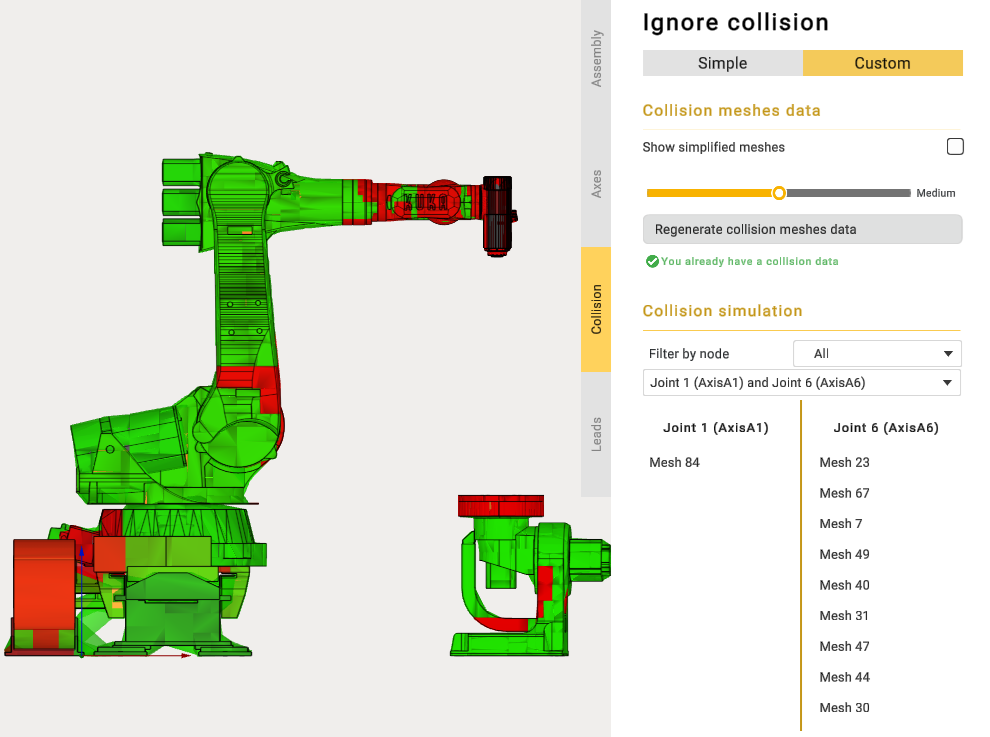

After calculating the number of mechanism positions, you will be able to sort them by nodes and visually inspect collisions on the mechanisms.
