Additional options

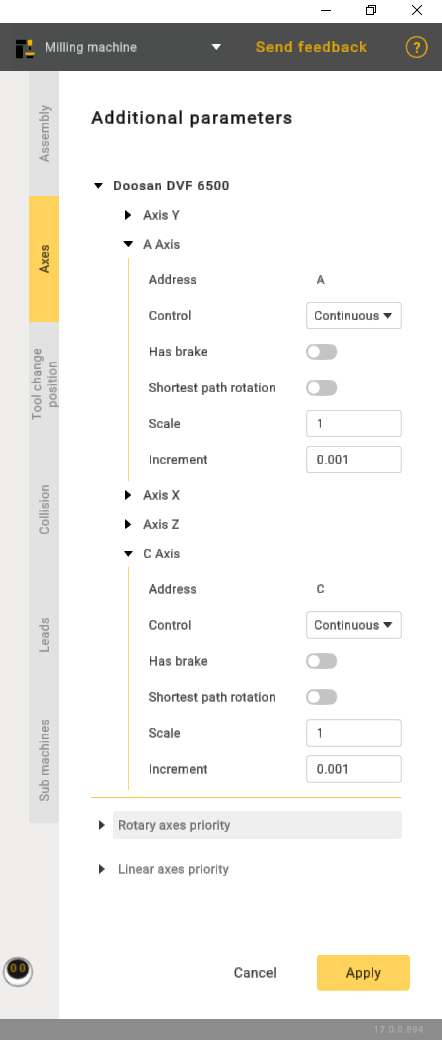

Click button to open Machine parameters panel. Then go to the Axes tab. It is possible to specify

• Address - axis designation.

• Control:

1. Countinuous.

2. Indexed - indicates that rotation will be carried out incrementally.

3. Manual - implies that the operation is entirely manual.

• Shortest path rotation - refers to the rotation around an axis or point using the most direct path between the initial and final positions in three-dimensional space.

• Scale is a setting with four positions. Each position corresponds to a specific angular increment. Position 1 equals 90 degrees, Position 2 equals 180 degrees, and so on.
