Triple wall internal corner probing parameters
Triple wall internal corner probing consist of the following steps:

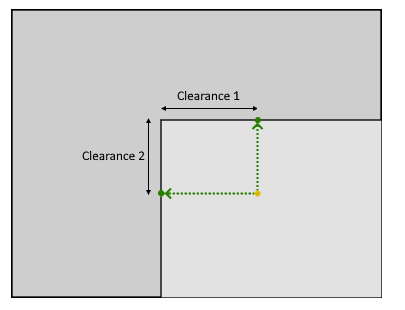

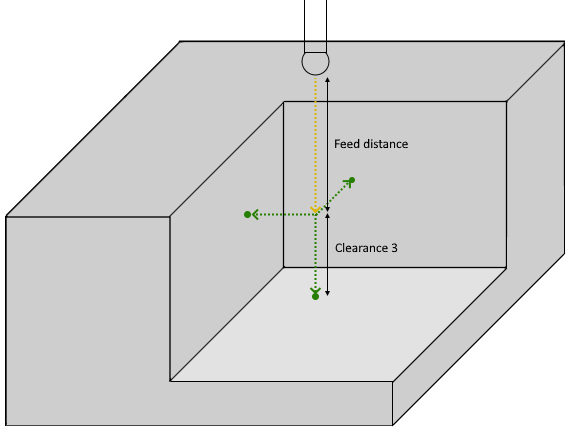

The tool moves the distance specified in the < Feed distance > and approaches the starting point of the measurement cycle that is the intersection of three touch points at a distance specified in <Clearance 1>, <Clearance 2> , <Clearance 3> , respectively, along their vectors . Moving at "Approach feed";
T he tool approaches touch point of the first side (moving at "Work feed") and then returns (m oving at "Long link feed" ) to previous position ;
T he tool approaches touch point of the second side (moving at "Work feed") and then returns (m oving at "Long link feed" ) to previous position ;
T he tool approaches touch point of the third side (moving at "Work feed") and then returns (m oving at "Long link feed" ) to previous position ;
The tool is lifted up by a distance equal to <Feed distance >.
Parameters:
|
Type |
Description |
|
|
CmdPrm.Int[-1] |
Integer |
Probing cycle type: Triple wall internal corner probing value = 15 |
|
CmdPrm.Int[-2] |
Integer |
SubCode of cycle specified in " SubCode for postprocessor " property on the <Job Assignment> tab |
|
CmdPrm.Flt[-50] |
Double |
Feed distance, distance to start position of cycle |
|
CmdPrm.Flt[-56] |
Double |
Clearance 1, approach distance to touch poin t on first side |
|
CmdPrm.Flt[-57] |
Double |
Clearance 2,
approach distance to touch poin
t on second side
|
|
CmdPrm.Flt[-58] |
Double |
Clearance 3, approach distance to touch poin t on third side |
|
CmdPrm.Flt[-100] |
Double |
Touch point on first wall value along X-axis |
|
CmdPrm. Flt [-101] |
Double |
T ouch point on first wall value along Y-axis |
|
CmdPrm. Flt [-102] |
Double |
T ouch point on first wall value along Z-axis |
|
CmdPrm.Flt[-103] |
Double |
T arget vector of touch point on first wall value along X-axis |
|
CmdPrm. Flt [-104] |
Double |
T arget vector of touch point on first wall value along Y-axis |
|
CmdPrm. Flt [-105] |
Double |
T arget vector of touch point on first wall value along Z-axis |
|
CmdPrm.Flt[-106] |
Double |
T ouch point on second wall value along X-axis |
|
CmdPrm. Flt [-107] |
Double |
T ouch point on second wall value along Y-axis |
|
CmdPrm. Flt [-108] |
Double |
T ouch point on second wall value along Z-axis |
|
CmdPrm.Flt[-109] |
Double |
T arget vector of touch point on second wall value along X-axis |
|
CmdPrm. Flt [-110] |
Double |
T arget vector of touch point on second wall value along Y-axis |
|
CmdPrm. Flt [-111] |
Double |
T arget vector of touch point on second wall value along Z-axis |
|
CmdPrm.Flt[-112] |
Double |
T ouch point on third wall value along X-axis |
|
CmdPrm. Flt [-113] |
Double |
T ouch point on third wall value along Y-axis |
|
CmdPrm. Flt [-114] |
Double |
T ouch point on third wall value along Z-axis |
|
CmdPrm.Flt[-115] |
Double |
T arget vector of touch point on third wall value along X-axis |
|
CmdPrm. Flt [-116] |
Double |
T arget vector of touch point on third wall value along Y-axis |
|
CmdPrm. Flt [-117] |
Double |
T arget vector of touch point on third wall value along Z-axis |
|
CmdPrm.Flt[-200] |
Double |
Original touch point on first wall value along X-axis specified in the Job Assignment |
|
CmdPrm. Flt [-201] |
Double |
Original touch point on first wall value along Y-axis specified in the Job Assignment |
|
CmdPrm. Flt [-202] |
Double |
Original touch point on first wall value along Z-axis specified in the Job Assignment |
|
CmdPrm.Flt[-203] |
Double |
Original t arget vector of touch point on first wall value along X-axis specified in the Job Assignment |
|
CmdPrm. Flt [-204] |
Double |
Original target vector of touch point on first wall value along Y-axis specified in the Job Assignment |
|
CmdPrm. Flt [-205] |
Double |
Original target vector of touch point on first wall value along Z-axis specified in the Job Assignment |
|
CmdPrm.Flt[-206] |
Double |
Original t ouch point on second wall value along X-axis specified in the Job Assignment |
|
CmdPrm. Flt [-207] |
Double |
Original touch point on second wall value along Y-axis specified in the Job Assignment |
|
CmdPrm. Flt [-208] |
Double |
Original touch point on second wall value along Z-axis specified in the Job Assignment |
|
CmdPrm.Flt[-209] |
Double |
Original t arget vector of touch point on second wall value along X-axis specified in the Job Assignment |
|
CmdPrm. Flt [-210] |
Double |
Original t arget vector of touch point on second wall value along Y-axis specified in the Job Assignment |
|
CmdPrm. Flt [-211] |
Double |
Original t arget vector of touch point on second wall value along Z-axis specified in the Job Assignment |
|
CmdPrm.Flt[-212] |
Double |
Original t ouch point on third wall value along X-axis specified in the Job Assignment |
|
CmdPrm. Flt [-213] |
Double |
Original t ouch point on third wall value along Y-axis specified in the Job Assignment |
|
CmdPrm. Flt [-214] |
Double |
Original t ouch point on third wall value along Z-axis specified in the Job Assignment |
|
CmdPrm.Flt[-215] |
Double |
Original t arget vector of touch point on third wall value along X-axis specified in the Job Assignment |
|
CmdPrm. Flt [-216] |
Double |
Original t arget vector of touch point on third wall value along Y-axis specified in the Job Assignment |
|
CmdPrm. Flt [-217] |
Double |
Original t arget vector of touch point on third wall value along Z-axis specified in the Job Assignment |
