Double wall internal corner probing parameters

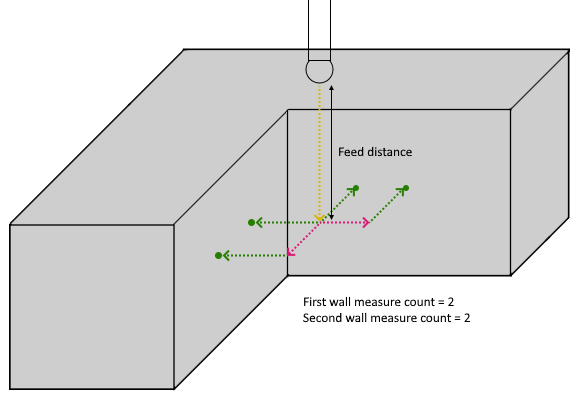

Double wall internal corner probing consist of the following steps:

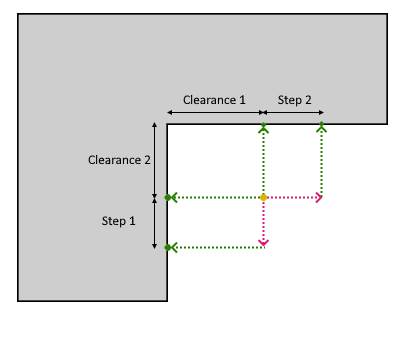

- The tool travels to the distance specified in the < Feed distance > and approaches the starting point of the measurement cycle that is the intersection of first touch point of first side and first touch point of second side at a distance specified in <Clearance 1>, <Clearance 2> , respectively, along their vectors . Moving at "Approach feed";
- T he tool approaches first touch point of the first side (moving at "Work feed") and then returns (m oving at "Long link feed" ) to previous position ;
- If <First wall measure count> >1 then: - The tool moves to the next touch point on the current side at a distance specified in the <Clearance 1> in the direction of its target vector;
- The tool approaches touch point (moving at "Work feed") and then returns (m oving at "Long link feed" ) to previous position;

- S teps 3 are repeated as many times as indicated in <First wall measure count>;
- The tool returns to the starting point of the cycle. Moving at "Long link feed";
- T he tool approaches first touch point of the second side (moving at "Work feed") and then returns (m oving at "Long link feed" ) to previous position ;
- If <Second wall measure count> >1 then: - The tool moves to the next touch point on the current side at a distance specified in the <Clearance 2> in the direction of its target vector;
- The tool approaches touch point (moving at "Work feed") and then returns (m oving at "Long link feed" ) to previous position;

- S teps 7 are repeated as many times as indicated in <Second wall measure count>;
- The tool returns to the starting point of the cycle. Moving at "Long link feed";
- The tool is lifted up by a distance equal to <Feed distance >.
Parameters:
| Type | Description | |
| CmdPrm.Int[-1] | Integer | Probing cycle type: Double wall internal corner probing value = 13 |
| CmdPrm.Int[-2] | Integer | SubCode of cycle specified in " SubCode for postprocessor " property on the <Job Assignment> tab |
| CmdPrm.Flt[-50] | Double | Feed distance, distance to start position of cycle |
| CmdPrm.Flt[-56] | Double | Clearance 1, approach distance to touch poin ts on first side |
| CmdPrm.Flt[-57] | Double | Clearance 2, approach distance to touch poin ts on second side |
| CmdPrm.Int[-63] | Integer | First wall measure count, count of touch points on first side |
| CmdPrm.Int[-64] | Integer | Second wall measure count, count of touch points on second side |
| CmdPrm.Flt[-65] | Double | Step 1, distance between touch points on first wall |
| CmdPrm.Flt[-67] | Double | Step 2, distance between touch points on second wall |
| CmdPrm.Flt[-100] | Double | First touch point on first side value along X-axis |
| CmdPrm. Flt [-101] | Double | First t ouch point on first side value along Y-axis |
| CmdPrm. Flt [-102] | Double | First t ouch point on first side value along Z-axis |
| CmdPrm.Flt[-103] | Double | First target vector on first side value along X-axis |
| CmdPrm. Flt [-104] | Double | First target vector on first side value along Y-axis |
| CmdPrm. Flt [-105] | Double |
First target


vector
on first side

value along Z-axis

 |
| CmdPrm.Flt[-100-((N-1)*6)] | Double | Other touch point on first side value along X-axis. N - number of touch point on first side |
| CmdPrm.Flt[-101-((N-1)*6)] | Double | Other touch point on first side value along Y-axis. N - number of touch point on first side |
| CmdPrm.Flt[-102-((N-1)*6)] | Double | Other touch point on first side value along Z-axis. N - number of touch point on first side |
| CmdPrm.Flt[-103-((N-1)*6)] | Double | Other target vector on first side value along X-axis . N - number of touch point on first side |
| CmdPrm.Flt[-104-((N-1)*6)] | Double | Other
target

vector
on first side
 value along Y-axis
. N - number of touch point on first side |
| CmdPrm.Flt[-105-((N-1)*6)] | Double | Other target vector on first side value along Z-axis . N - number of touch point on first side |
| CmdPrm.Flt[-100-6*C] | Double | First touch point on second side value along X-axis. C - count of touch point on first side |
| CmdPrm. Flt [-101-6*C] | Double | First t ouch point on second side value along Y-axis. C - count of touch point on first side |
| CmdPrm. Flt [-102-6*C] | Double | First t ouch point on second side value along Z-axis. C - count of touch point on first side |
| CmdPrm.Flt[-103-6*C] | Double | First target vector on second side value along X-axis. C - count of touch point on first side |
| CmdPrm. Flt [-104-6*C] | Double | First target vector on second side value along Y-axis. C - count of touch point on first side |
| CmdPrm. Flt [-105-6*C] | Double |
First target


vector
on second side

value along Z-axis. C - count of touch point on first side

 |
| CmdPrm.Flt[-100-6*C-((N-1)*6)] | Double | Other touch point on second side value along X-axis. N - number of touch point. C - count of touch point on first side |
| CmdPrm.Flt[-101-6*C-((N-1)*6)] | Double | Other touch point on second side value along Y-axis. N - number of touch point on second side. C - count of touch point on first side |
| CmdPrm.Flt[-102-6*C-((N-1)*6)] | Double | Other touch point on second side value along Z-axis. N - number of touch point on second side. C - count of touch point on first side |
| CmdPrm.Flt[-103-6*C-((N-1)*6)] | Double | Other target vector on second side value along X-axis . N - number of touch point on second side. C - count of touch point on first side |
| CmdPrm.Flt[-104-6*C-((N-1)*6)] | Double | Other
target

vector
on second side
 value along Y-axis
. N - number of touch point on second side. C - count of touch point on first side |
| CmdPrm.Flt[-105-6*C-((N-1)*6)] | Double | Other target vector on second side value along Z-axis . N - number of touch point on second side. C - count of touch point on first side |
| CmdPrm.Flt[-200] | Double | Original first touch point on first side value along X-axis specified in the Job Assignment |
| CmdPrm. Flt [-201] | Double | Original first t ouch point on first side value along Y-axis specified in the Job Assignment |
| CmdPrm. Flt [-202] | Double | Original first t ouch point on first side value along Z-axis specified in the Job Assignment |
| CmdPrm.Flt[-203] | Double | Original first target vector on first side value along X-axis specified in the Job Assignment |
| CmdPrm. Flt [-204] | Double | Original first target vector on first side value along Y-axis specified in the Job Assignment |
| CmdPrm. Flt [-205] | Double |
Original first target


vector
on first side

value along Z-axis specified in the Job Assignment

 |
| CmdPrm.Flt[-200-((N-1)*6)] | Double | Other touch point on first side value from original point along X-axis. N - number of touch point on first side |
| CmdPrm.Flt[-201-((N-1)*6)] | Double | Other touch point on first side value from original point along Y-axis. N - number of touch point on first side |
| CmdPrm.Flt[-202-((N-1)*6)] | Double | Other touch point on first side value from original point along Z-axis. N - number of touch point on first side |
| CmdPrm.Flt[-203-((N-1)*6)] | Double | Other target vector on first side value from original vector along X-axis . N - number of touch point on first side |
| CmdPrm.Flt[-204-((N-1)*6)] | Double | Other
target

vector
on first side
 value from original vector along Y-axis
. N - number of touch point on first side |
| CmdPrm.Flt[-205-((N-1)*6)] | Double | Other target vector on first side value from original vector along Z-axis . N - number of touch point on first side |
| CmdPrm.Flt[-200-6*C] | Double | First touch point on second side value along X-axis specified in the Job Assignment. C - count of touch point on first side |
| CmdPrm. Flt [-201-6*C] | Double | First t ouch point on second side value along Y-axis specified in the Job Assignment. C - count of touch point on first side |
| CmdPrm. Flt [-202-6*C] | Double | First t ouch point on second side value along Z-axis specified in the Job Assignment. C - count of touch point on first side |
| CmdPrm.Flt[-203-6*C] | Double | First target vector on second side value along X-axis specified in the Job Assignment. C - count of touch point on first side |
| CmdPrm. Flt [-204-6*C] | Double | First target vector on second side value along Y-axis specified in the Job Assignment. C - count of touch point on first side |
| CmdPrm. Flt [-205-6*C] | Double |
First target


vector
on second side

value along Z-axis specified in the Job Assignment. C - count of touch point on first side

 |
| CmdPrm.Flt[-200-6*C-((N-1)*6)] | Double | Other touch point on second side value from original point along X-axis. N - number of touch point. C - count of touch point on first side |
| CmdPrm.Flt[-201-6*C-((N-1)*6)] | Double | Other touch point on second side value from original point along Y-axis. N - number of touch point on second side. C - count of touch point on first side |
| CmdPrm.Flt[-202-6*C-((N-1)*6)] | Double | Other touch point on second side value from original point along Z-axis. N - number of touch point on second side. C - count of touch point on first side |
| CmdPrm.Flt[-203-6*C-((N-1)*6)] | Double | Other target vector on second side value from original vector along X-axis . N - number of touch point on second side. C - count of touch point on first side |
| CmdPrm.Flt[-204-6*C-((N-1)*6)] | Double | Other
target

vector
on second side
 value from original vector along Y-axis
. N - number of touch point on second side. C - count of touch point on first side |
| CmdPrm.Flt[-205-6*C-((N-1)*6)] | Double | Other target vector on second side value from original vector along Z-axis . N - number of touch point on second side. C - count of touch point on first side |
