Assigning finish pass in the XY plane

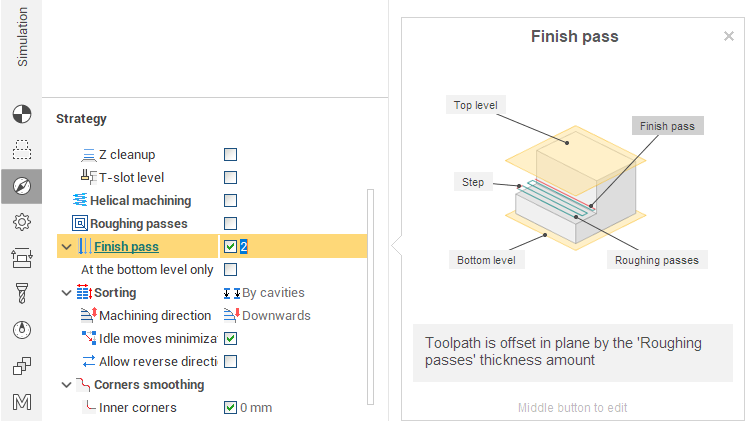

A finish pass for closed and open curves in 2D machining operations can be set up in the <Strategy> window.
When activating this option, the additional stock will be left on the model, which will be removed by the last finishing pass. It will allow the user to obtain higher quality surface finish.
The value of the stock can be defined as the absolute value or as a percentage of the tool diameter.
See also:
List of types of machining operations
