Editing of the Collisions Ignore List
Application area:
Implemented direct editing of the CDIgnoreList section in the machine scheme directly from CAM system. Previously, editing required manual data entry in Notepad or the use of MachineMaker.

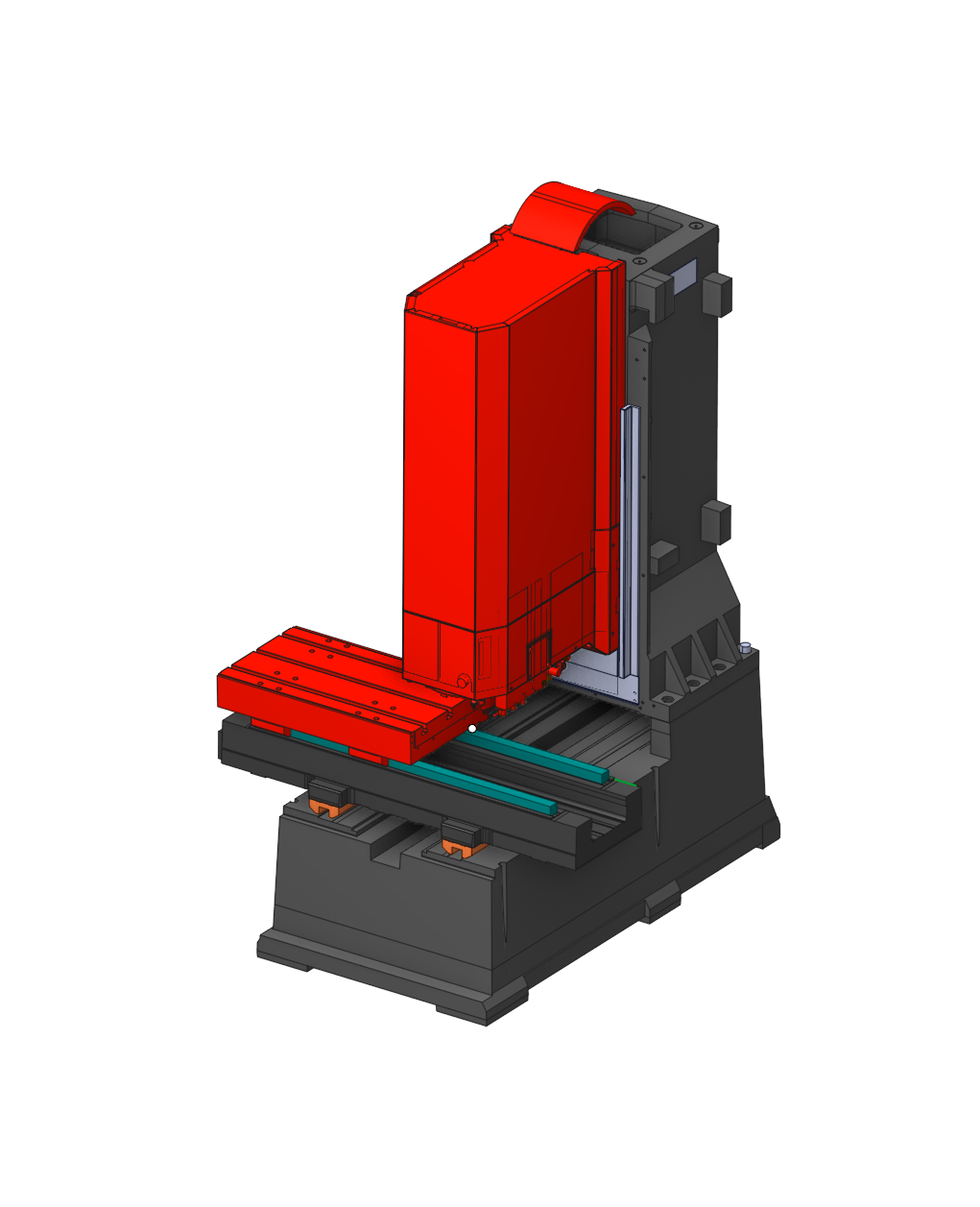

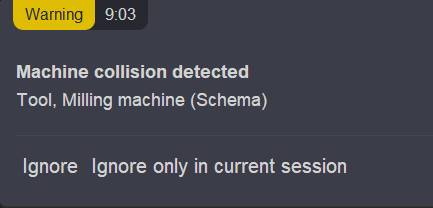

When a collision occurs during simulation, a notification appears indicating that a collision between nodes has occurred. A Ignore or Ignore only in curent session button has been added to this notification.
Functionality:
1. When a collision is detected during a simulation, a notification alerts the user, specifying the colliding nodes (e.g., node X and node Y). This notification includes an Ignore or Ignore only in curent session buttons. Pressing the “Ignore” button adds the identified node pair to the CDIgnoreList, effectively ignoring future collisions between those specific nodes.
In the first case, a file with the extension “.cdil” is created next to the machine kinematics file. If the file doesn’t exist, it is created.
When creating a new CAM project, the system references a machine. If an ignore list file exists next to the machine file, it is loaded from there; otherwise, the data is loaded directly from the machine file.
In the second case, a file is not created. Everything only works within the current session.

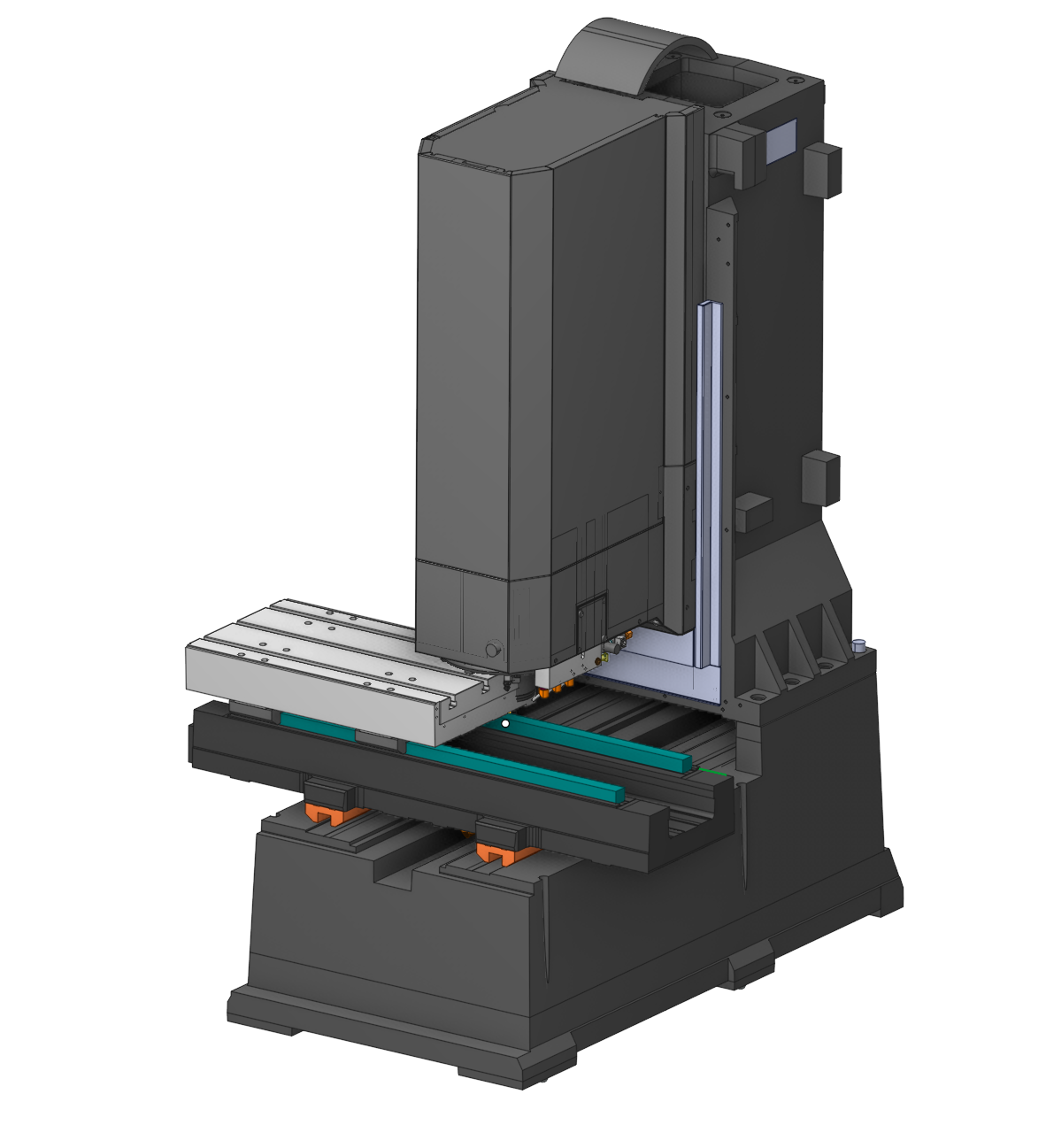

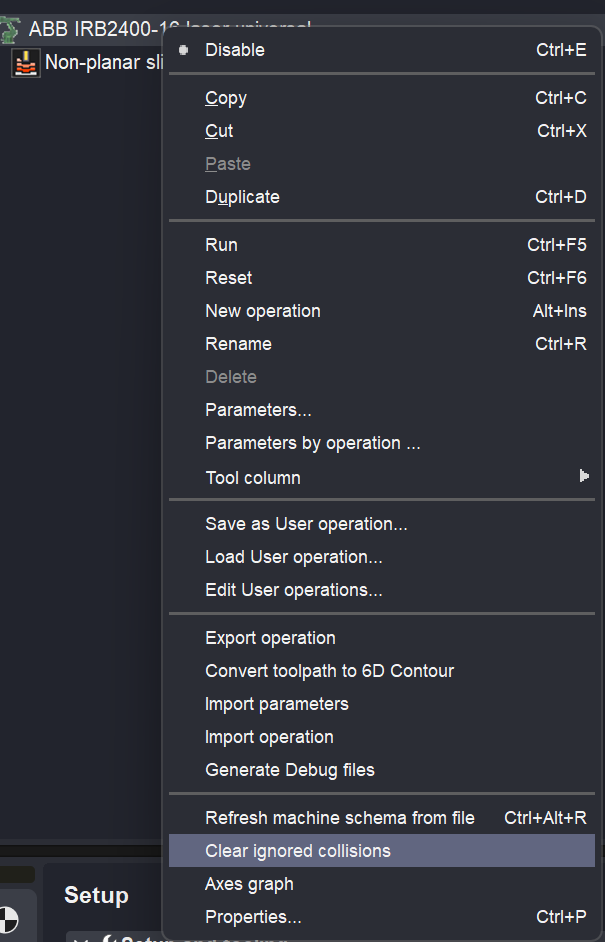

2.The file can be cleared through the machine’s popup menu (on the technology tab).
