Turn take over
Application area:

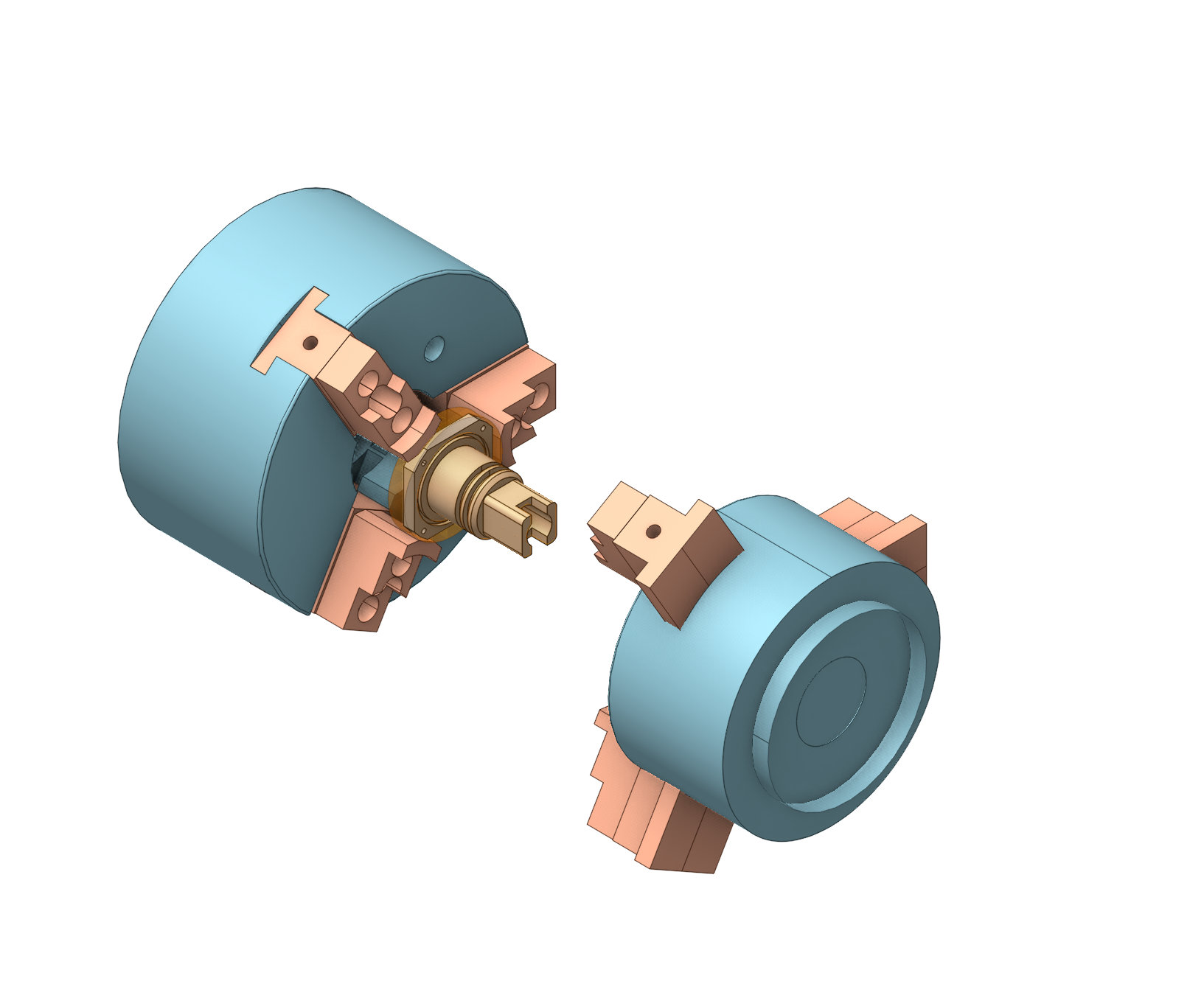

Turn take over is the special kind of pick and place operation designed to use in the lathe or swiss-lathe project template. The main difference of the Turn take over operation from the simple pick and place (See more) is that it takes Workpiece connector and Setup CS automatically from the next part of the project. Also the set of operation parameters is adapted specifically for the lathe or swiss-lathe type of machining.
Setup:
The Setup tab is used to configure the primary parameters of the project. This can involve the positioning of the part on the equipment, the coordinate system of the part, and more. See mor
Strategy:

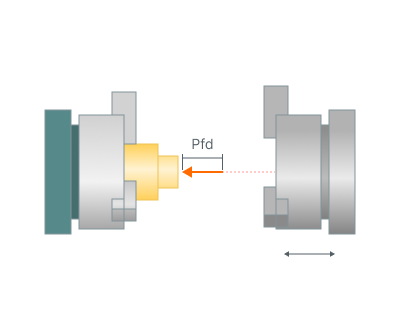

Pick feed distance.
The length of the movement which is done using the engage feed before picking the part.

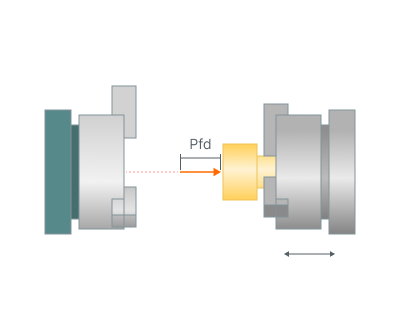

Return feed distance.
Length of the spindle movement on "Retract" feed after picking the part.
Use canned cycle.
Output the operation as a cycle.
Integrate with
Takeover operation will be synchronized with the selected Lathe part-off operation
Physic output.
"Multigoto" or "Goto" commands and coordinates are generated to move the machine axes
Initial clamp(IC)/Final clamp(FC)
The clamping device that initially holds the part. Special CLData commands for clamping/unclamping the device are output automatically

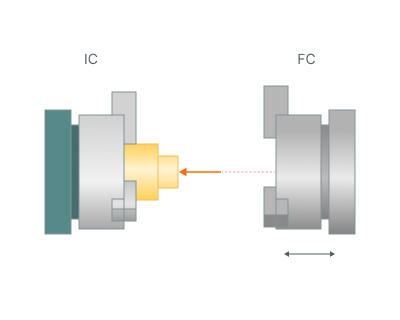

IC- Initial clamp

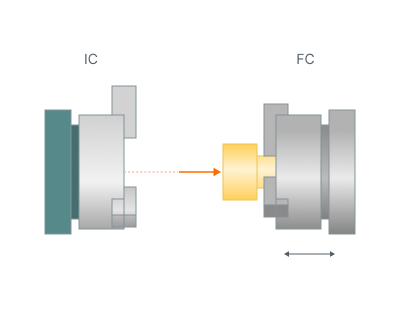

FC - Final clamp

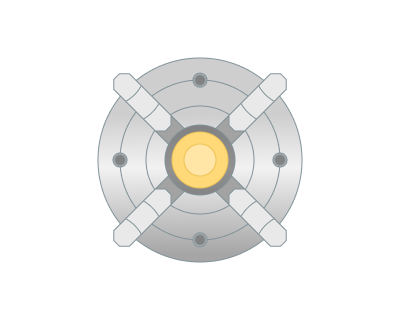

Clamped position. Clamp axis position which corresponds to the <Clamped> state of the device

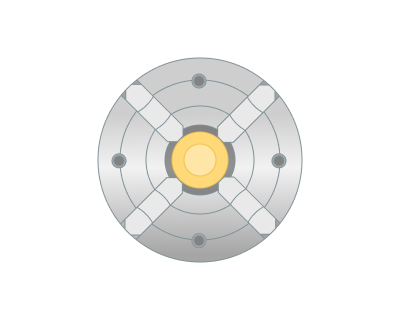

Unclamped position. Clamp axis position which corresponds to the (fully) <Unclamped> state of the device
