Restrictions

images/download/attachments/142652562/image2025-4-21_8-44-17.png images/download/attachments/142652562/image2025-4-21_8-45-52.png

Application area:

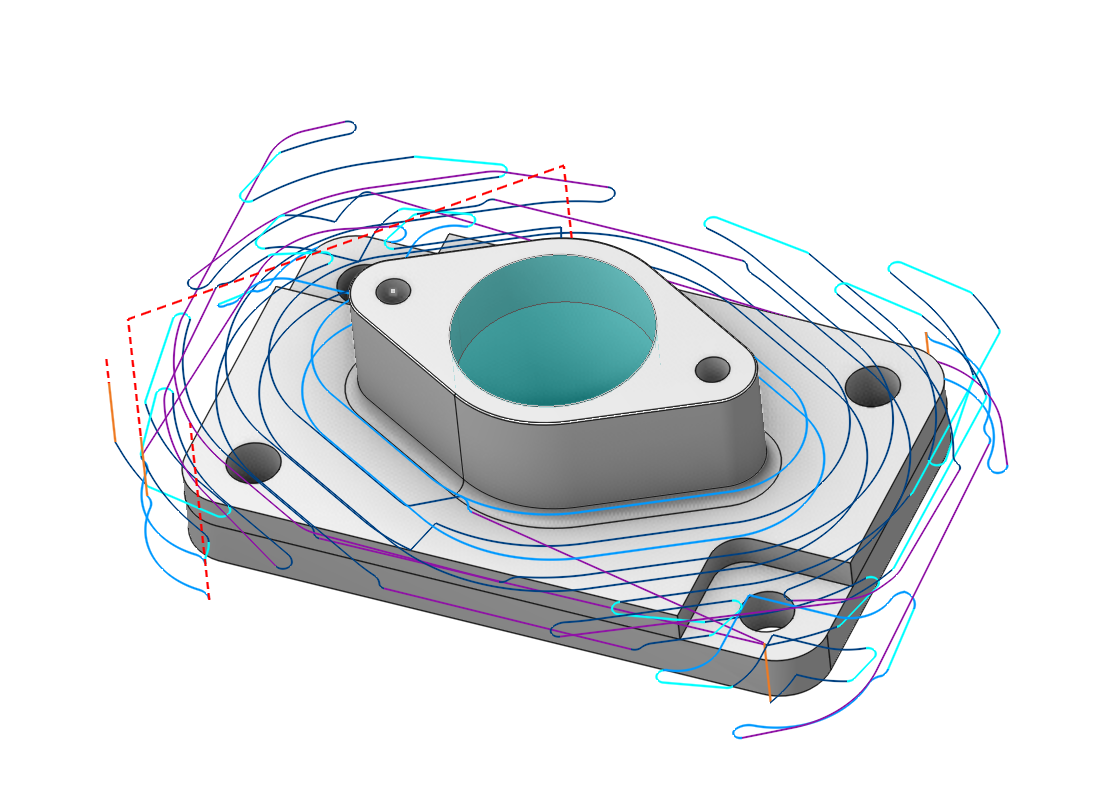

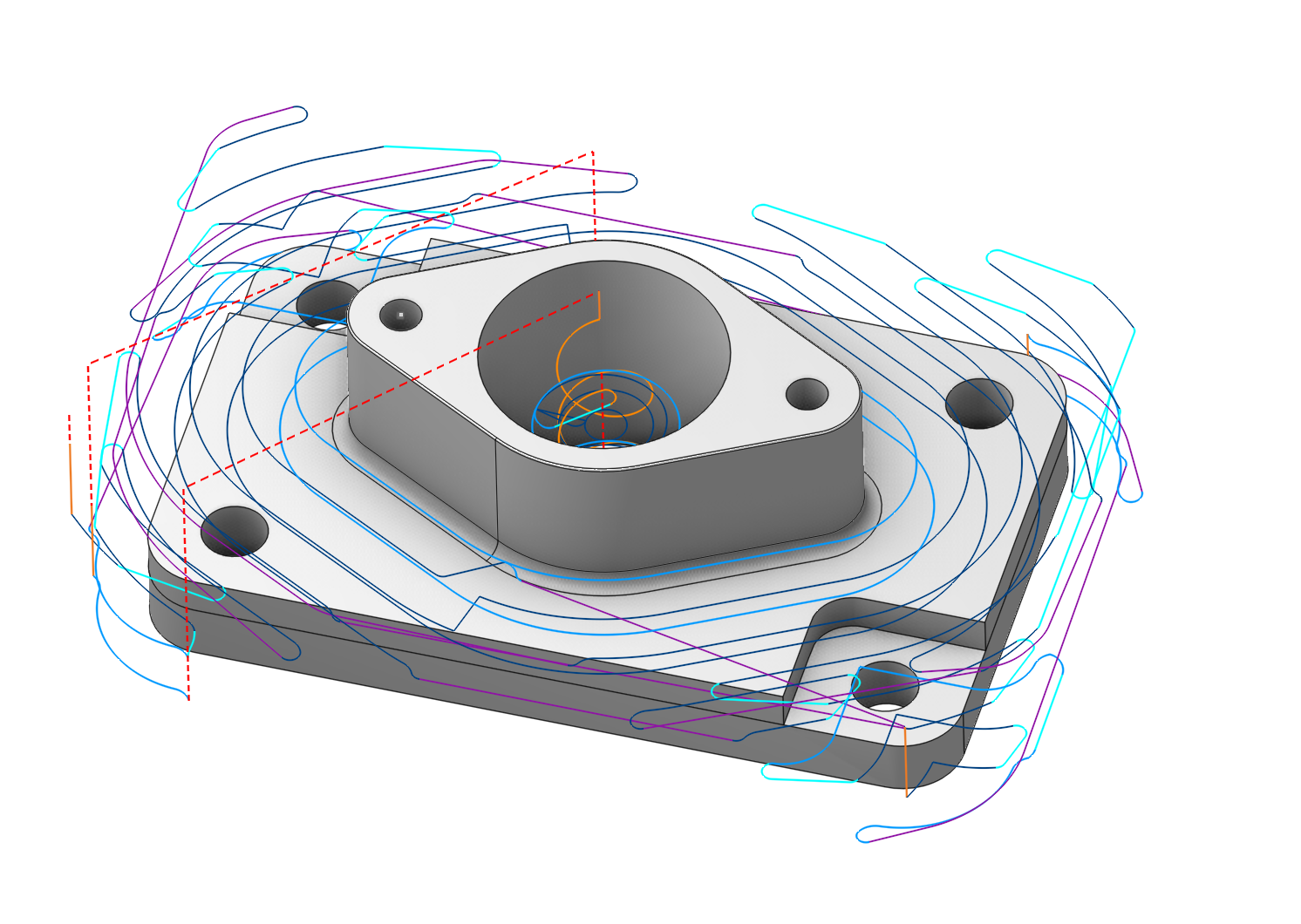

It allows you to restrict areas that should not be machined. A distinguishing feature compared to fixtures (See more) is that these constraints are applied within the scope of a single operation, whereas fixtures are utilized across the entire Setup stage (See more).

It is located at the bottom of the Job assignment. Double-clicking it expands this menu for easier geometry definition. Double-clicking it again collapses the section.

images/download/attachments/142652562/image2025-9-22_12-36-53.png

Methods for determining the restrictions are indicated here. See more

Visibility is controlled by turning on and off the visibility of the Job assignment visibility.
