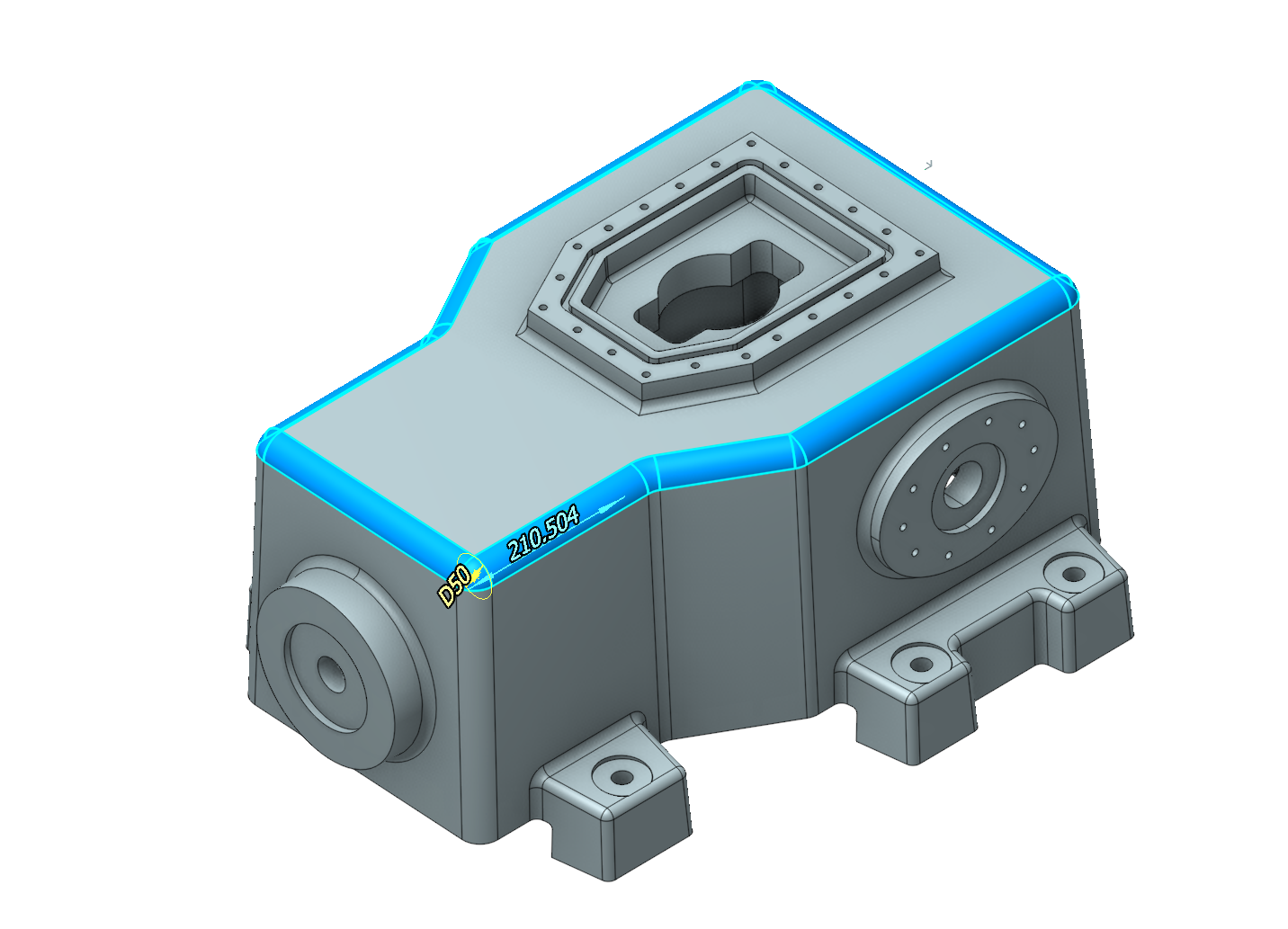

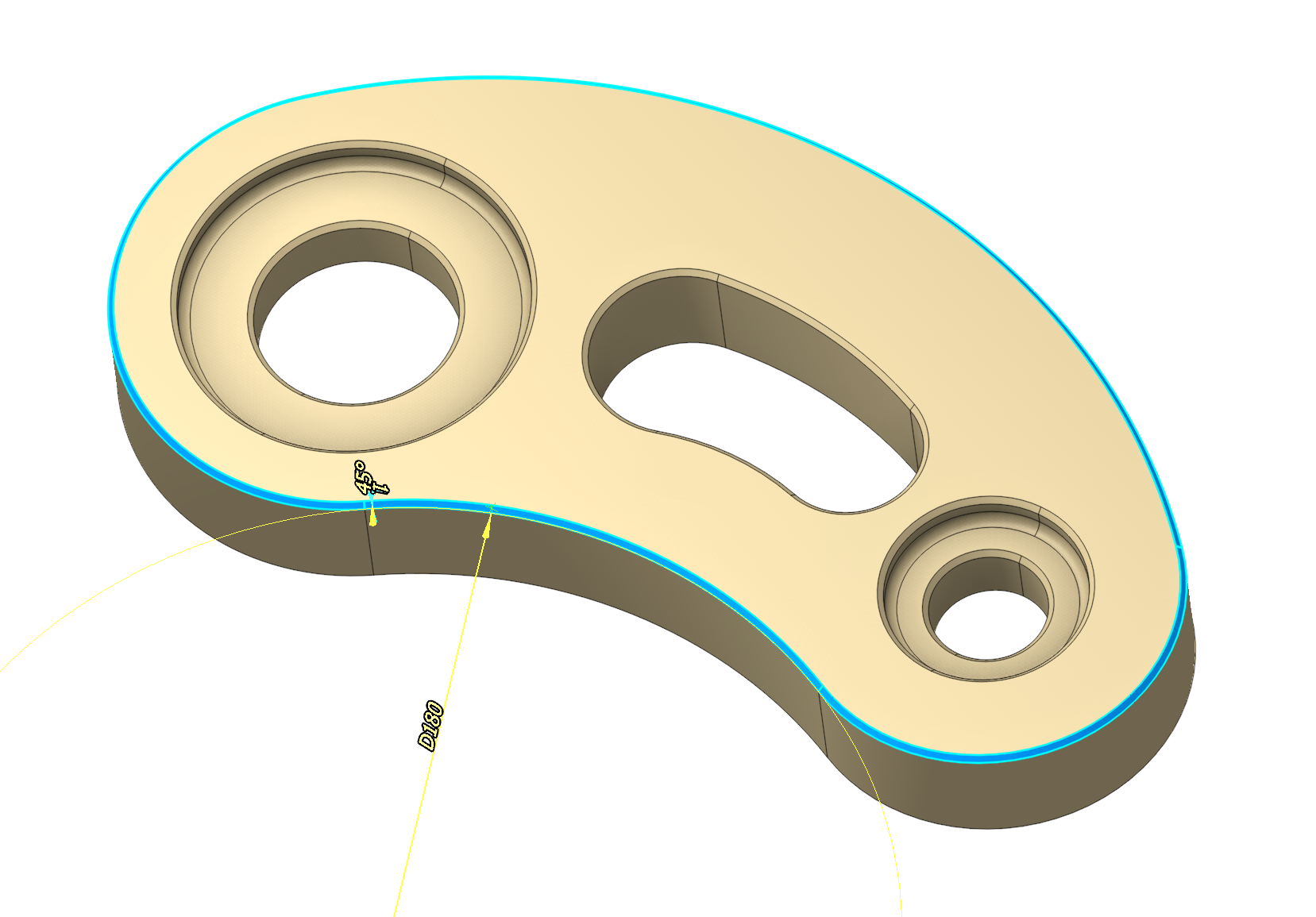

• Double click on a 3d edge automatically selects all tangent edges.

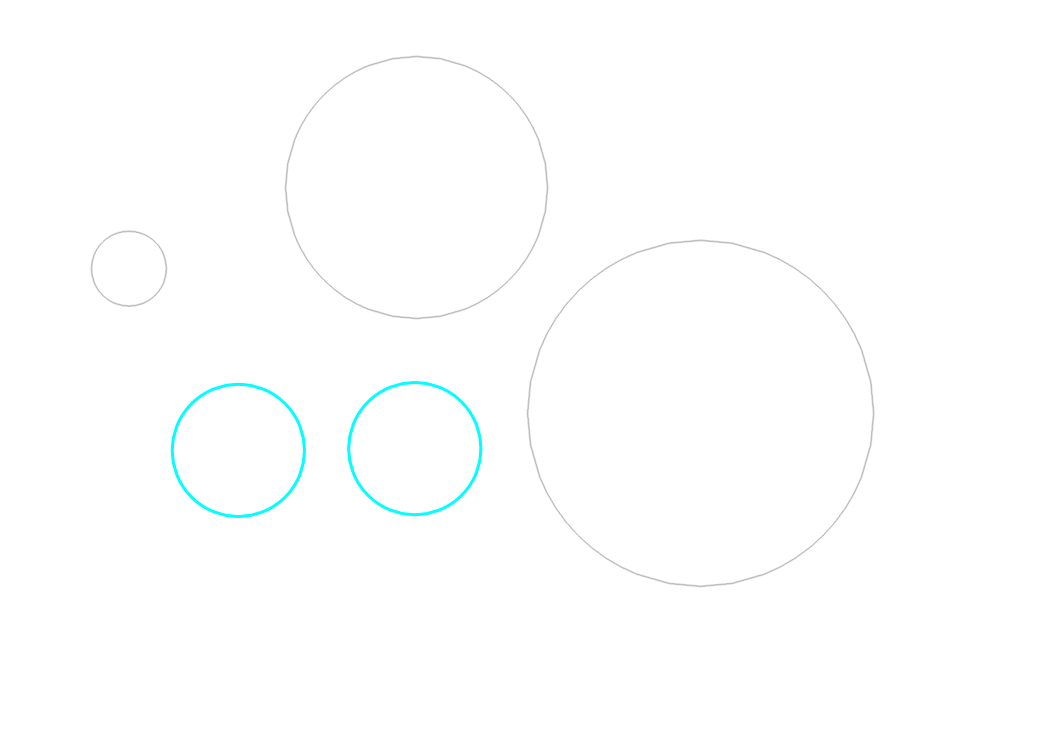

• Double click on a circle selects all the circles with the same diameter.

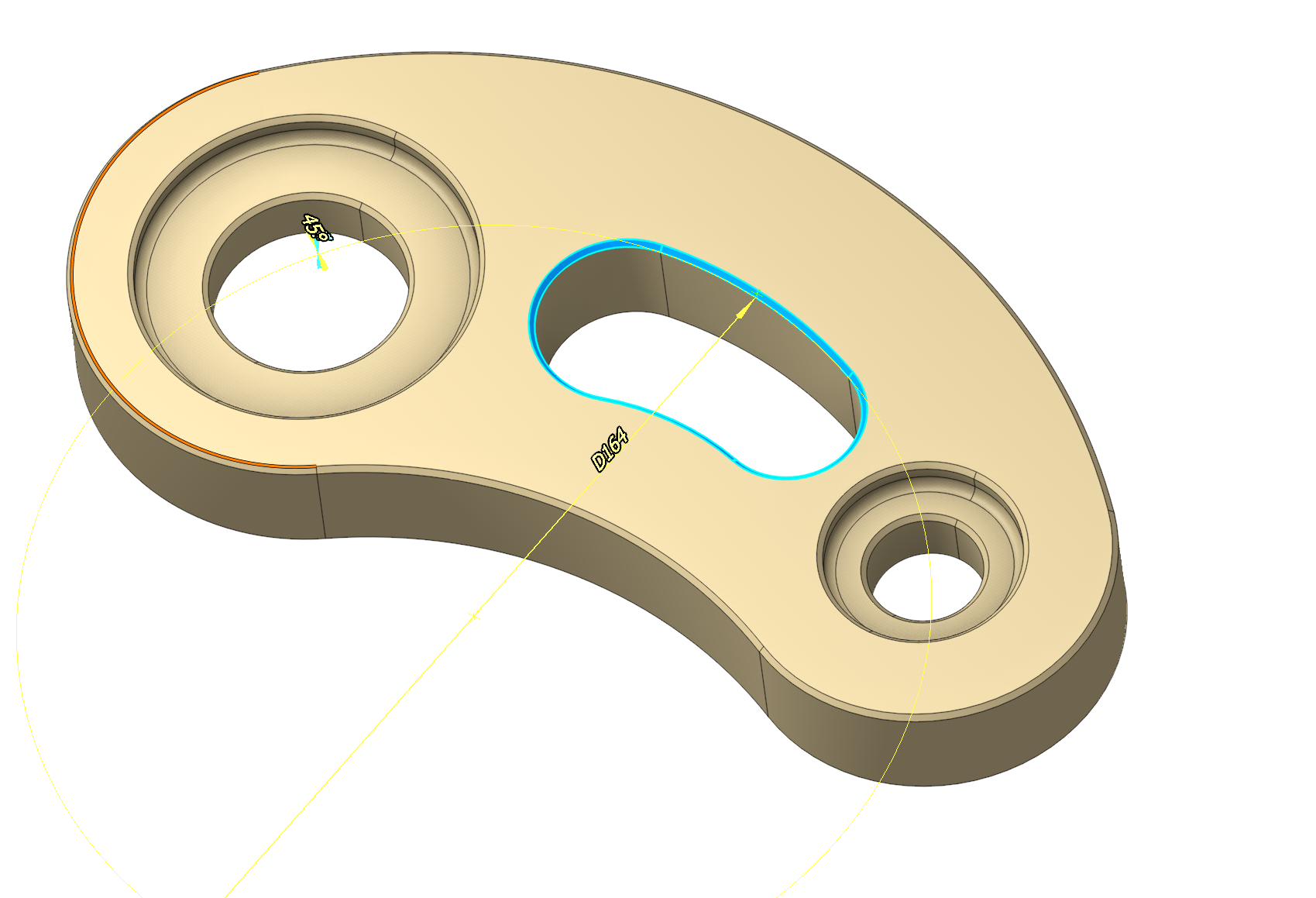

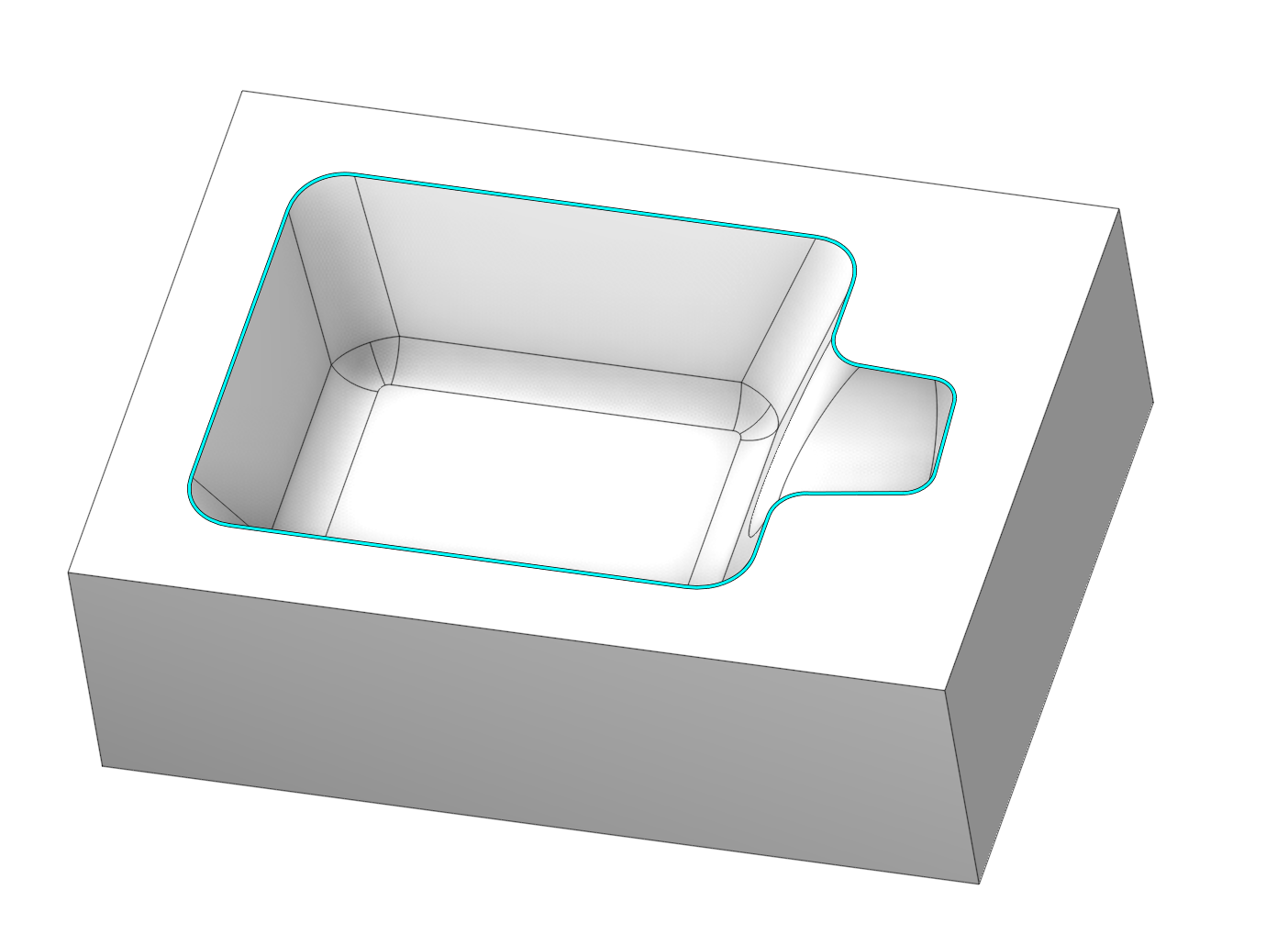

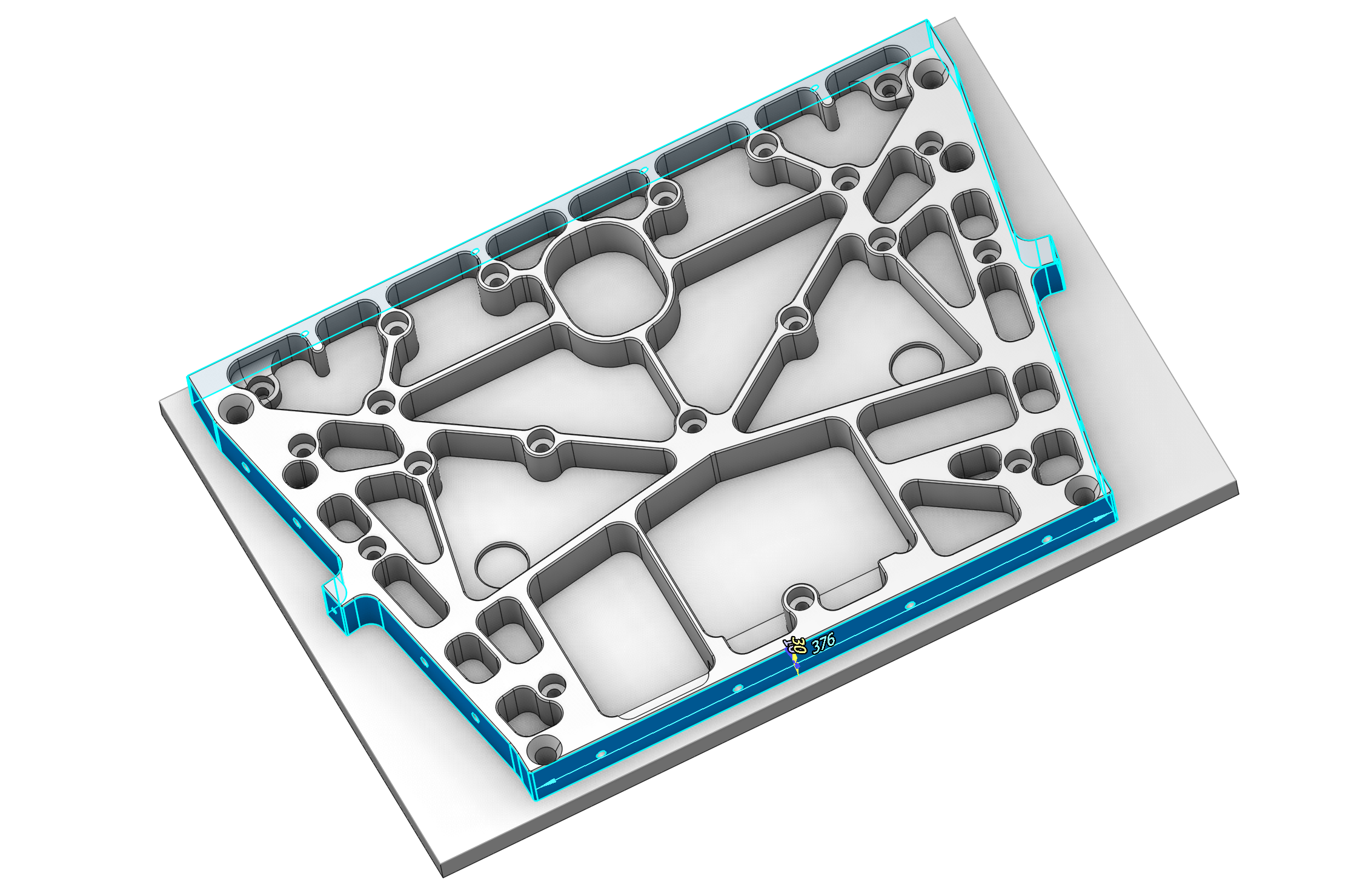

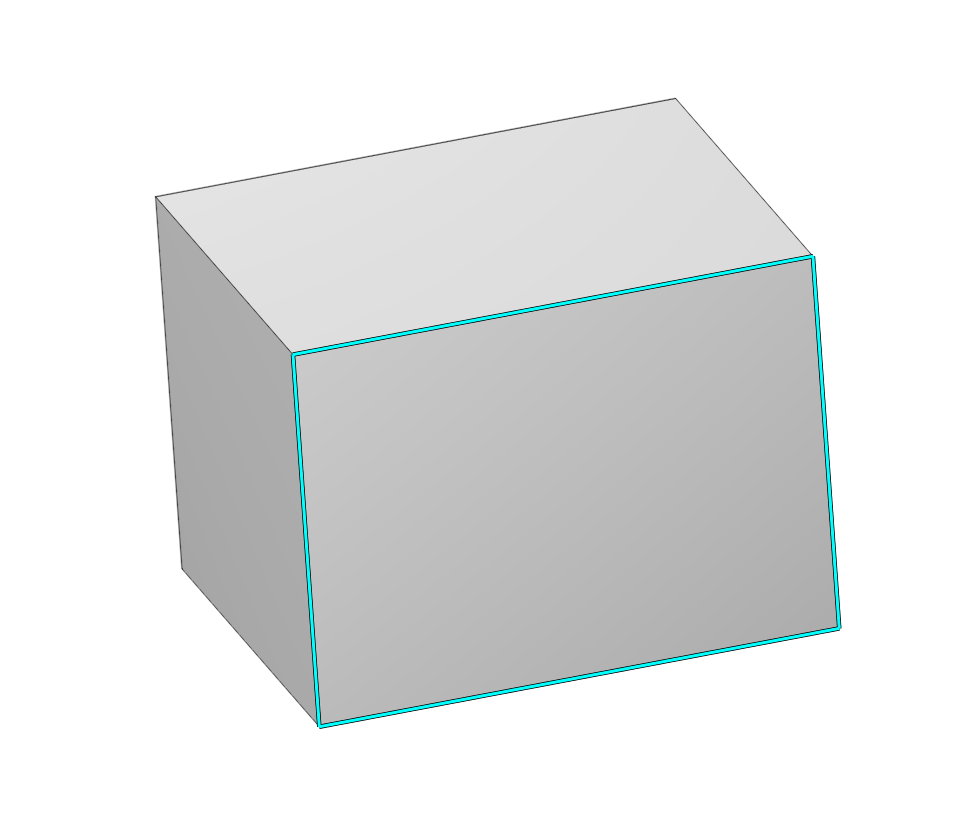

• Double click on a segment of a contour automatically selects all segments of the contour.

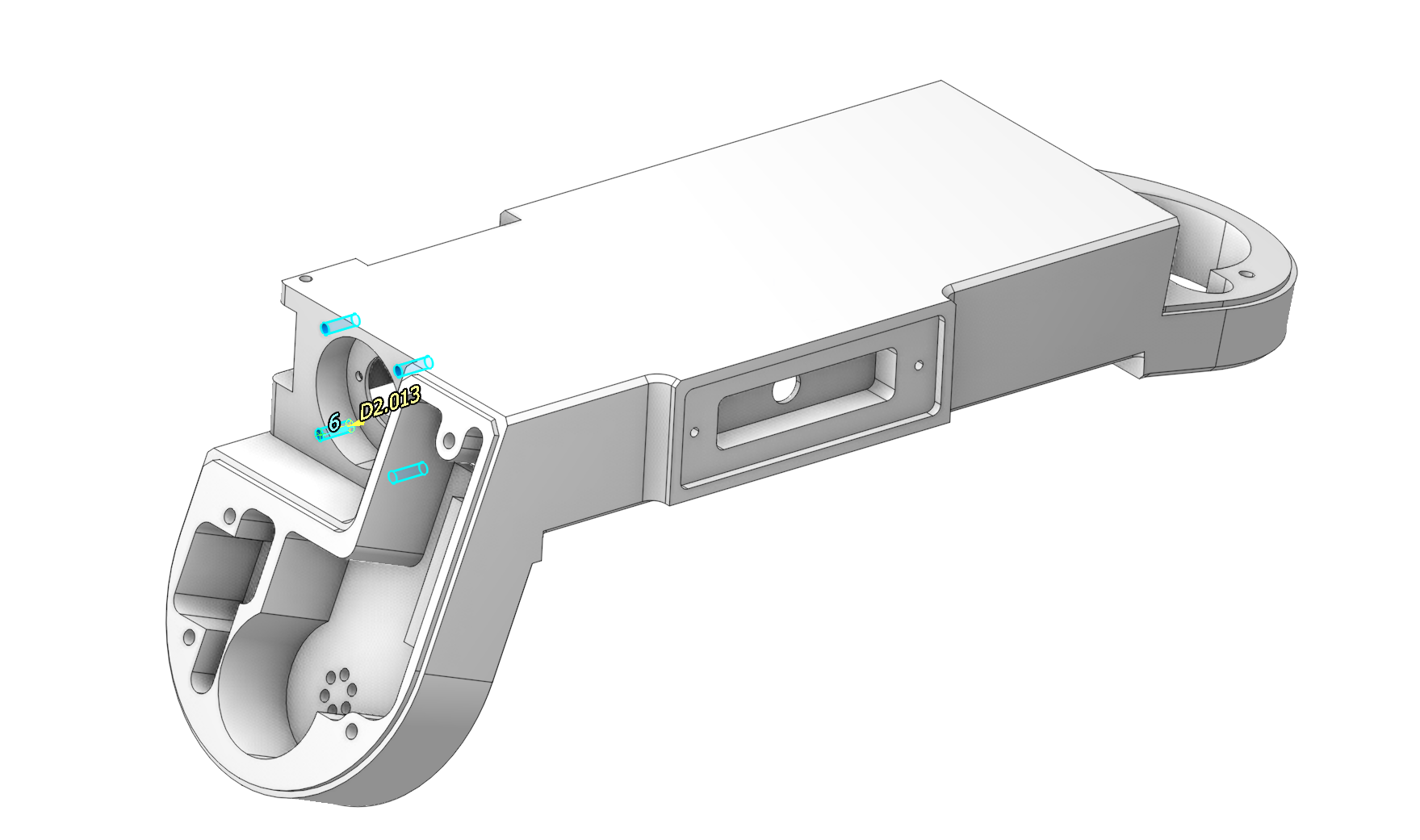

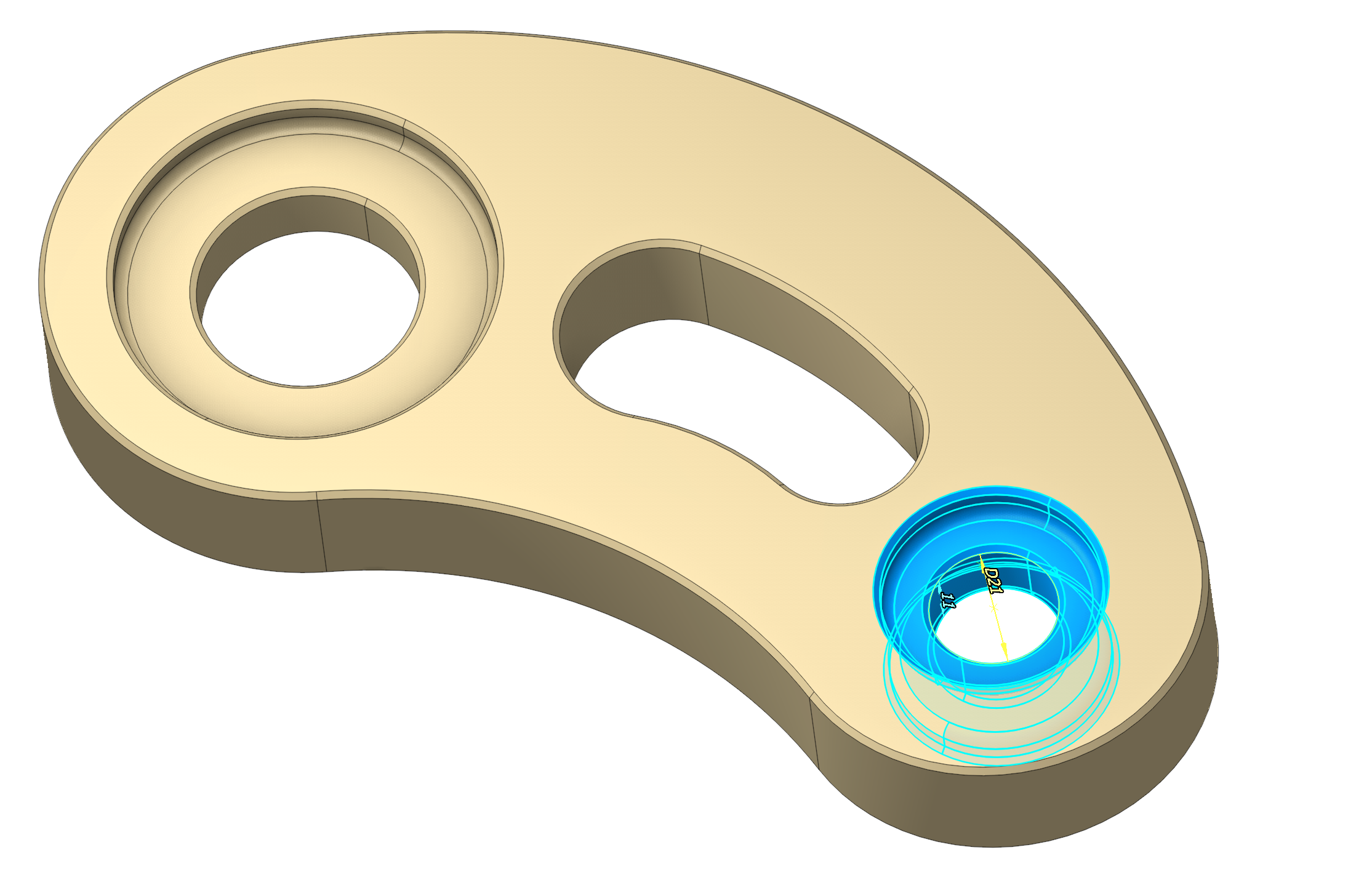

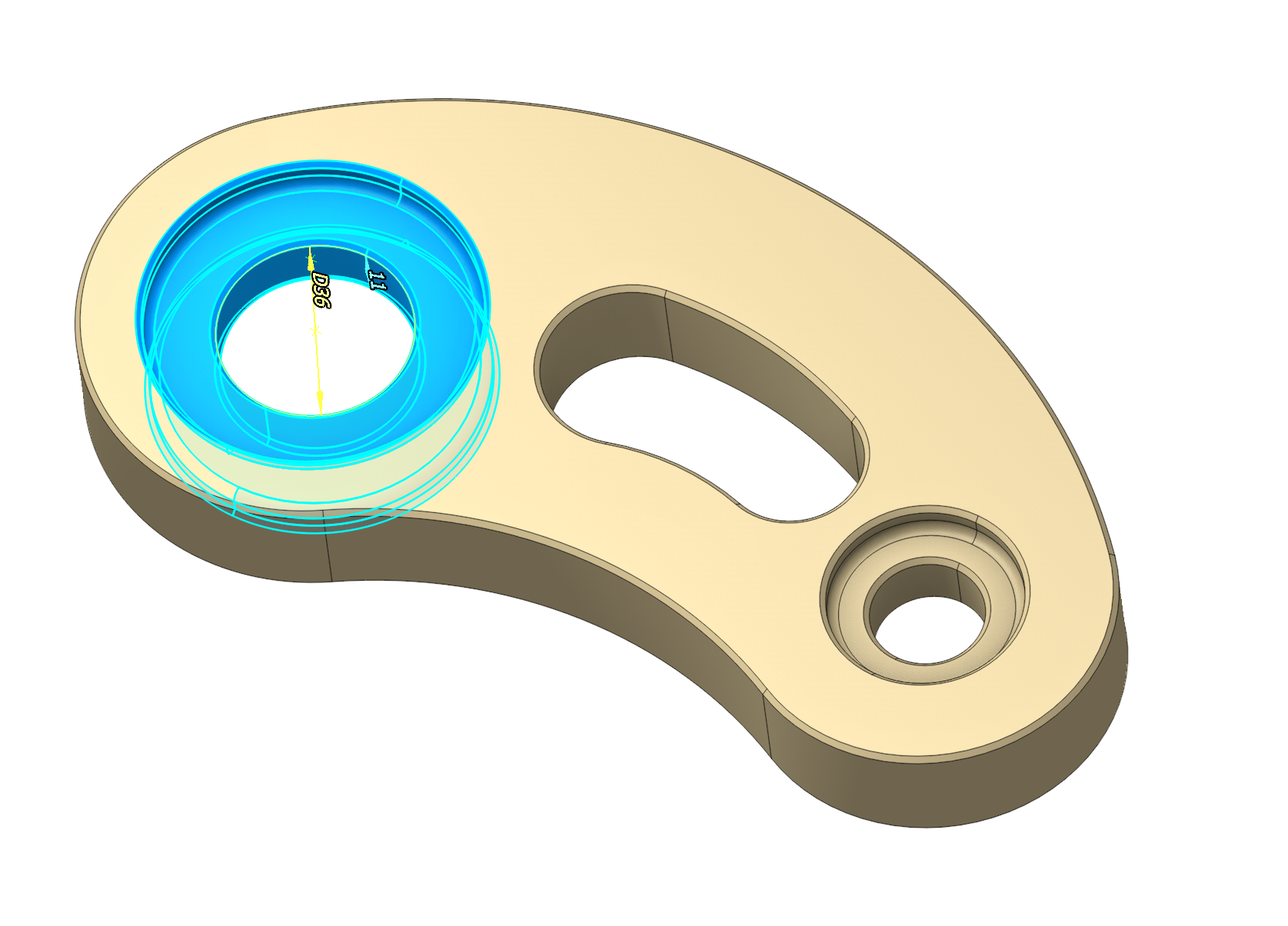

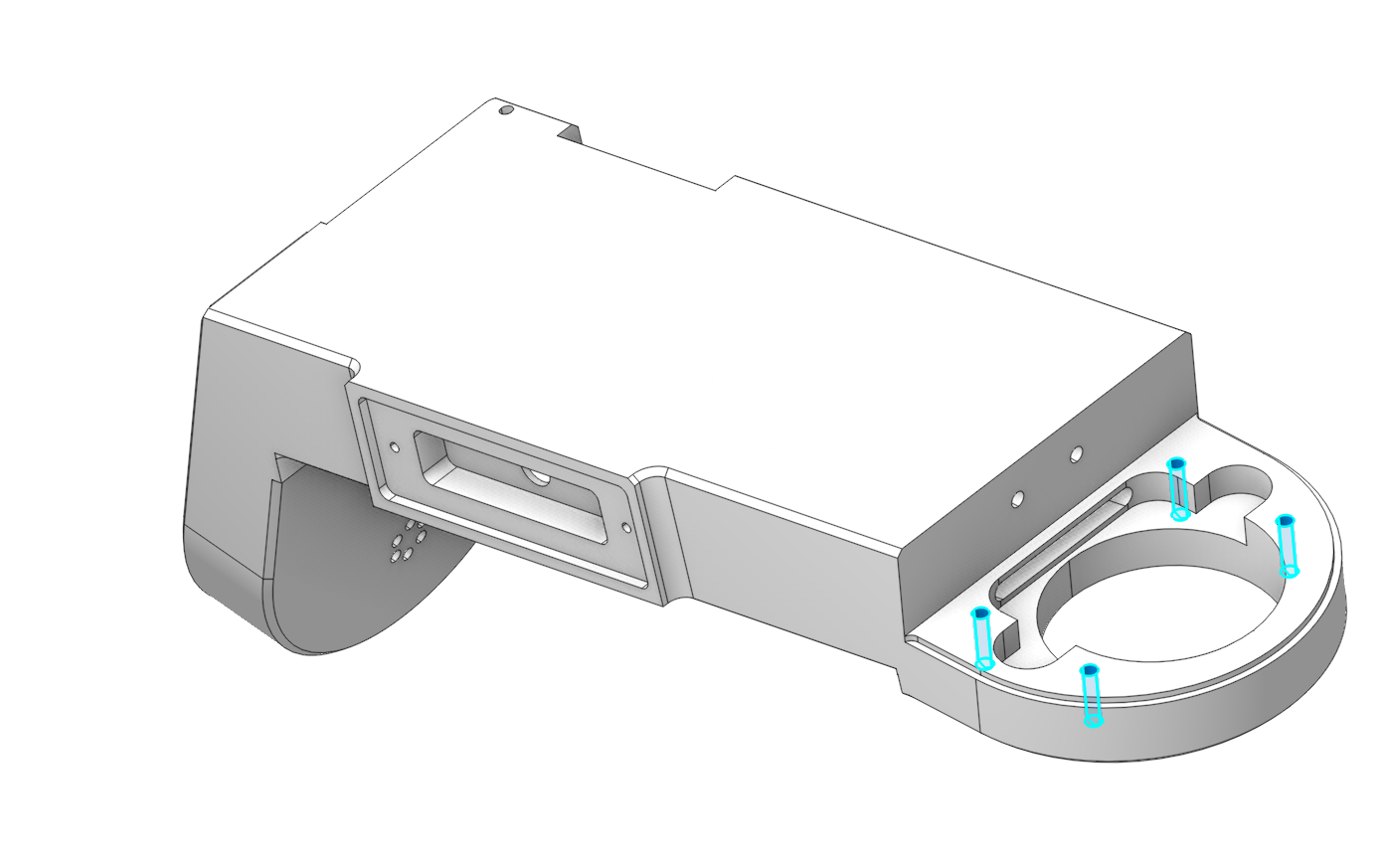

• Double click on an internal cylindrical face or hole automatically selects all the inner cylinders with the same diameter.

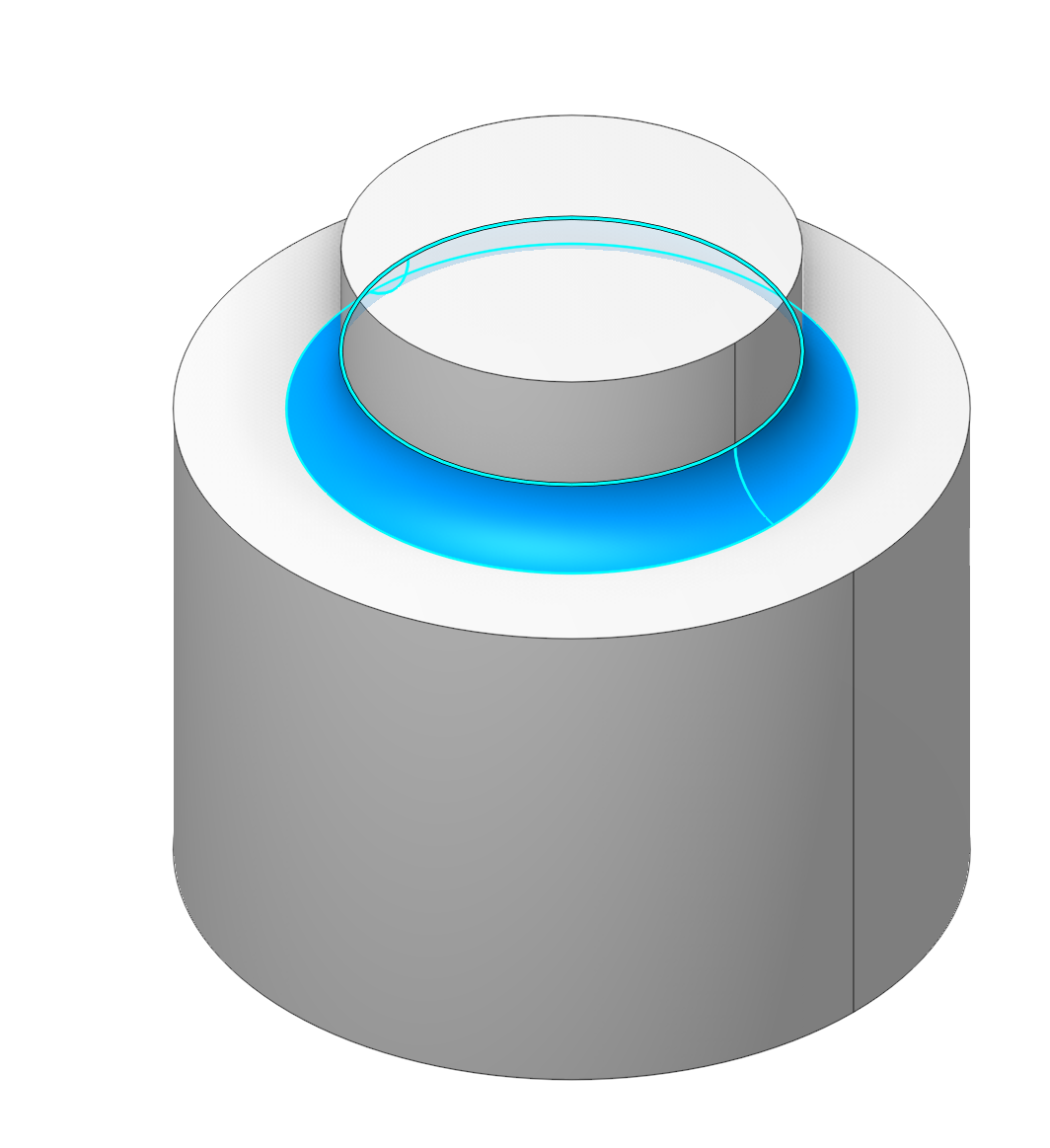

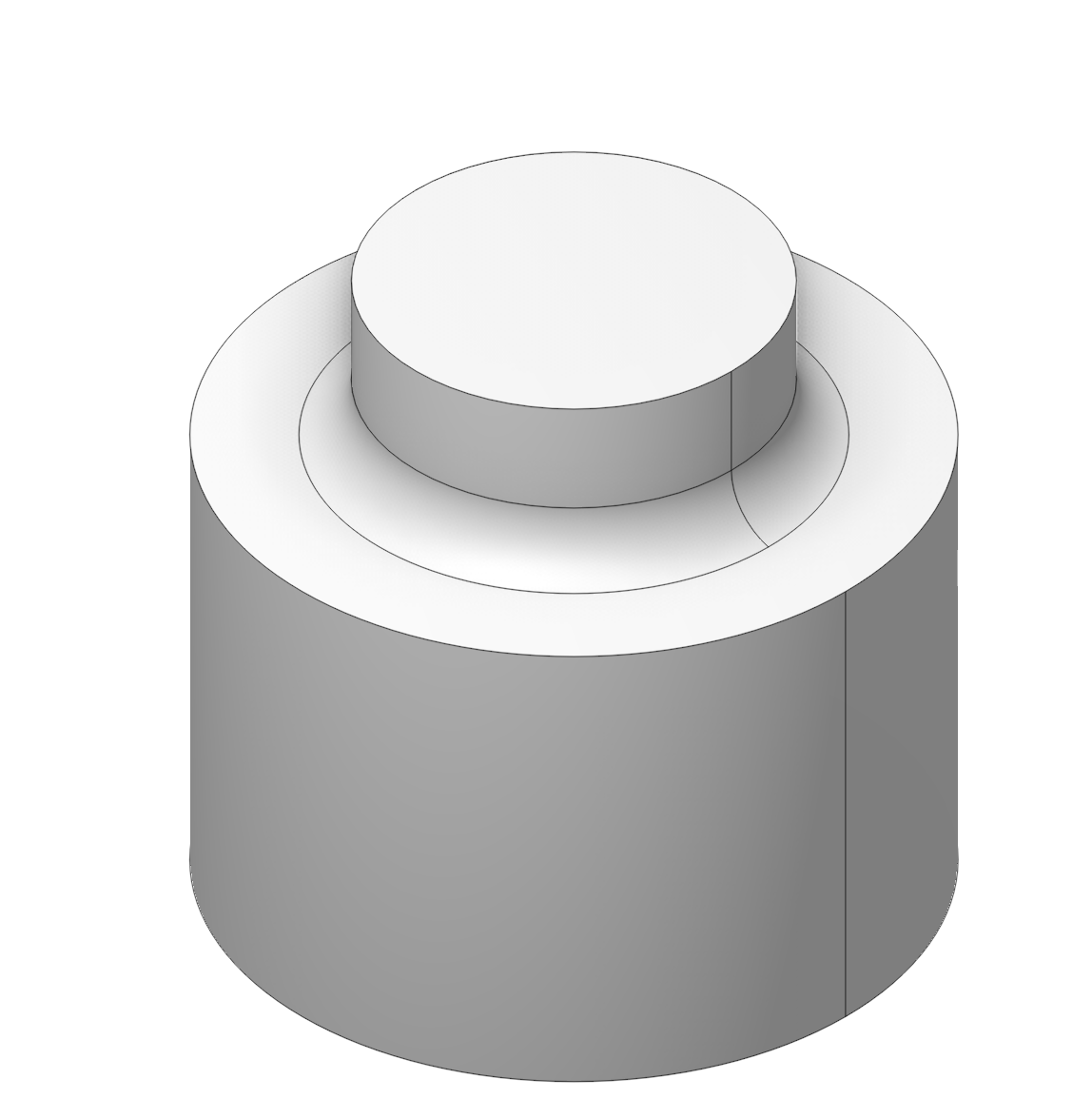

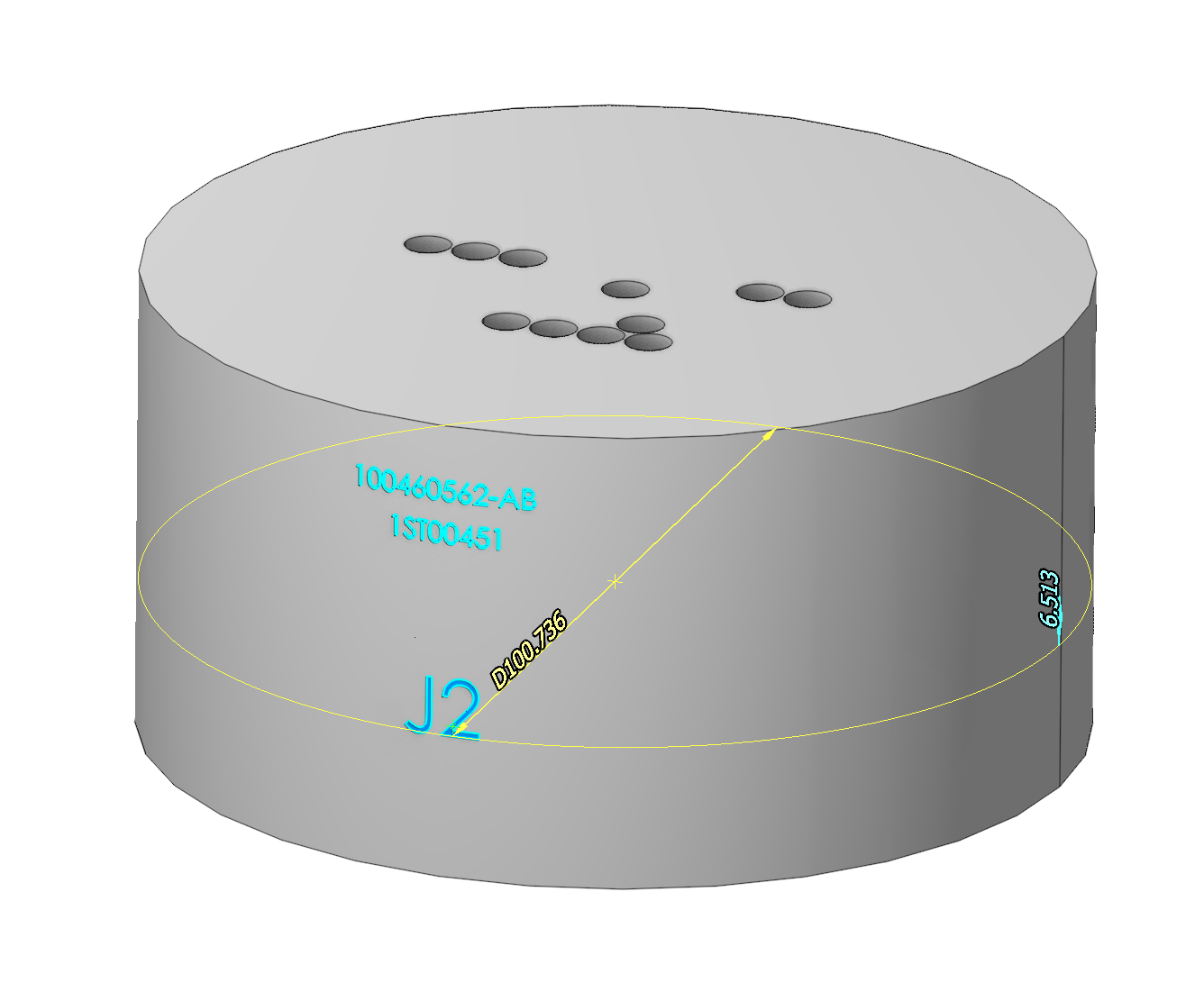

• Double click on an external cylindrical face automatically selects all cylindrical faces with the same diameter and same axis.

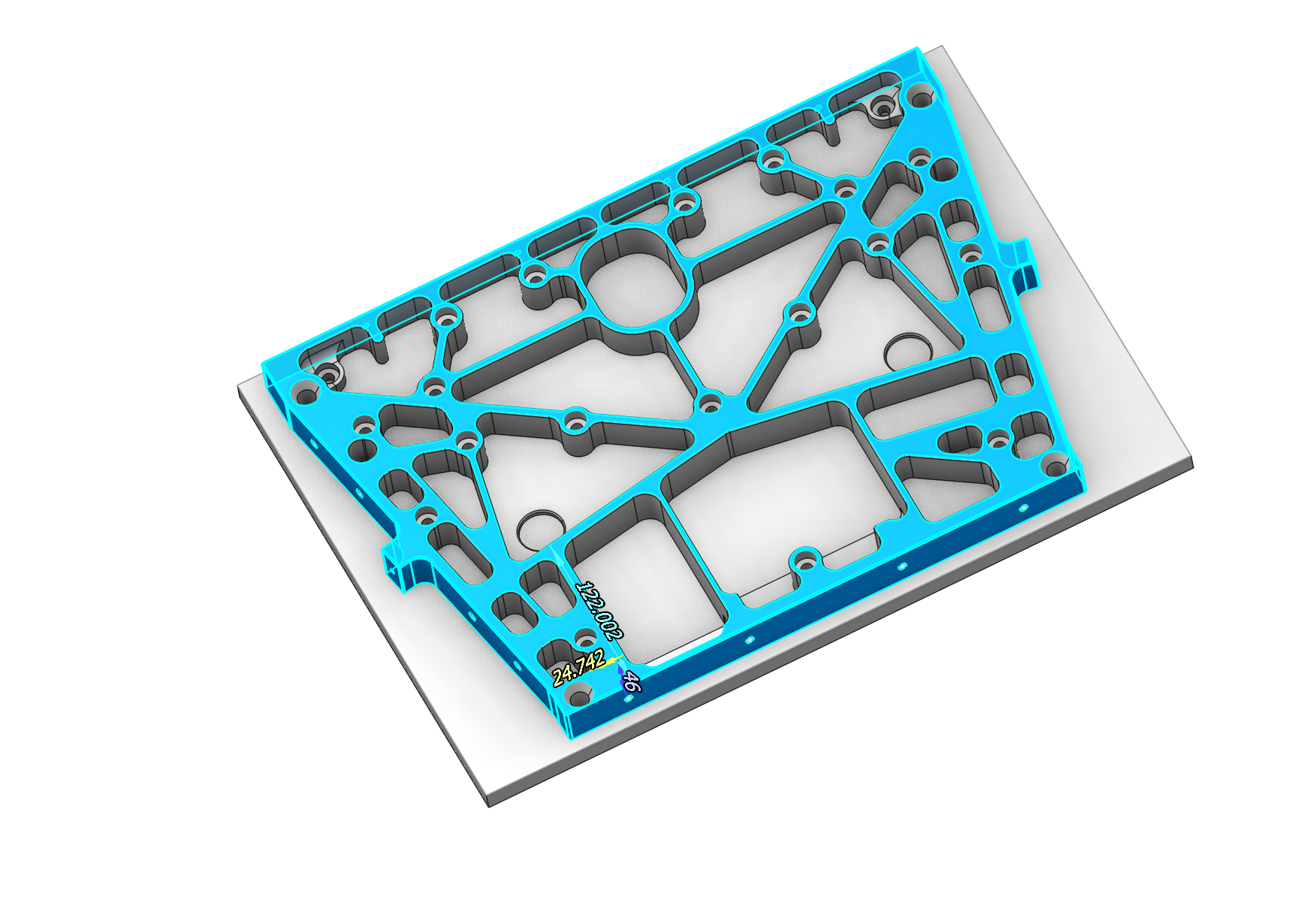

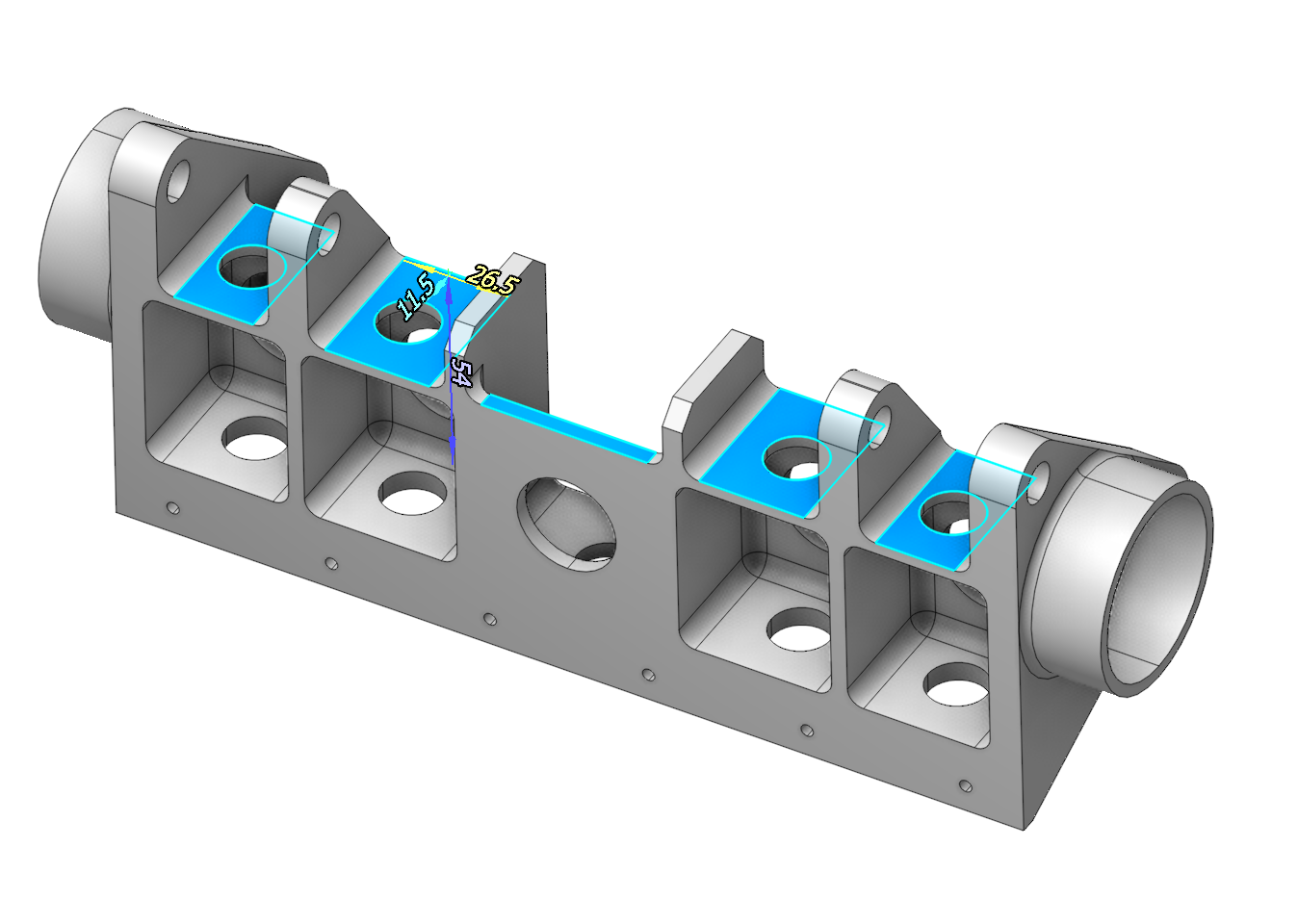

• Double click on a planar face automatically selects all coplanar faces.

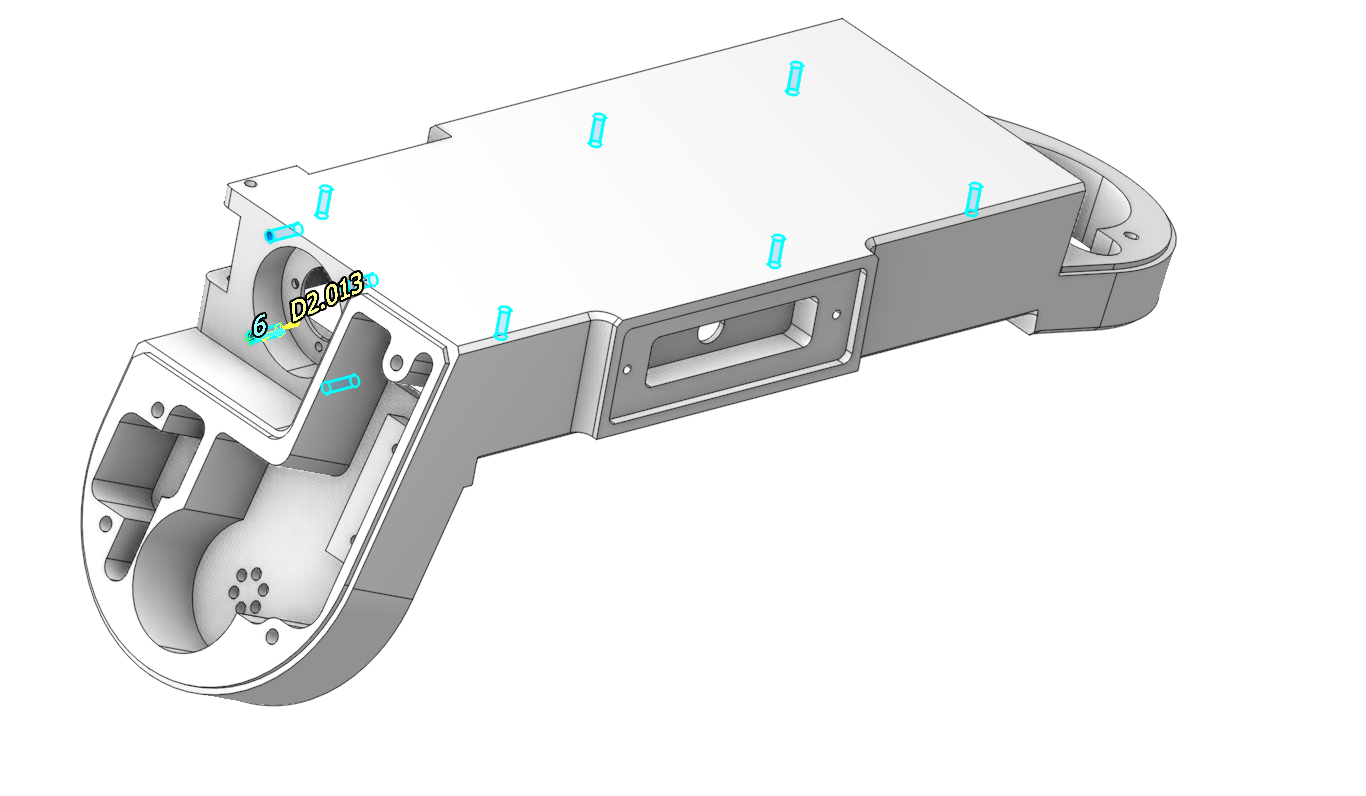

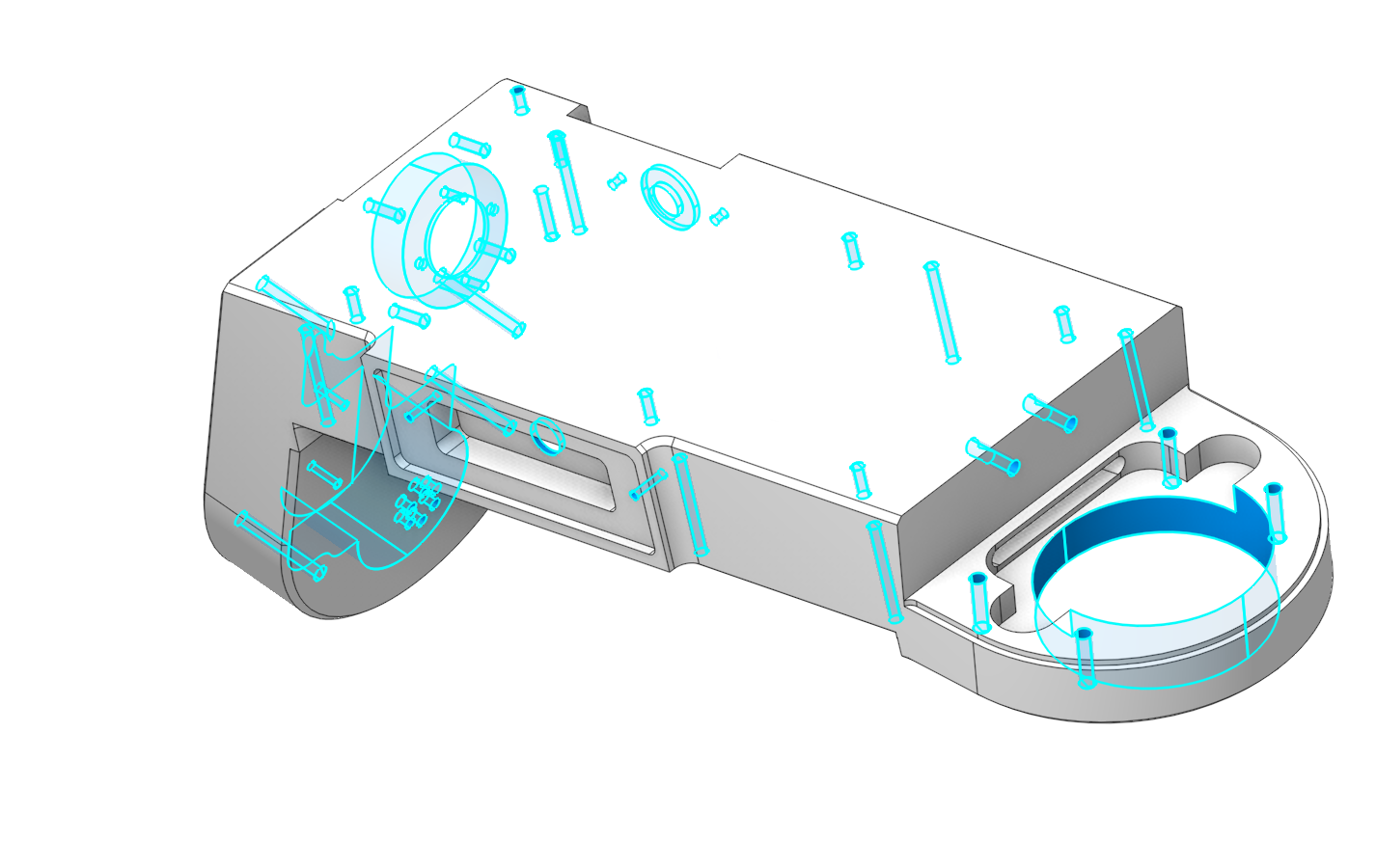

• Selects all internal cylinders with the same diameter in a given plane.

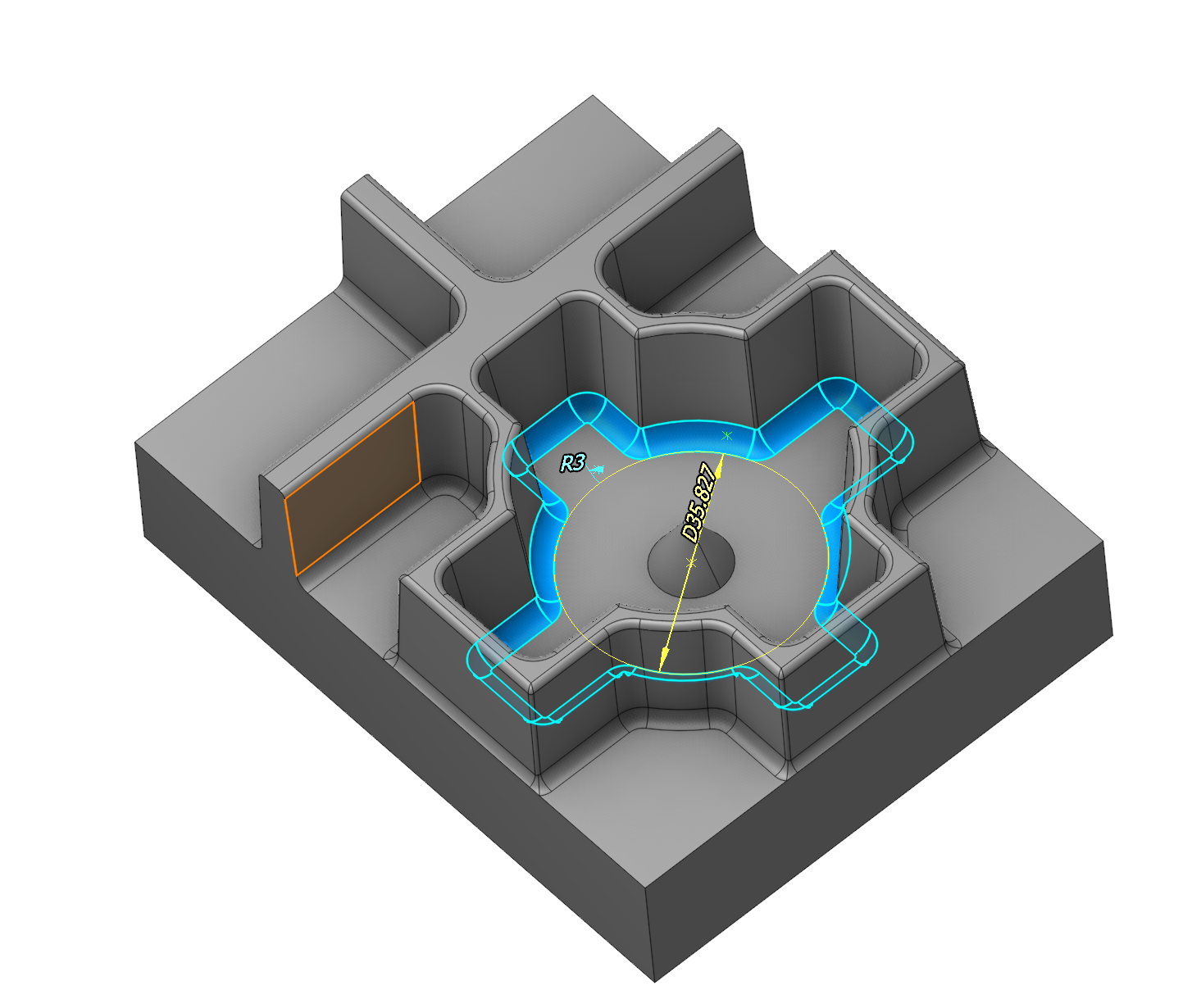

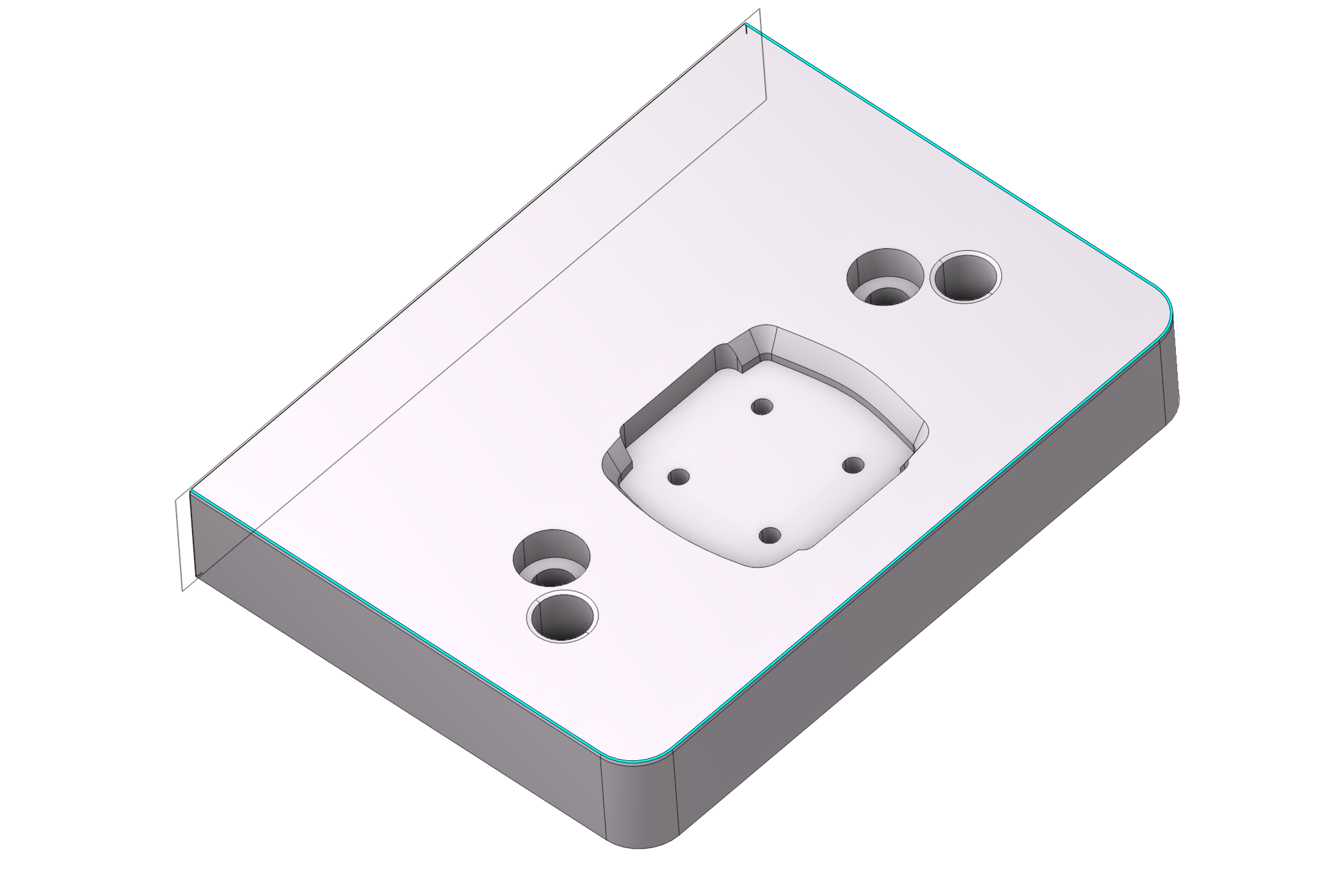

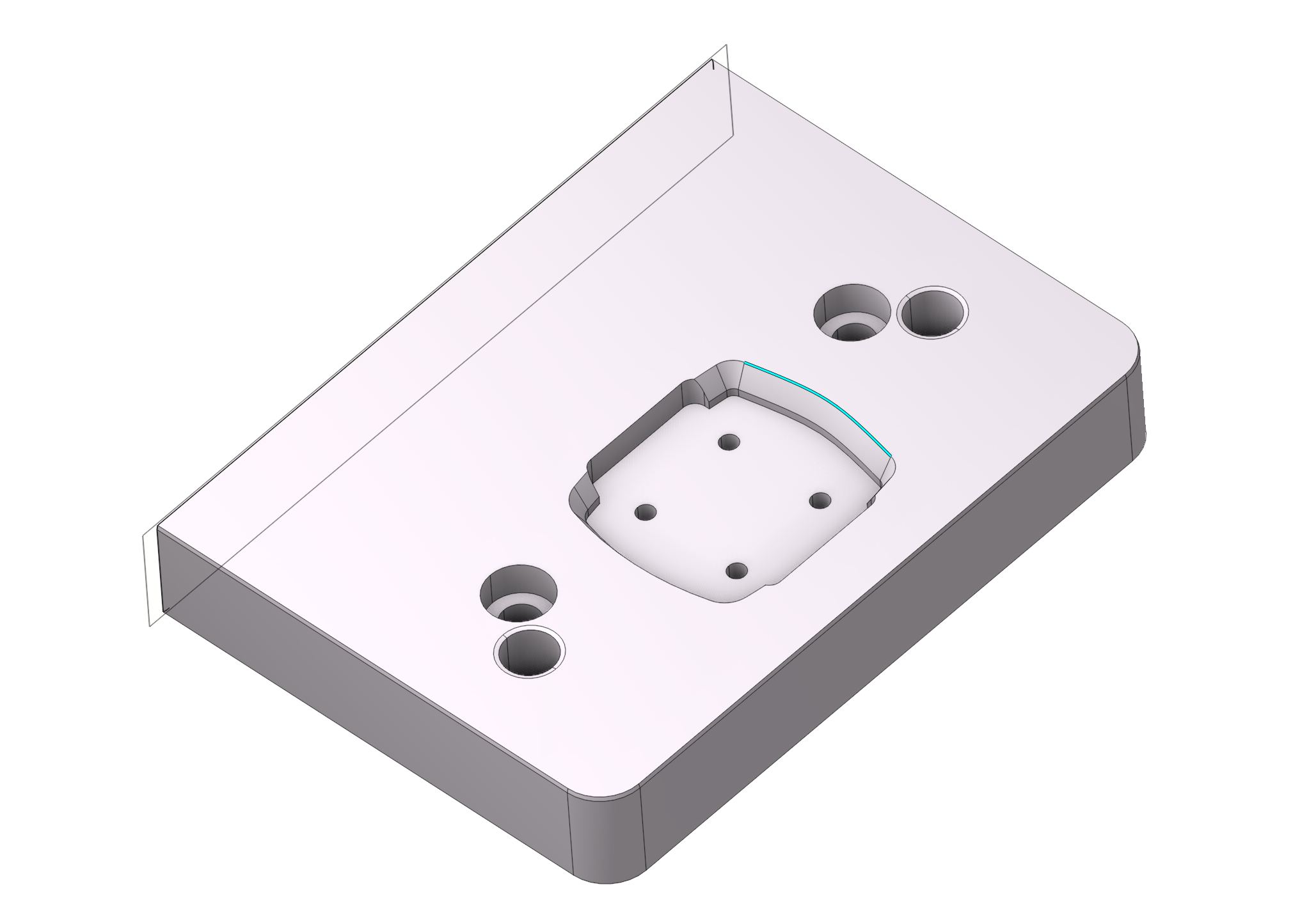

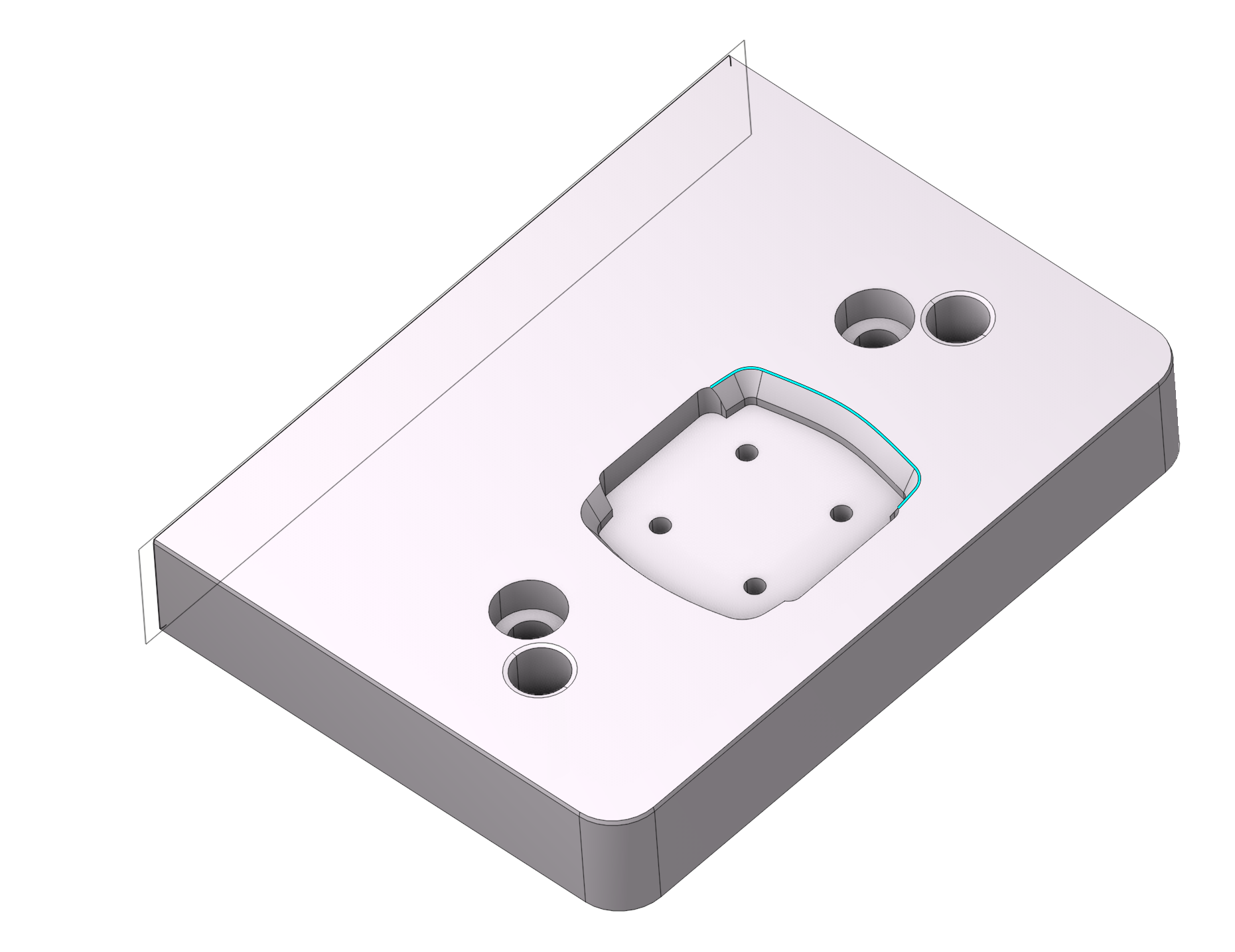

• In the Job assignment 6D contour allows you to select edges similar in size

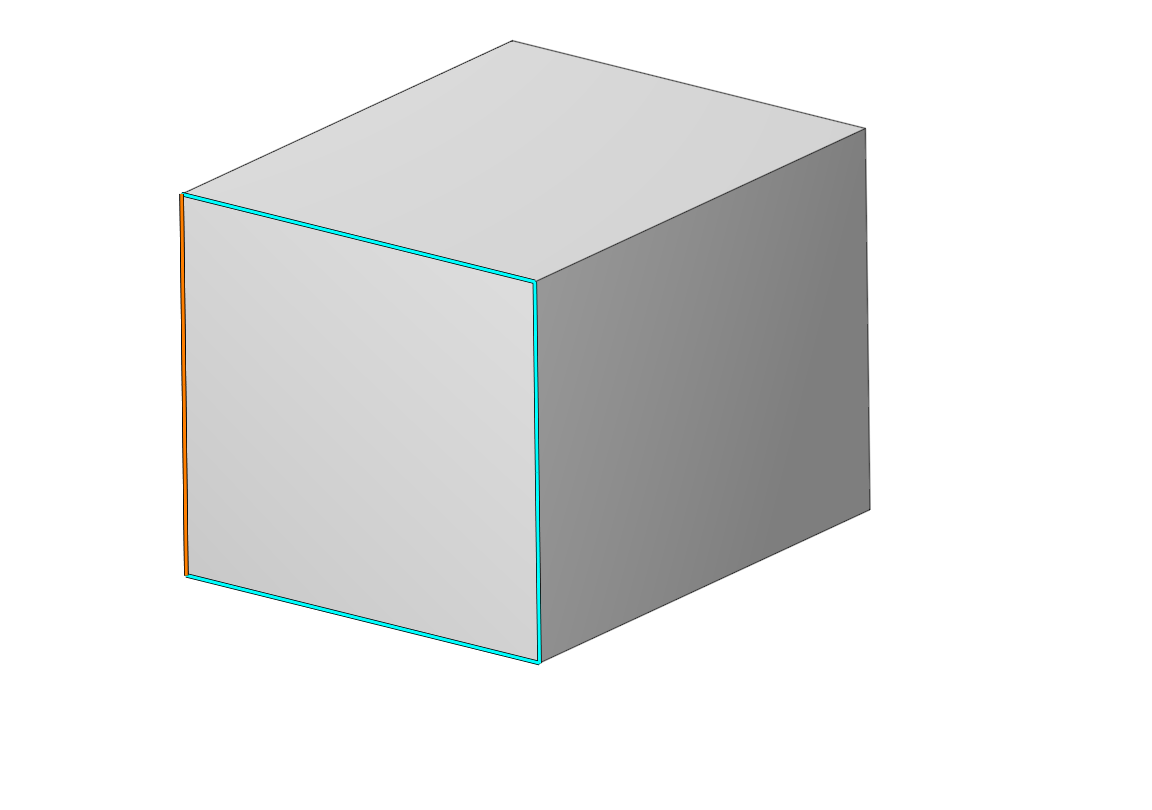

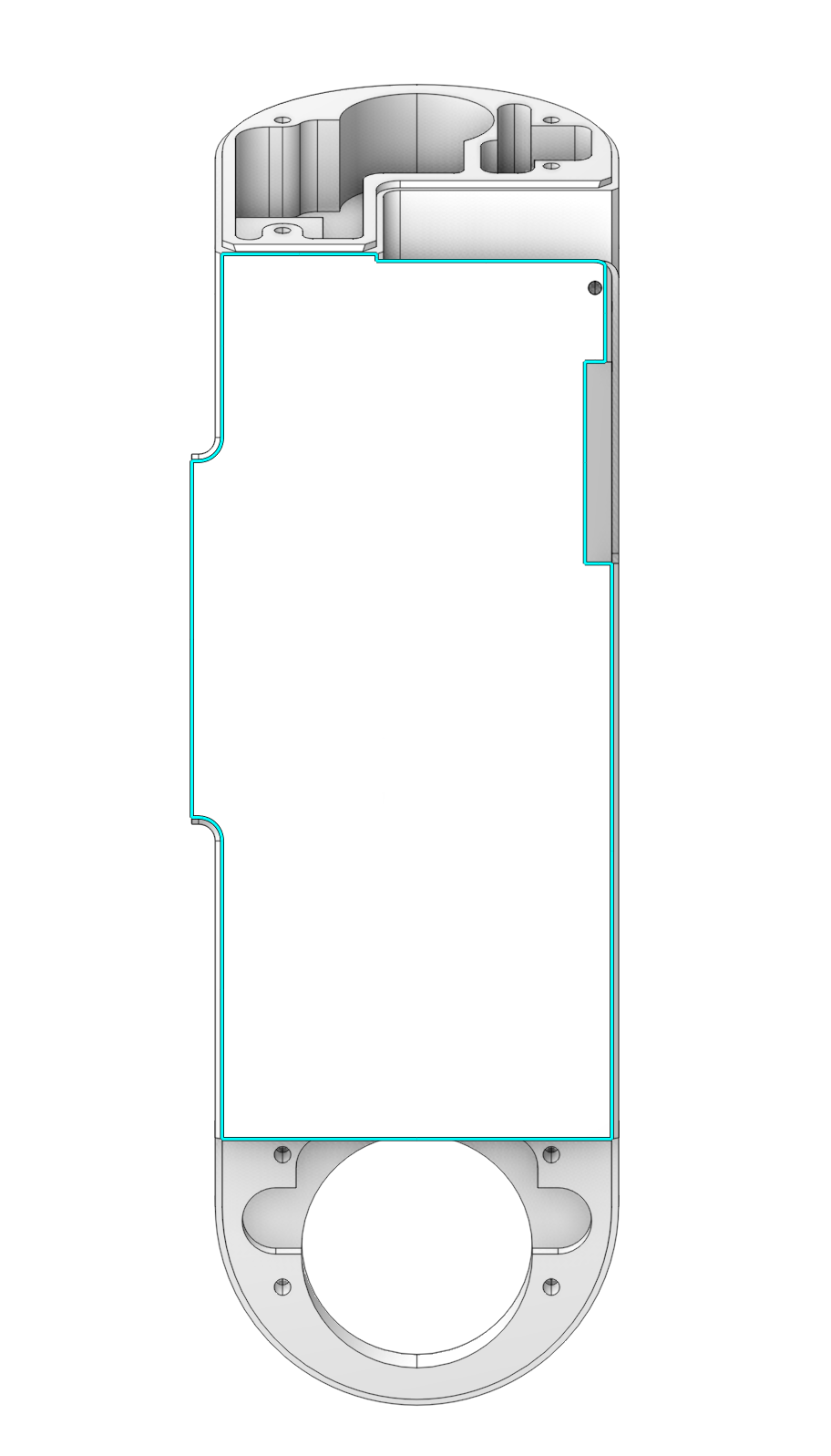

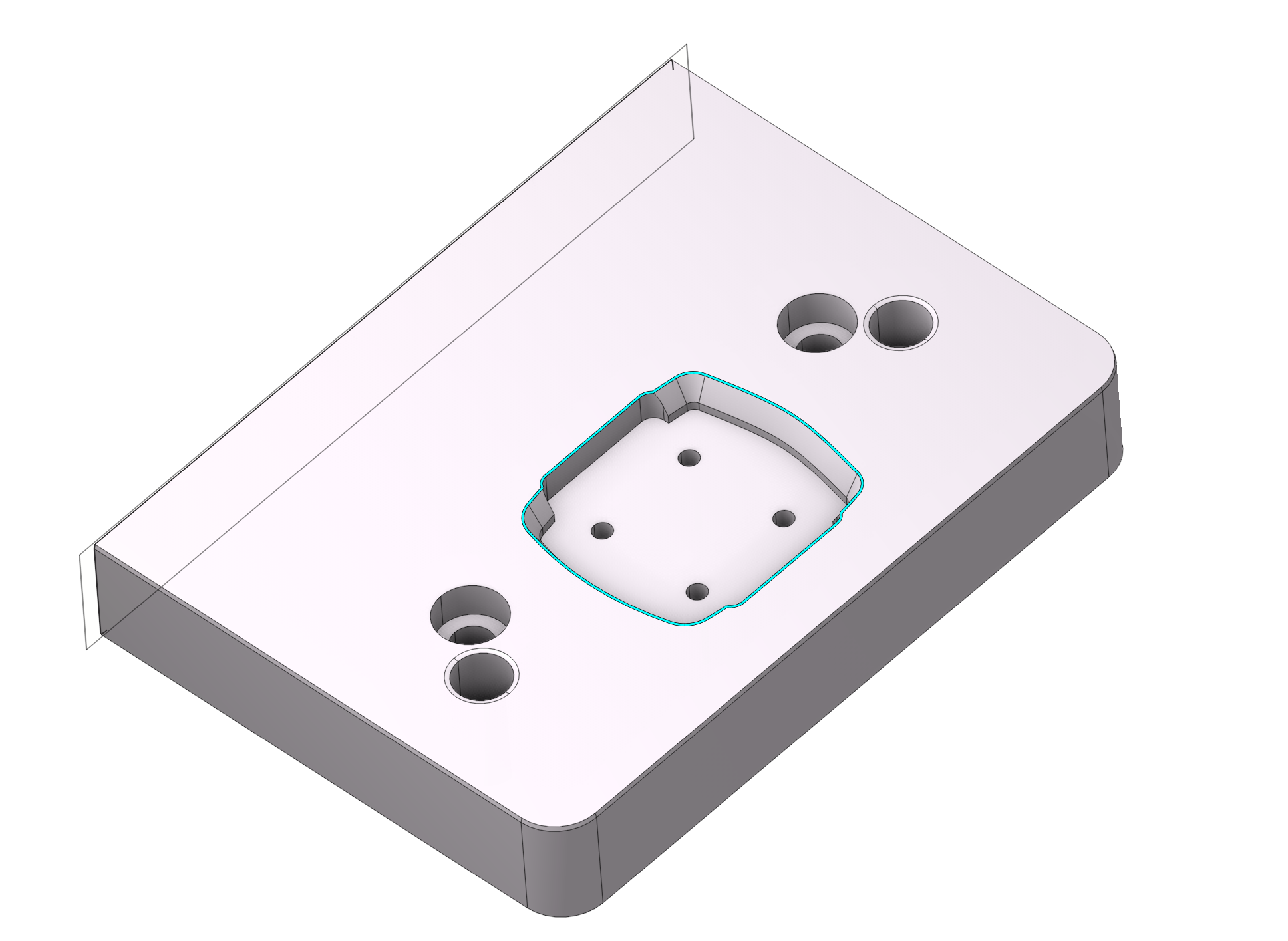

• Allows you to select non-tangential edges (edges are selected depending on the position of the part in the graphics window)

In addition to the selected elements, a set of context filters is available for more flexible use of the functionality.

Basic geometric elements of selection:

• Fillet

• Chamfer

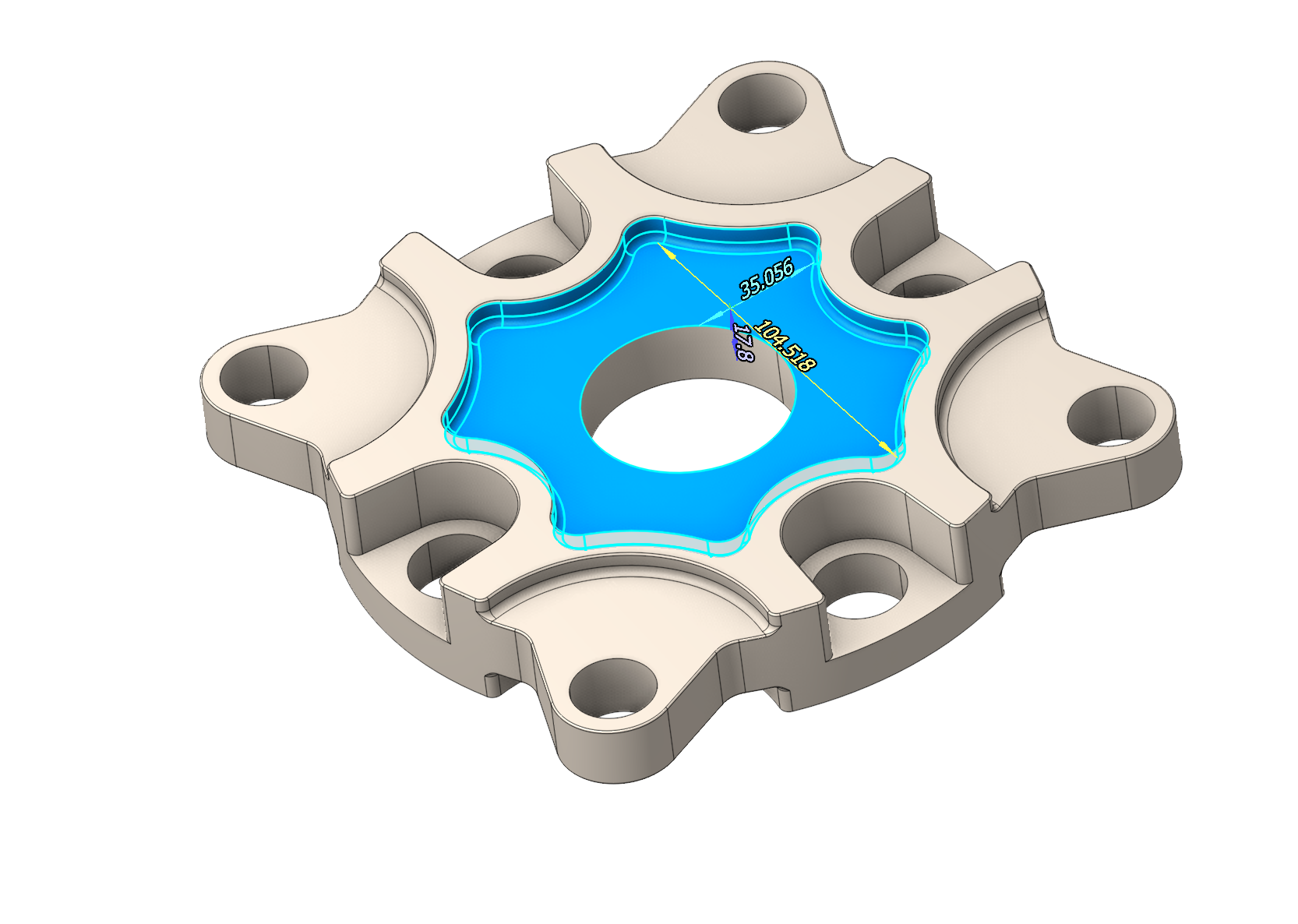

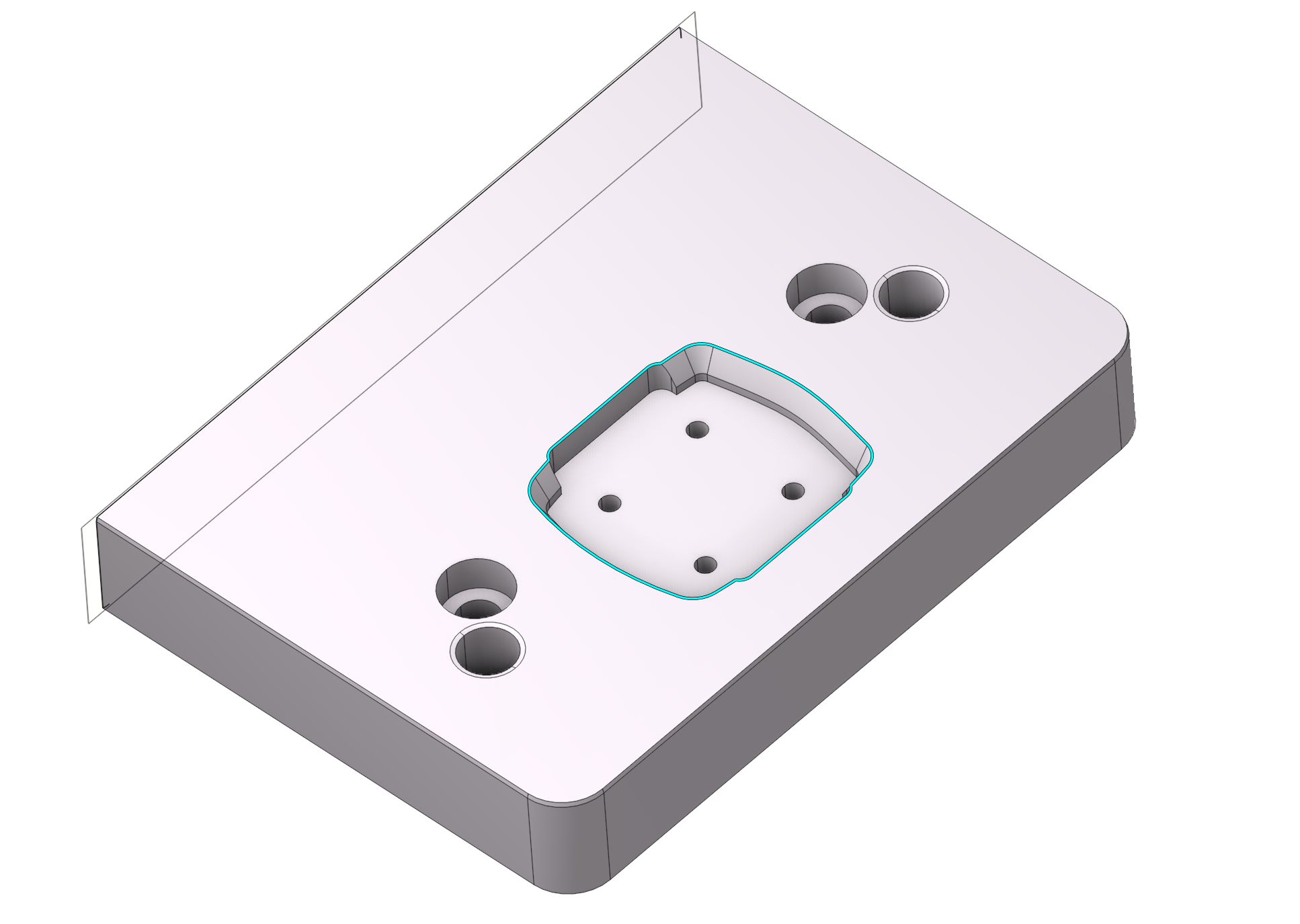

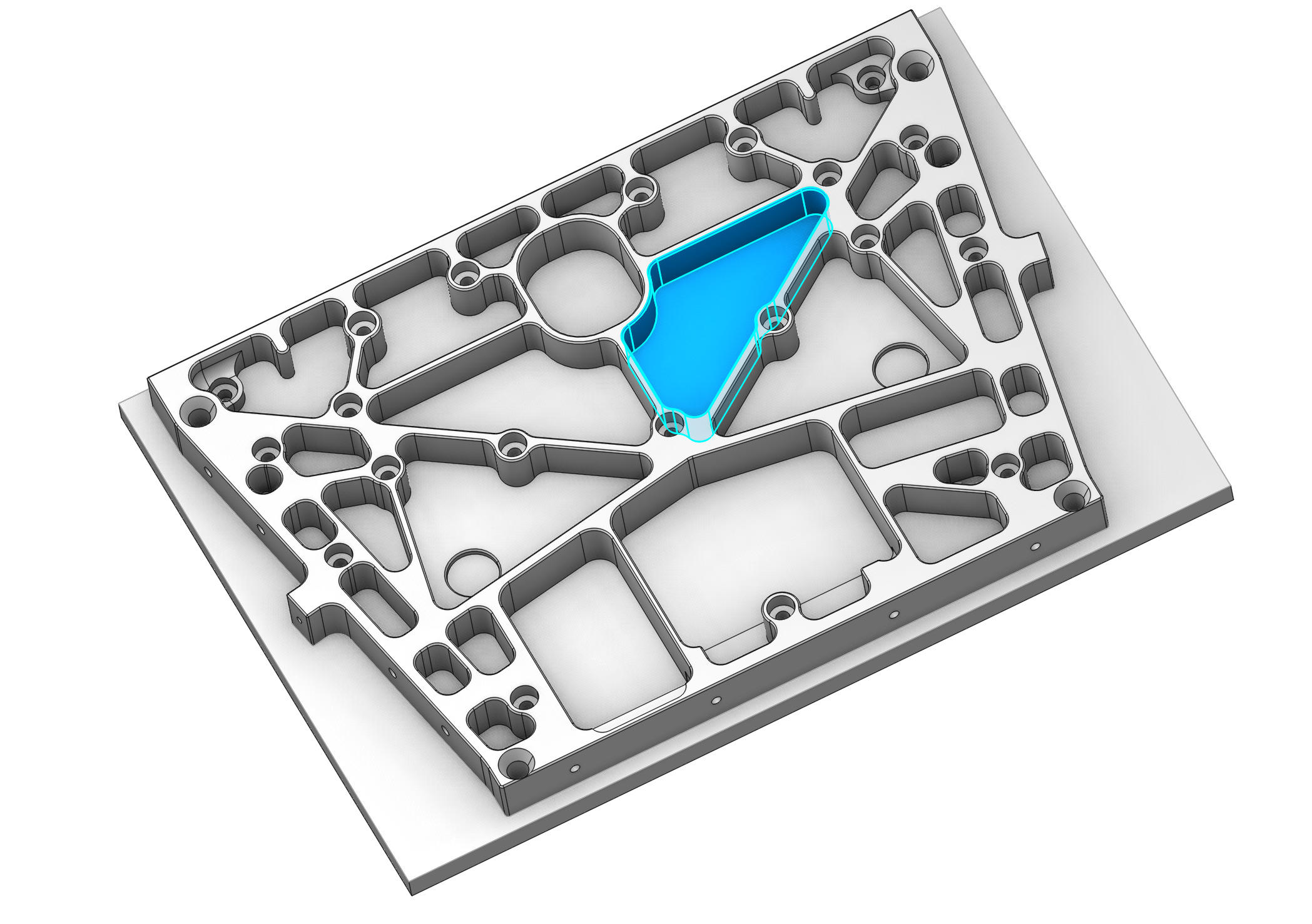

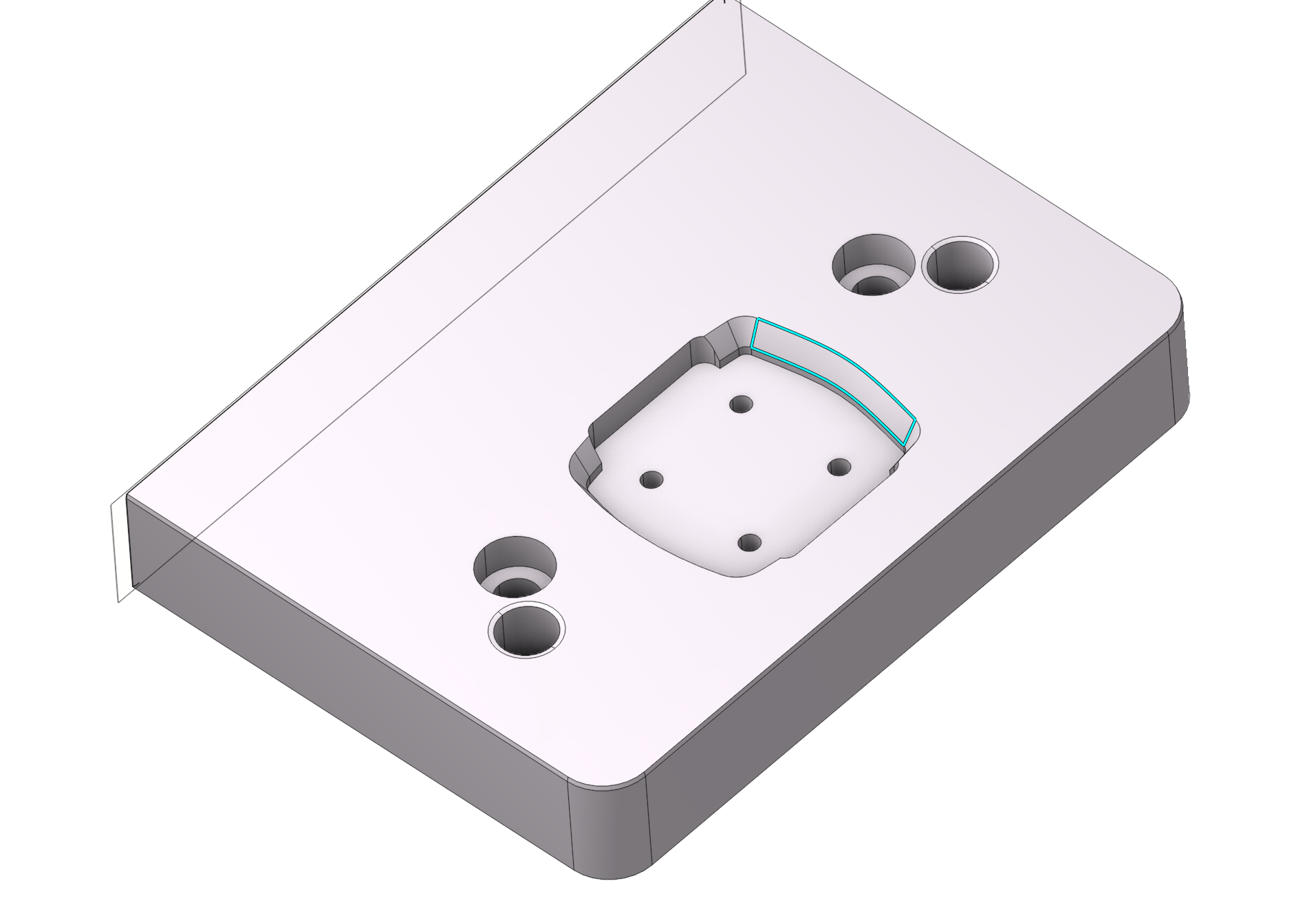

• Pocket (You need to select the bottom of the pocket)

• Side

• Boss (You need to select the top plane of the boss)

• Smooth (Smoothly mating surfaces)

• Hole

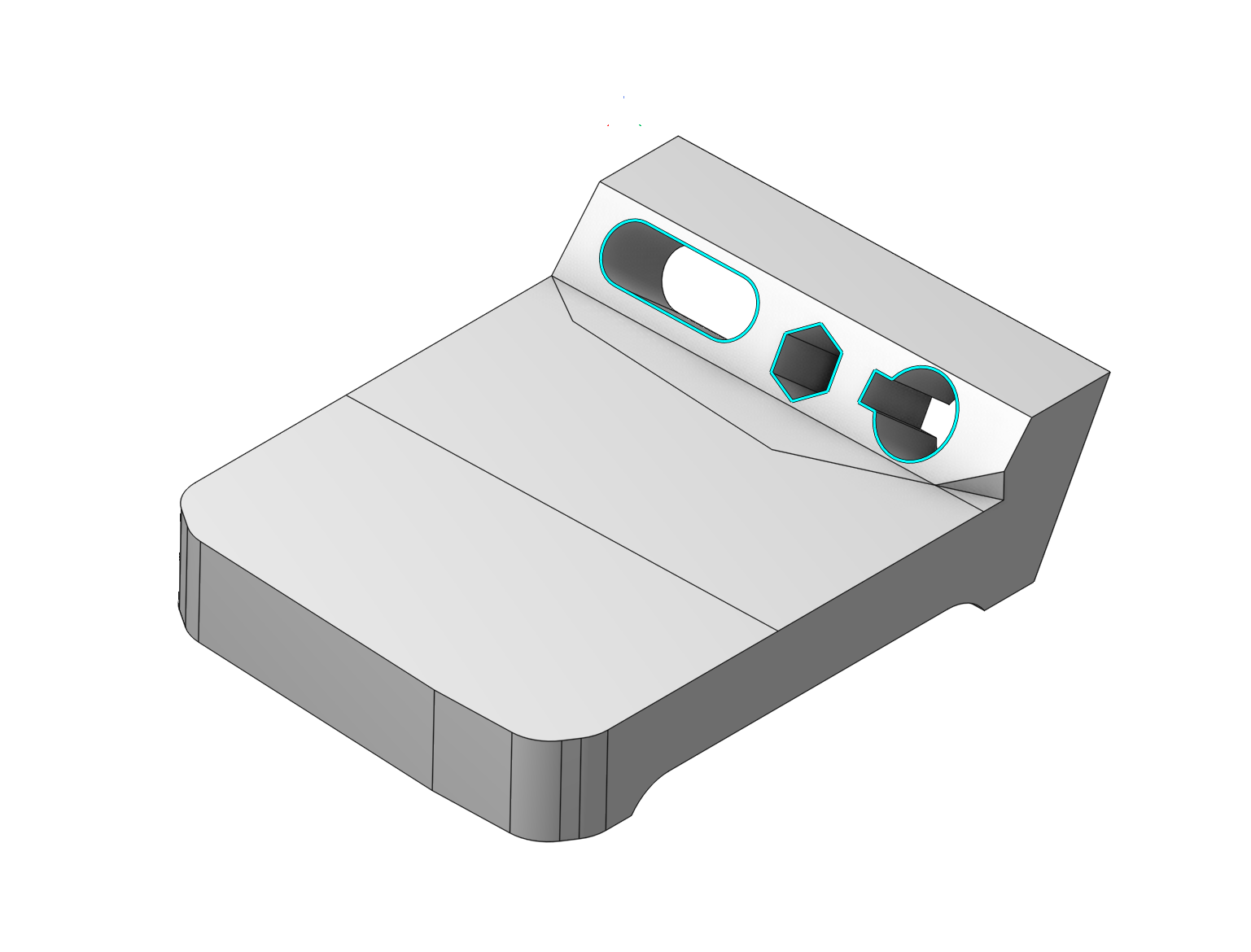

When choosing holes, there are several filters:

• by shape

• Plane and shape

• Outer loop

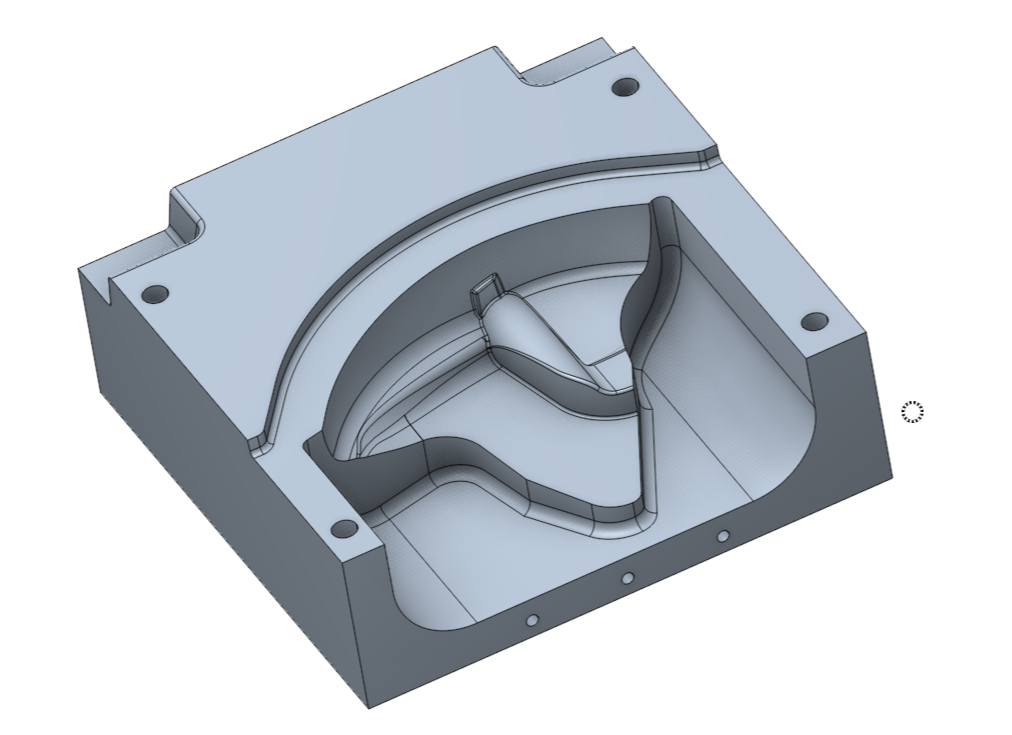

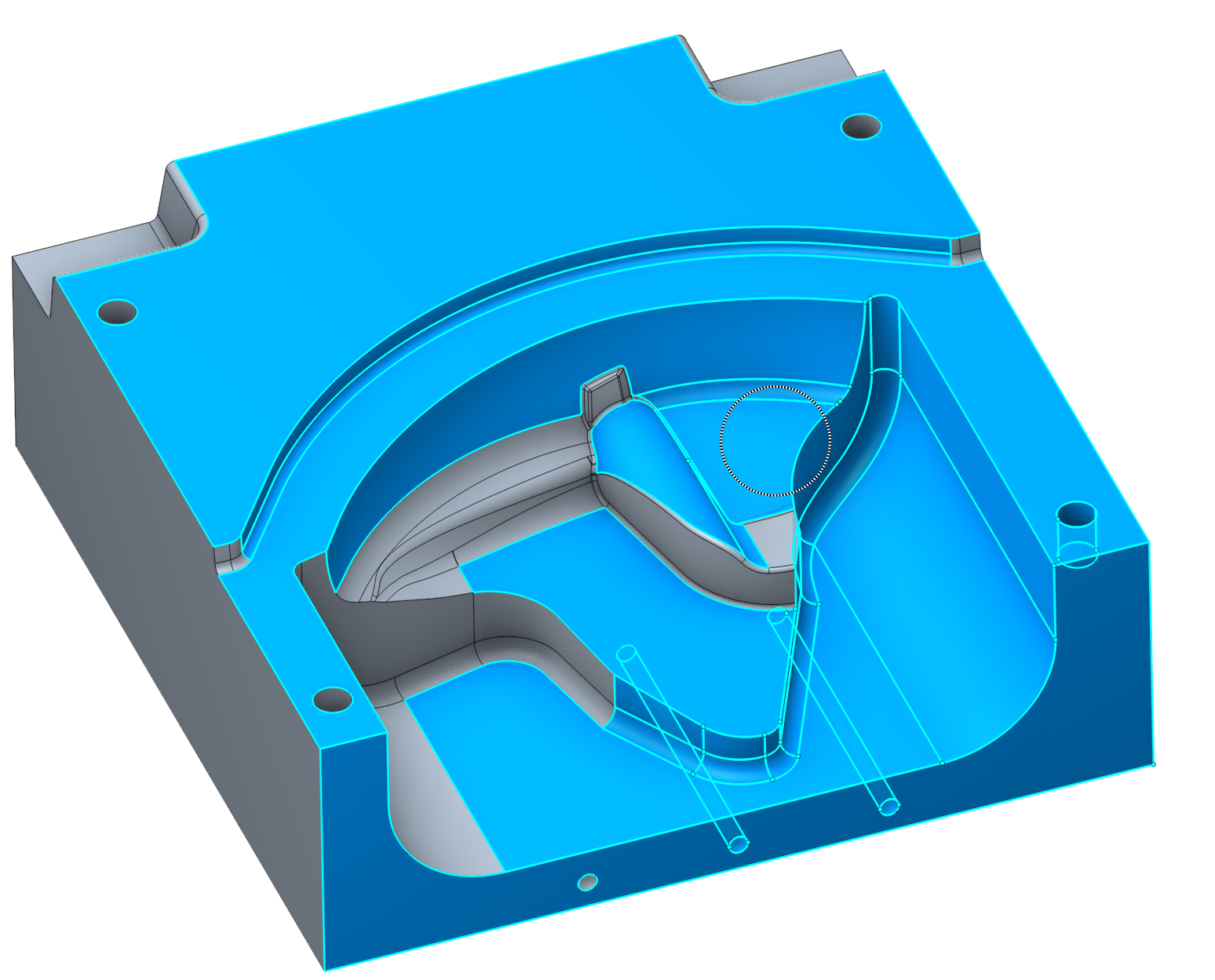

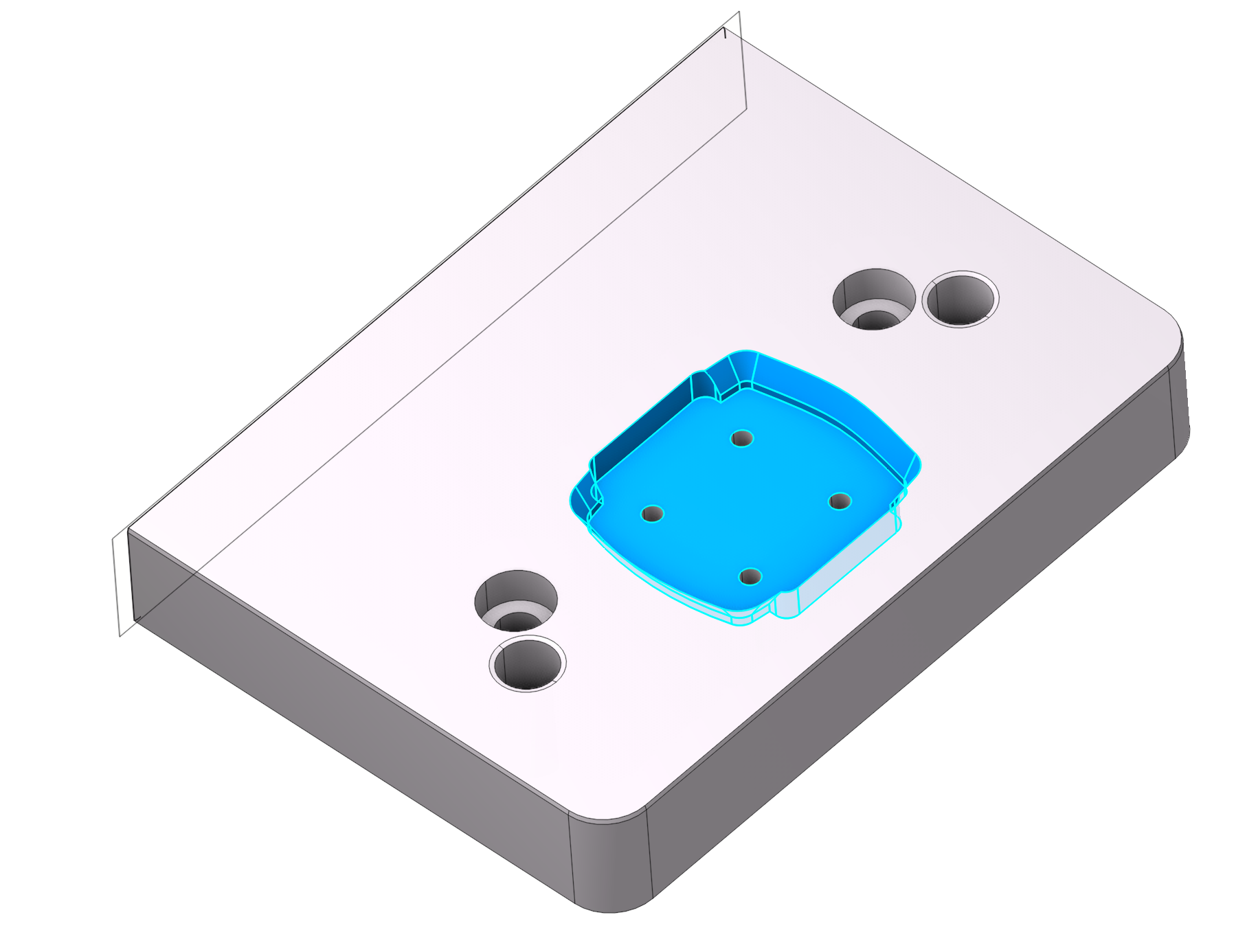

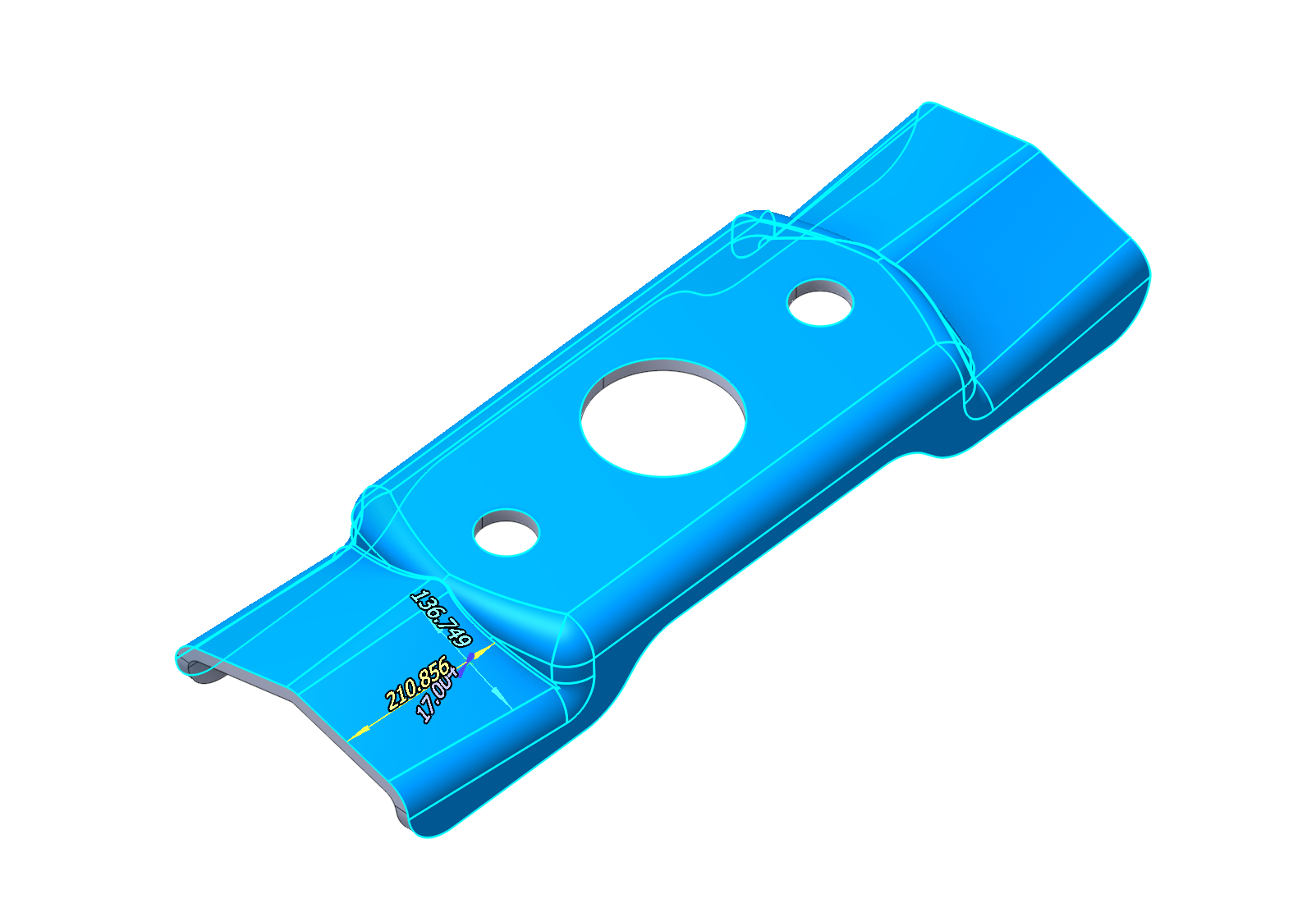

To disperse the surfaces, hold Ctrl+Shift + Left-click.

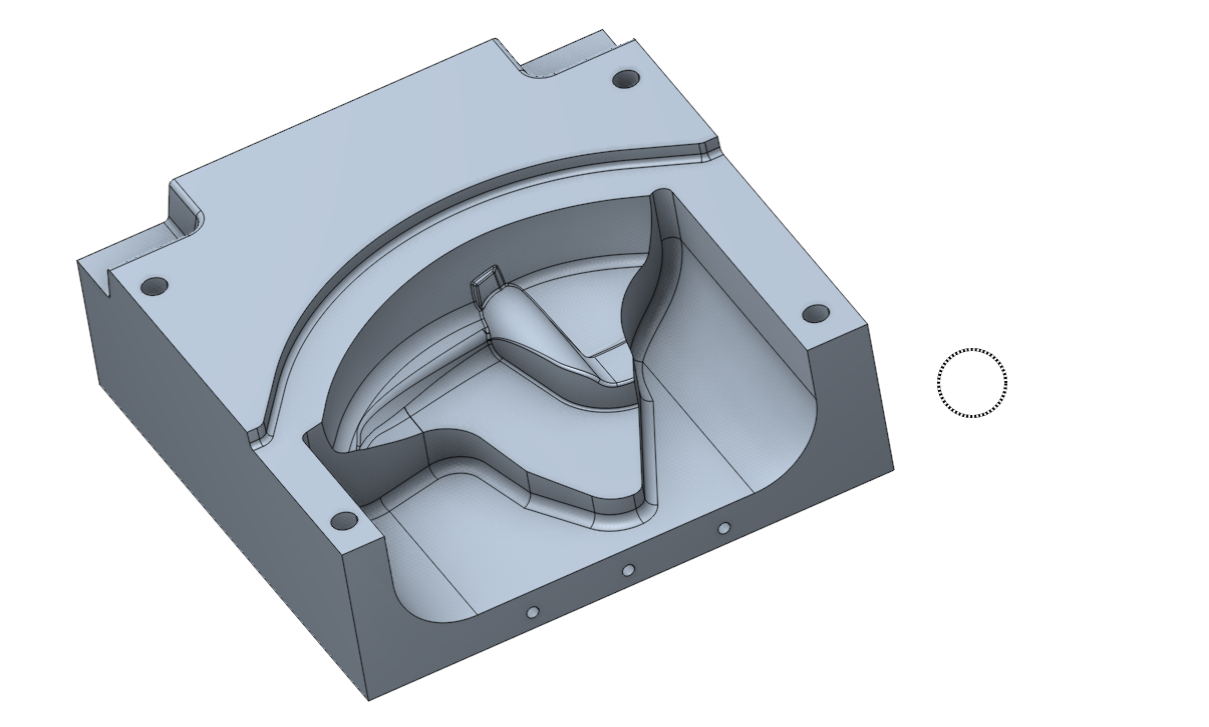

You can change the brush radius. To do this, hold down Shift + Ctrl and rotate the mouse wheel up or down.
