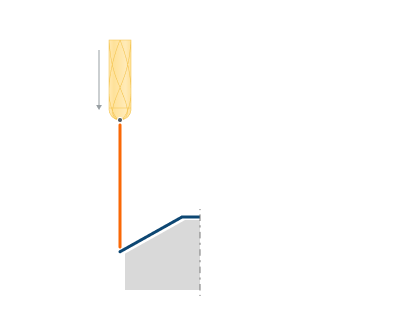

Off. The Engage and Retract toolpath parts is not generated.

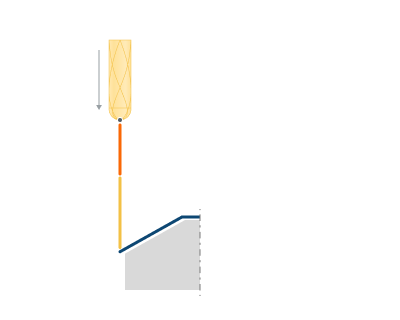

Vertical. The engage is performed vertical to the first point of the work pass.

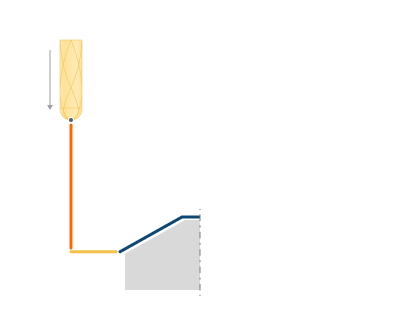

Horizontal. The engage is performed perpendicular to the tool axis to the first point of the work pass

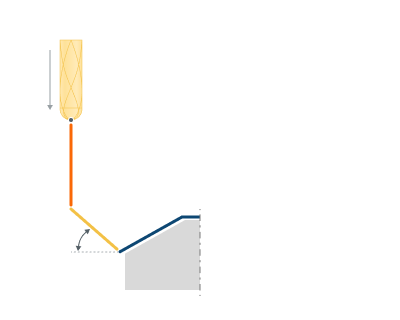

Angle to Z Axis. The engage is performed by angle to vertical to the first machining point

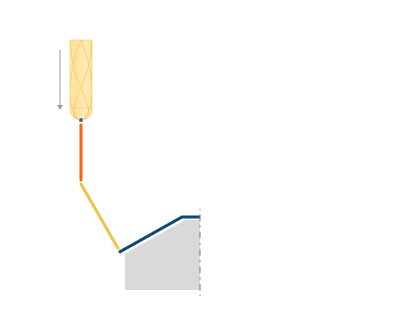

By Normal. The engage is performed along the normal to surface at the first point of the work pass

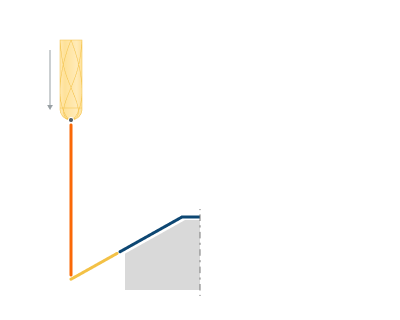

By Tangent. The engage is performed tangentially to the first machining point

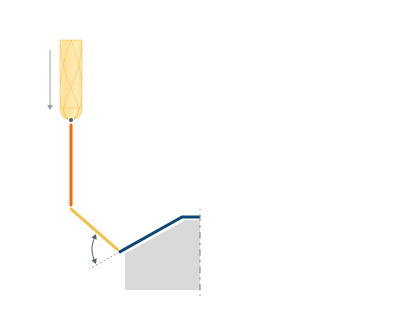

Angle to Tangent. The engage is performed by angle to tangent to the first machining point

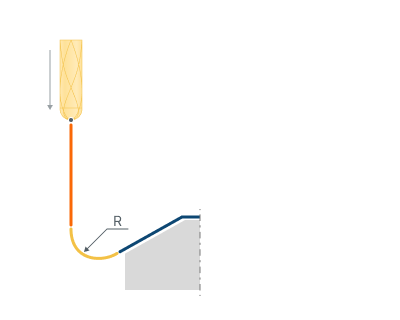

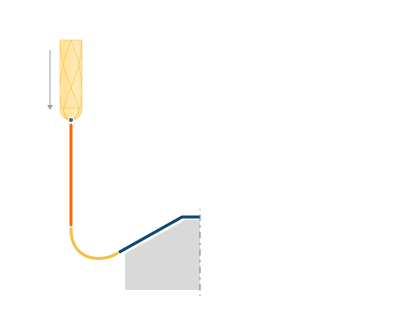

By Arc. The system adds an arc to the first point on the curve using the defined radius.

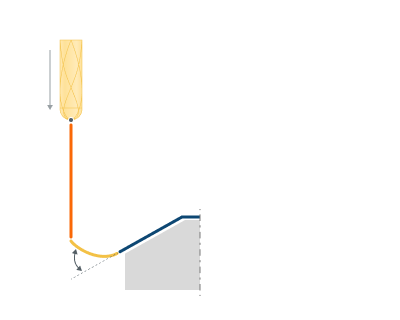

By Arc (Angle). The system adds an arc to the first point on the curve using the defined radius. The arc angle is constructed from the tangent of the work pass.

Depending on the engage, it becomes possible to control additional parameters:

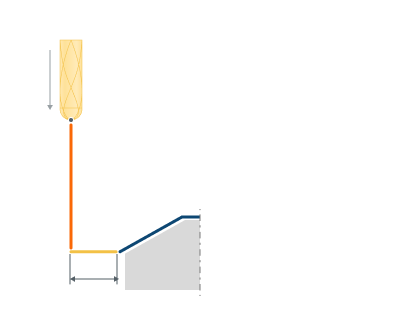

Length (Radius). Changes the length

Angle. Changes the vertical angle

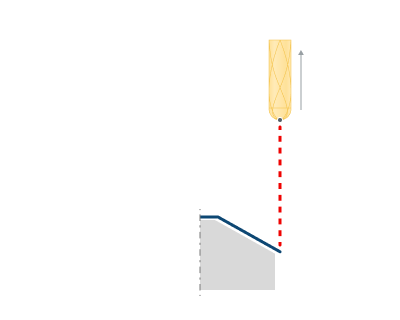

Off. The Engage and Retract toolpath parts is not generated.

Vertical. The retract is performed vertical to the last point of the work pass.

Horizontal. The retract is performed perpendicular to the tool axis to the last point of the work pass

Angle to Z Axis. The retract is performed by angle to vertical to the last machining point

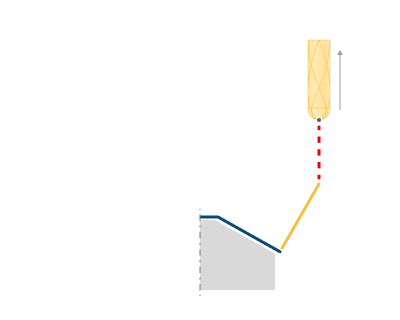

By Normal. The retract is performed along the normal to surface at the last point of the work pass

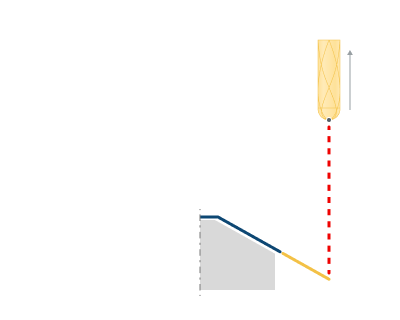

By Tangent. The retract is performed tangentially to the last machining point

Angle to Tangent. The retract is performed by angle to tangent to the last machining point

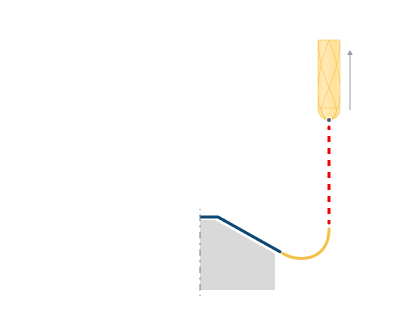

By Arc. The system adds an arc to the last point on the curve using the defined radius.

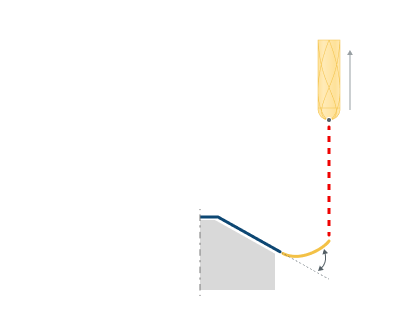

By Arc (Angle). The system adds an arc to the last point on the curve using the defined radius. The arc angle is constructed from the tangent of the work pass.

Depending on the engage, it becomes possible to control additional parameters:

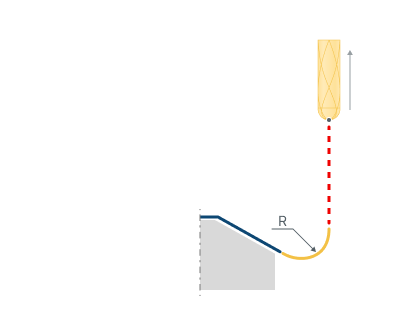

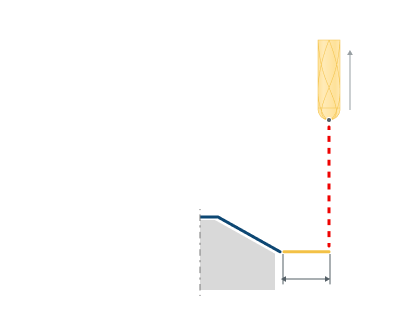

Length (Radius). Changes the length

Angle. Changes the vertical angle
