This group defines the settings for cutting in or transitions between areas.

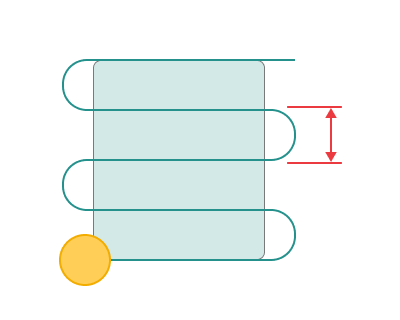

Short link max distance.
Click here to expand..
Sets the maximum distance at which links are made by the short link type.
Short link type.
Click here to expand..

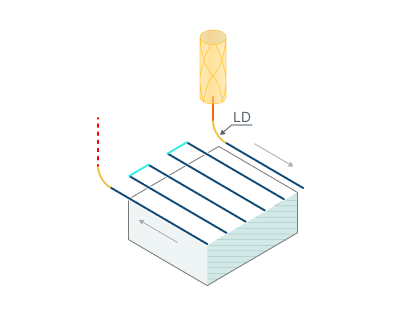

Direct. Links are made by the shortest distance.
LD - Leads
Retract-engage. Links are set by Leads and shortest distance
LD - Leads

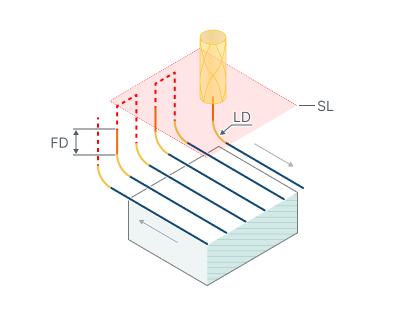

Via safe plane.
Links on the return: 1.Leads (LD) 2.Safe level (SL) Movement on the plane of safety Links on the approach: 1.Safe level (SL) 2. Feed distance (level) (FD) 3. Leads (LD)
